CommScope Valuline Installation Instructions Manual

Installation Instructions

Valuline™ 2ft 80GHz Antenna mount
assemby, installation & adjustment.
Description.

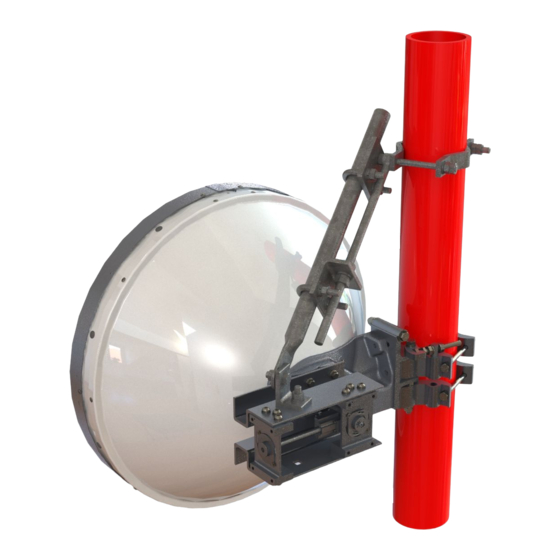

This antenna consists of a 0.6m (2ft) reflector,
shields, radome, attachment rims, feed and offset
tower mount.
The mount is designed to attach the antenna to a
vertical pipe of diameter 50mm to 115mm (1.9" to
4.5"). The mount provides adjustment ranges of ± 15º
fine elevation and ± 180º (± 10º fine) azimuth.
Notice.
The installation, maintenance or removal of antenna
systems requires qualified, experienced personnel.
Andrew installation instructions have been written for
such personnel. Antenna systems should be
inspected once a year by qualified personnel to verify
proper installation, maintenance, and condition of
equipment.
Andrew disclaims any liability or responsibility for the
results of improper or unsafe installation practices.
Description
Main Hazards - Health Effects
Eyes: May cause irritation.
Inhalation: Viscous nature may block breathing passages if inhaled.
Ingestion: May cause diarrhoea.
Skin: For hypersensitive persons, may irritate the skin after long periods of contact.
Respiratory Protection: None needed.
Hand Protection: Protective gloves for hypersensitive persons.
Eye Protection: Glasses, if applied to parts in motion.
Body Protection: Overalls.
Andrew Solutions
Customer Service 24 hours
U.S.A., Canada, Mexico: 1-800-255-1479
or 1-888-235-5732
U.K.: 0800 250055
Other Europe: +44 592 782 612
Notice: Andrew disclaims any liability or responsibility for the results of improper or unsafe installation, inspection, maintenance, or removal practices.
Aviso: Andrews no acepta ninguna obligacion ni responsabilidad como resultado de practicas incorrectas o peligrosas de instalacion, inspecci6n, mantenimiento o retire.
Avis : Andrew decline toute responsabilite pour les consequences de procedures d'installation, d'inspection, d'entretien ou de retrait incorrectes ou dangereuses.
Hinweis: Andrew lehnt jede Haftung Oder Verantwortung fur Schaden ab, die aufgrund unsachgemaBer Installation, Uberprufung, Wartung Oder Demontage auftreten.
Atencao: A Andrew abdica do direito de toda responsabilidade pelos resultados de praticas inadequadas e sem seguranca de instalacao, inspecao, manutengao ou remocao.
Awertenza: Andrew declina eventual! responsabilita denvanti dell'esecuzione di procedure di installazione, ispezione, manutenzione e smontaggio improprie o poco sicure.
Item Description
1

Antenna Assembly

2 Mount bracket
3 Screw, M10 x 35lg Cs'k Hd, sst, pass
4 Saddle Washer
5 Gloves
6 Mount Pivot bracket Assembly
7 Conductive Grease
8 Screw, M10 x 40lg Hex Hd, sst, pass
9 Lock Washer, M10, sst, pass
10 Washer, M10, sst, pass
11 Pipe Attachment Bracket
12 Screw, M10 x 150lg Hex Hd, sst, pass
13 Nut, M10, sst, pass
14 Clamp Bracket
15 M10x140lg Eye Bolt, sst, pass
Ring and Open spanner (A/F)
www.commscope.com\andrew
Visit our Web site at www.commscope.com\andrew or contact your local Andrew Solutions representative for more information.
© 2008 CommScope, Inc. All rights reserved.
Andrew Solutions is a trademark of CommScope. All trademarks identified by ® or ™ are registered trademarks or trade-
marks, respectively, of CommScope. This document is for planning purposes only and is not intended to modify or supplement
any specifications or warranties relating to Andrew Solutions products or services.
Bulletin
Table 1. Parts List
Tools Required
Torque Wrench
Sockets (A/F)
Allen Key (A/F)
Allen Key (A/F)
Cutting Pliers
Compass
General Toolbox
7663461
page 1 of 10
01
Version Status RE Rev B
Qty
1
1
7
4
2
1
1
4
10
10
1
2
10
1
2
Bolt Diameter
(in MM)
M10
17mm
17mm
5mm
6mm
