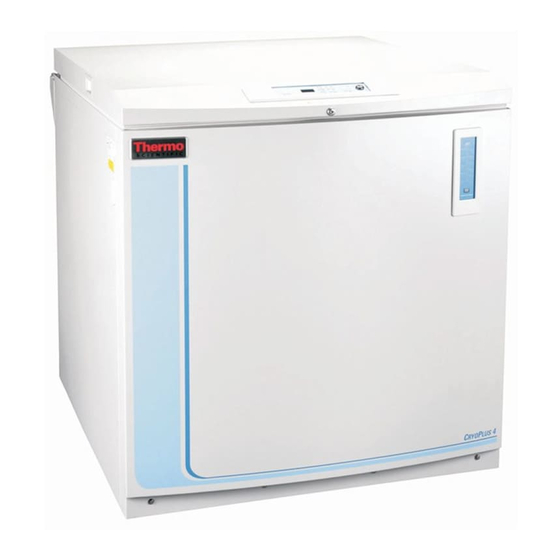

Thermo Scientific CRYO Plus 1 Operating And Maintenance Manual

Thermo Scientific CRYO Plus 1 Operating And Maintenance Manual

Liquid nitrogen storage system

Advertisement

Model 7400 Series
CRYO Plus 1, 2, 3, and 4
Liquid Nitrogen Storage System
Operating and Maintenance Manual 7007400 Rev. 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRYO Plus 1 and is the answer not in the manual?

Questions and answers

Ming Gong
May 9, 2025

After connecting the big tank, the machine cannot reach to the high level automatically. With manual fill, it also stopped working for the filling, the alarm indicating that the liquid level is high. Apparently, wrong information showed up.

1 comments:
Mr. Anderson
May 19, 2025

The issue could be that the liquid nitrogen (LN) level in the tank is already less than one inch below the high level setpoint. In this case, the manual fill will stop when the Manual Fill button is released, and the unit may not reach the high level automatically. As a result, the system might still display a high liquid level alarm if the alarm setpoint is not adjusted properly or if the sensor is faulty.

This answer is automatically generated

Summary of Contents for Thermo Scientific CRYO Plus 1

  • Page 1 Model 7400 Series CRYO Plus 1, 2, 3, and 4 Liquid Nitrogen Storage System Operating and Maintenance Manual 7007400 Rev. 11...
  • Page 2 6/30/05 Added accessory list 4/8/05 Corrected control panel index numbers 12/2/04 Clarified electrical specifications 10/29/04 Corrected manual fill instructions, LED information 21734/FR-1717 7/10/03 Updated alarm information 20423/FR-1620 6/18/02 Added lid strap info, Section 1.4 Thermo Scientific Thermo Scientific 7007400 Cryoplus...
  • Page 3 Material in this manual is for information purposes only. The contents and the product it describes are subject to change without notice. Thermo Scientific makes no representations or warranties with respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to the use of this manual.
  • Page 4 This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo Scientific has contracted with one or more recycling/disposal companies in each EU Member State European Country, and this product should be disposed of or recycled through them.
  • Page 5 We can also provide you with a quotation on our Extended Warranty for your Thermo Scientific products. Whatever Thermo Scientific products you need or use, we will be happy to discuss your applications. If you are experiencing technical problems, working together, we will help you locate the problem and, chances are, correct it yourself...over the telephone without a service...
  • Page 6: Table Of Contents

    Troubleshooting the Alarms ........3-1 Thermo Scientific...
  • Page 7 Handling Liquid Nitrogen ........9-1 7007400 Cryoplus Thermo Scientific...
  • Page 8: Quick Start-Up

    Warning Whenever working with liquid nitrogen storage equipment in a closed environment, the use of personal O detection devices is strongly recommended. Refer to “Handling Liquid Nitrogen” in the appendix at the end of this manual. ▲ Thermo Scientific 7007400 Cryoplus...
  • Page 9: Connect Liquid Nitrogen Transfer Hose

    2. Insert the power cord into the power outlet module. Tighten screw on the power cord retainer. 3. Fit the power cord/outlet module assembly into the connection on the unit. Tighten the module screws to secure the cord to the unit. Figure 1-2. Power Cord 7007400 Cryoplus Thermo Scientific...
  • Page 11: Connect Lid Strap (Model 7406/7407)

    If the circuit breaker trips again within a short time period, the unit should be checked by a qualified electrician. Warning Use only a grounded electrical receptacle. Failure to ground the unit can result in serious injury. ▲ 7007400 Cryoplus Thermo Scientific...
  • Page 12: Install Platform Riser

    (factory defaults). It is not recommended that these settings be changed until the unit has been filled for the first time and allowed to stabilize. Caution The lid must remain open throughout the initial filling of the storage container. ▲ Thermo Scientific 7007400 Cryoplus...
  • Page 13: Remote Alarm Connector

    The CryoPlus control system provides remote alarm contacts, wired to an RJ-11 connector on the back of the cabinet. Figure 1-4 identifies the pin Connector connections. Figure 1-4. RS232 and Remote Alarm Contact Connections Figure 1-5. Alarm Contacts Junction Box Wiring 7007400 Cryoplus Thermo Scientific...
  • Page 14: Rs-232 Interface Connector

    Press each button on the control panel, listening for a "beep" response. Control Panel Key Switch Turn the key switch to the Programming Access position (.). Control panel temperature display indicates alarm setpoint temperature. Turn the key to Lock position and the display shows actual chamber temperature. Thermo Scientific 7007400 Cryoplus...
  • Page 15 Return the key to Lock. The control panel display shows chamber temperature and bar graph shows new high and low level setpoints. Note The unit returns to factory default settings unless setpoints were saved in above tests by pressing Enter. ▲ 7007400 Cryoplus Thermo Scientific...
  • Page 16 (2" to 7") is ±1/2 inch. Measuring tolerance for the high scale (1" to 25") is ±1 inch. Caution Some shrinkage of the ruler may occur, depending on the level of liquid nitrogen in the tank. ▲ Thermo Scientific 7007400 Cryoplus...
  • Page 18: Operation

    (stop fill) and low level (start fill) points. See Figure 2-2. Figure 2-2. Level Indicators and Setpoints Thermo Scientific 7007400 Cryoplus...
  • Page 19 Lock position. • If the lid is opened frequently, condensation can occur on the vent port, causing icing of the port. See the maintenance section for defrost information. 7007400 Cryoplus Thermo Scientific...
  • Page 20: Bar Graph

    (4) minutes. On the high scale (left side, 2"- 25"), the high and low level setpoints must be at least 3" apart. On the low scale (right side, 1.5"- 7.25"), the high and low level setpoints must be at least 1.25" apart. ▲ Thermo Scientific 7007400 Cryoplus...
  • Page 21: Change High Level (Stop Filling) Setpoint

    6. Press Enter to store the new setting in the microprocessor memory. Return the key switch to the Lock position. Note Depending on the new setpoints, filling will not begin until the chamber liquid level falls below the new low level setpoint. ▲ 7007400 Cryoplus Thermo Scientific...
  • Page 22: Change High Temperature Alarm Setpoint

    2. Starting from the bottom of the bar graph, the first LED on the bar graph lights and the numeric display on the control panel shows the current time hundredths of seconds. 3. Press the up arrow (to increase) or down arrow (to decrease) the setting. Thermo Scientific 7007400 Cryoplus...
  • Page 23: The Optional Control Printer

    • All error codes Note Automatic printing every two hours is the factory default. This feature can be programmed to occur from once every hour to once every 24 hours. Contact the Technical Services Department. ▲ 7007400 Cryoplus Thermo Scientific...
  • Page 24: Troubleshooting The Alarms

    ▲ Warning Ultra low temperatures are associated with this equipment. Instructions in this section should only be carried out when using special handing equipment or when wearing special, protective clothing. ▲ Thermo Scientific 7007400 Cryoplus...
  • Page 25 Blow fuses (P/N 230173) are located on the microprocessor circuit board. Refer to Figure 3-2. To access these fuses, remove the cabinet back panel. Warning This service should only be performed by qualified personnel. ▲ Figure 3-2. Microprocessor Circuit Board 7007400 Cryoplus Thermo Scientific...
  • Page 26 Figure 3-3. Inserting Connectors From Inside the Cabinet Access the control panel circuit board (below) by lifting off the plastic frame surrounding the front of the panel and removing the Phillips screws. Figure 3-4. Control Panel Circuit Board Thermo Scientific 7007400 Cryoplus...
  • Page 27 Troubleshooting the Alarms Figure 3-5. Mechanical Block Diagram Access the bar graph circuit board (right) by lifting off the plastic frame surrounding the front of the panel and removing the Phillips screws. Figure 3-6. Bar Graph Circuit Board 7007400 Cryoplus Thermo Scientific...
  • Page 28 Section 3 Troubleshooting the Alarms Thermo Scientific 7007400 Cryoplus...
  • Page 29 Section 3 Troubleshooting the Alarms 7007400 Cryoplus Thermo Scientific...
  • Page 30 Section 3 Troubleshooting the Alarms Thermo Scientific 7007400 Cryoplus...
  • Page 31 Section 3 Troubleshooting the Alarms 7007400 Cryoplus Thermo Scientific...
  • Page 32 Section 3 Troubleshooting the Alarms Thermo Scientific 7007400 Cryoplus...
  • Page 33 Section 3 Troubleshooting the Alarms 3-10 7007400 Cryoplus Thermo Scientific...
  • Page 34 Section 3 Troubleshooting the Alarms Thermo Scientific 7007400 Cryoplus 3-11...
  • Page 36: Maintenance

    1. Remove retaining clip and slide entire solenoid enclosure from solenoid base sub-assembly. Caution When metal retaining clip disengages, it springs upward. ▲ 2. Unscrew solenoid base sub-assembly and remove body gasket, core assembly with rider ring and core spring attached. Thermo Scientific 7007400 Cryoplus...
  • Page 37: General Cleaning

    Freezing chamber The interior of the CryoPlus unit is made of high quality stainless steel and should not be cleaned with any cleanser containing chlorine. Exterior cabinet Wash the outside of the cabinet with a mild detergent. 7007400 Cryoplus Thermo Scientific...
  • Page 38: Defrosting The Storage Tank

    See Caution above. Port The opening of the storage container can be loosely covered while the vent port thaws. After the port has thawed, remove all moisture from the vent port area before returning the tank to service. Thermo Scientific 7007400 Cryoplus...
  • Page 40: Specifications

    ** Add 5.0" (12.7 cm) for utilities and lid opening *** 93.5" (237.5 cm) total unit height of CryoPlus 4 with lid open **** Rack = 13-2C/100 ***** Use rack #4000112 Thermo Scientific 7007400 Cryoplus...
  • Page 42: Parts List

    Pressure relief valve 1/4" MPT 990027 Magnetic lid gasket 990028 Magnetic lid gasket 990029 Magnetic lid gasket 990031 Magnetic lid gasket 180143 dip measuring ruler 4000400 4 foot transfer hose 4000401 6 foot transfer hose 195884 Lid closing strap Thermo Scientific 7007400 Cryoplus...
  • Page 43: Accessory List

    Fenwal 4-Place 4R5462 Frame 4000565 Thermal Data Printer 4000566 Thermal Printer Paper 4000616 Fenwal 4R9951 Platform Dividers 6007400 Installation/Operation Qualification 107406 Tank Plug Foam Gasket 990027 Lid Gasket * FI = Factory Install QI = Qualified Personnel Install 7007400 Cryoplus Thermo Scientific...
  • Page 44: Exceptions

    Platform Riser 4”x20 4000075 Fenwal 4R5461 Platform Dividers 4000076 Fenwal 4R5462 Platform Dividers 4000078 Gambro DF200 Platform Dividers 4000079 Gambro DF700 Platform Dividers 4000080 Delmed 2030-2 Platform Dividers 4000624 Fenwal 4R9951 Platform Dividers 4000665 Thermal Printer 220V Thermo Scientific 7007400 Cryoplus...
  • Page 45 Inventory Rack 7-3-CW 4000004 Inventory Rack 7-3-SS 4000052 Gambro 200 Platform Dividers 4000053 Fenwal 4R5461 Platform Dividers 4000054 Fenwal 4R5462 Platform Dividers 4000066 Platform Riser 3-1/2x39 4000067 Platform Riser 5x39 F 4000639 Fenwal 4R9951 Platform Dividers 7007400 Cryoplus Thermo Scientific...
  • Page 46: Inventory Control

    Standard Inventory Vertical Inventory Arrowhead, Square Control Designation - Model Number Cryo Plus 1 - Model 7400/7401 Cryo 100 - Model 740/741 Cryo Plus 2 - Model 7402/7403 Cryo 200 - Model 742/743 Cryo Plus 3 - Model 7404/7405 Cryo 300 - Model 744/745...
  • Page 47 Section 6 Parts List Inventory Control (cont’d) 4 place frame #4000371 for 250ml canister Sliding canister #4000335 for 4R9953 bag Platform divider for frames #4000371 and 25ml canisters #4000335 7007400 Cryoplus Thermo Scientific...
  • Page 48 CV-4-2-C/100 4000011 & Part No. 6-3-C/81 4000095 7-3-C/100 4000003 CV-5-2-C/100 4000012 6-3.75-C/81 4000097 7-3.75-C/100 4000010 7-3-C/81 4000100 8-3-C/100 4000008 7-3.75-C/81 4000043 11-2-C/100 4000001 8-3-C/81 4000104 12-2-C/100 4000042 9-2-C/81 4000106 13-2-C/100 4000006 10-2-C/81 4000108 11-2-C/81 4000110 12-2-C/81 4000112 Thermo Scientific 7007400 Cryoplus...
  • Page 49 Tank - 24” 4000080 Tank - 31” 4000050 Tank - 31” 4000051 Tank - 31” 4000047 Tank - 31” 4000048 Tank - 31” 4000045 Tank - 39.5” 4000053 Tank - 39.5” 4000054 Tank - 39.5” 4000052 7007400 Cryoplus Thermo Scientific...
  • Page 50: Electrical Schematics

    Section 7 Electrical Schematics Thermo Scientific 7007400 Cryoplus 7007400 Cryoplus...
  • Page 51 Section 7 Electrical Schematics 7007400 Cryoplus Thermo Scientific...
  • Page 52 Section 7 Electrical Schematics Thermo Scientific 7007400 Cryoplus...
  • Page 53 Section 7 Electrical Schematics 7007400 Cryoplus Thermo Scientific...
  • Page 54: Warranty Information

    Section 8 Warranty Information Thermo Scientific 7007400 Cryoplus 7007400 Cryoplus...
  • Page 55 Section 8 Warranty Information 7007400 Cryoplus Thermo Scientific...
  • Page 56: Handling Liquid Nitrogen

    1. It is extremely cold. At atmospheric pressure, liquid nitrogen boils at - 320° F (-196° C). 2. Very small amounts of liquid vaporize into large amounts of gas. One liter of liquid nitrogen becomes 24.6 cu. ft. (0.7 m3) of gas. Thermo Scientific 7007400 Cryoplus 7007400 Cryoplus...
  • Page 57 Do not overfill containers. Filling above the bottom of the necktube (or specified maximum level) can result in overflow and spillage of liquid when the necktube core or cover is placed in the opening. 7007400 Cryoplus Thermo Scientific...
  • Page 58 Call a physician. Rapid warming of the affected part is best achieved by using water at 108°F. Under no circumstance should the water be over 112°F, nor should the frozen part be rubbed either before or after rewarming. The patient should neither smoke nor drink alcohol. Thermo Scientific 7007400 Cryoplus...
  • Page 59 Thermo Scientific 7007400 Cryoplus 10-1...
  • Page 60 Thermo Scientific Controlled Environment Equipment 401 Millcreek Road Marietta, Ohio 45750 United States www.thermofisher.com...
