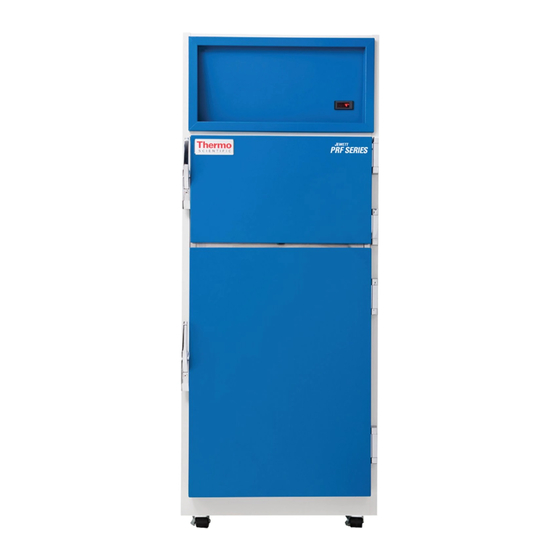

Thermo Scientific Jewett® PRF17
Refrigerator/Freezers
Installation and Operation
307950H01 Rev E
Visit us online to register your warranty
www.thermoscientific.com/labwarranty
September 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jewett PRF17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Scientific Jewett PRF17

  • Page 1 Thermo Scientific Jewett® PRF17 Refrigerator/Freezers Installation and Operation 307950H01 Rev E September 2014 Visit us online to register your warranty www.thermoscientific.com/labwarranty Part of Thermo Fisher Scientific...
  • Page 2 © 2014 Thermo Fisher Scientific Inc. All rights reserved. IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
  • Page 3: Table Of Contents

    Table of Contents Introduction ......................... 1 Inspection for Damage ....................... 3 Operating Standards ......................5 Installation ........................... 7 Safety instructions..........................7 Location ..............................7 Wiring ..............................8 Operation ..........................9 Initial Startup ............................9 Refrigerator Section Performance....................... 9 Freezer Section Performance ......................9 Defrost..............................
  • Page 4 This page is intentionally left blank...
  • Page 5: Introduction

    • Your unit must be properly grounded in conformity with national and local electrical codes. Never connect the unit to overloaded power sources. • Disconnect the unit from all power sources before cleaning or performing other maintenance on the product or its controls. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 6 The following symbols are used in caution, warning and informational labels attached to the unit: caution, info electrical hazard on (control panel) hot surface off (control panel) cold surface standby watch hands (battery enable) protective conductor terminal alternating earth ground current Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 7: Inspection For Damage

    If you find any damage, keep the packing materials and immediately report the damage to the carrier. Do not return goods to the manufacturer without written authorization. When submitting a claim for shipping damage, request that the carrier inspect the shipping container and equipment. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 8 Inspection for Damage This page is intentionally left blank Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 9: Operating Standards

    Frequency Current PRF17-1B 120V 60HZ 10.5A Packing List Inside the refrigerator/freezer is a bag containing: • This manual If you have ordered a HemaPro, the bag will also contain: • HemaPro instructions Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 10 Operating Standards This page is intentionally left blank Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 11: Installation

    The ambient temperature range at the location must be 59°F to 90°F (15°C to 32°C). • Do not position the unit in a way that impedes access to the switch on the back of the unit. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 12: Wiring

    Always connect the equipment to a dedicated (separate) circuit. Electrical codes require fuse or circuit breaker protection for branch circuit conductors. Use time delay fuses for #12 AWG circuits. CAUTION Do not use an outlet that can be turned off by a switch. Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 13: Operation

    Ther freezer section setpoint is factory preset and will vary based on ambient conditions. Typical performance: Ambient Temperature Freezer Temperature º º º º º º The freezer setpoint cannot be changed. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 14: Defrost

    • All models have been provided with an electric condensate evaporator located on the back of the cabinet. Periodic cleaning of the condensate pan will ensure proper operation. Refer to image below for location of condensate pan. Condensate pan Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 15: Installation And Removal Of Drawers

    1. Place drawer on top of slides and push into rear stops. 2. Align slot on lever with the tabs on the drawer slide. Push lever down to lock in place. LEVER Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 16: Removal

    Installation and Removal of Drawers Removal Removal 1. Lift lever up to unlock drawer from the drawer slides. 2. Lift front of drawer up and pull clear of slides. LEVER Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 17: Hinge And Latch Adjustment

    If the latch is loose, see latch-adjusting information. 5. Replace cover plate "A." Note To accomplish different offsets, shims are utilized. If replacing hinges, make sure to reuse any shims furnished on the cabinet. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 18: Latch And Strike Adjustment

    6. The stainless steel hex head cap screw is 10/32" X 5/16" long. Use box wrench, open-end wrench, or ratchet to tighten. Do not use a nut driver or pliers. Note If replacing latch and strike assembly, make sure to reuse any shims furnished on the cabinet. Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 19: Maintenance

    Keep the door gaskets clean and debris free by cleaning with a solution of water and a mild detergent. Gently wipe the gasket dry with a soft cloth. Thermo Scientific Jewett 17 Refrigerator/Freezers Installation and Operation...
  • Page 20: Condenser Maintenance

    3. Use a vacuum cleaner with hose and brush attachments to clean the front face of the finned surface shown in the image below. 4. Clean up any loose dust and replace the grill. 5. Reconnect the power. Finned Surface Remove screws to remove grill Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 21: Bulb Maintenance

    Figure 3 Square base of the bulb Figure 4 Light Cover Failure to replace the bulb shield may result in physical harm. Failure to replace the shield changes the design and voids the warranty. Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 22: Troubleshooting

    Ambient temperature Freezer temp will shift with ambient temperature. For con- fluctuates (freezer only) sistent temperature place unit in a controlled environment. “Freezer Section Performance” Troubleshooting table continued on next page Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 23 (314755H02) on the bulb. Door switch is stuck Check door switch at top of refrigerator opening to make sure it slides in and out when door is opened. Installation and Operation 19 Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 24: Accessories

    2000 surveillance with display and alarm. *Note When using the HemaPro 2000 with the PRF17 unit the refrigerator temperature will be shown as “UPPER” and the freezer temperature will be shown as “LOWER” on the display. Installation and Operation Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 25 Accessories This page is intentionally left blank Installation and Operation 21 Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 26: Warranty

    Thermo shall not be liable for any indirect or consequential damages including, without limitation, damages relating to lost profits or loss of products. Your local Thermo Scientific Sales Office is ready to help with comprehensive site preparation information before your equipment arrives. Printed instruction manuals carefully detail equipment installation, operation, and preventive maintenance.
  • Page 27 Thermo shall not be liable for any indirect or consequential damages including, without limitation, damages relating to lost profits or loss of products. Your local Thermo Scientific Sales Office is ready to help with comprehensive site preparation information before your equipment arrives. Printed instruction manuals carefully detail equipment installation, operation, and preventive maintenance.
  • Page 28 Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermo.com/ Conformité...
  • Page 29 This page is intentionally left blank Installation and Operation 25 Thermo Scientific Jewett 17 Refrigerator/Freezers...
  • Page 30 IMPORTANT For your future reference and when contacting the factory, please have the following information readily available: Model Number: Serial Number: Date Purchased: The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (the manufacturer or specific agent/rep organization), and purchase order number.
