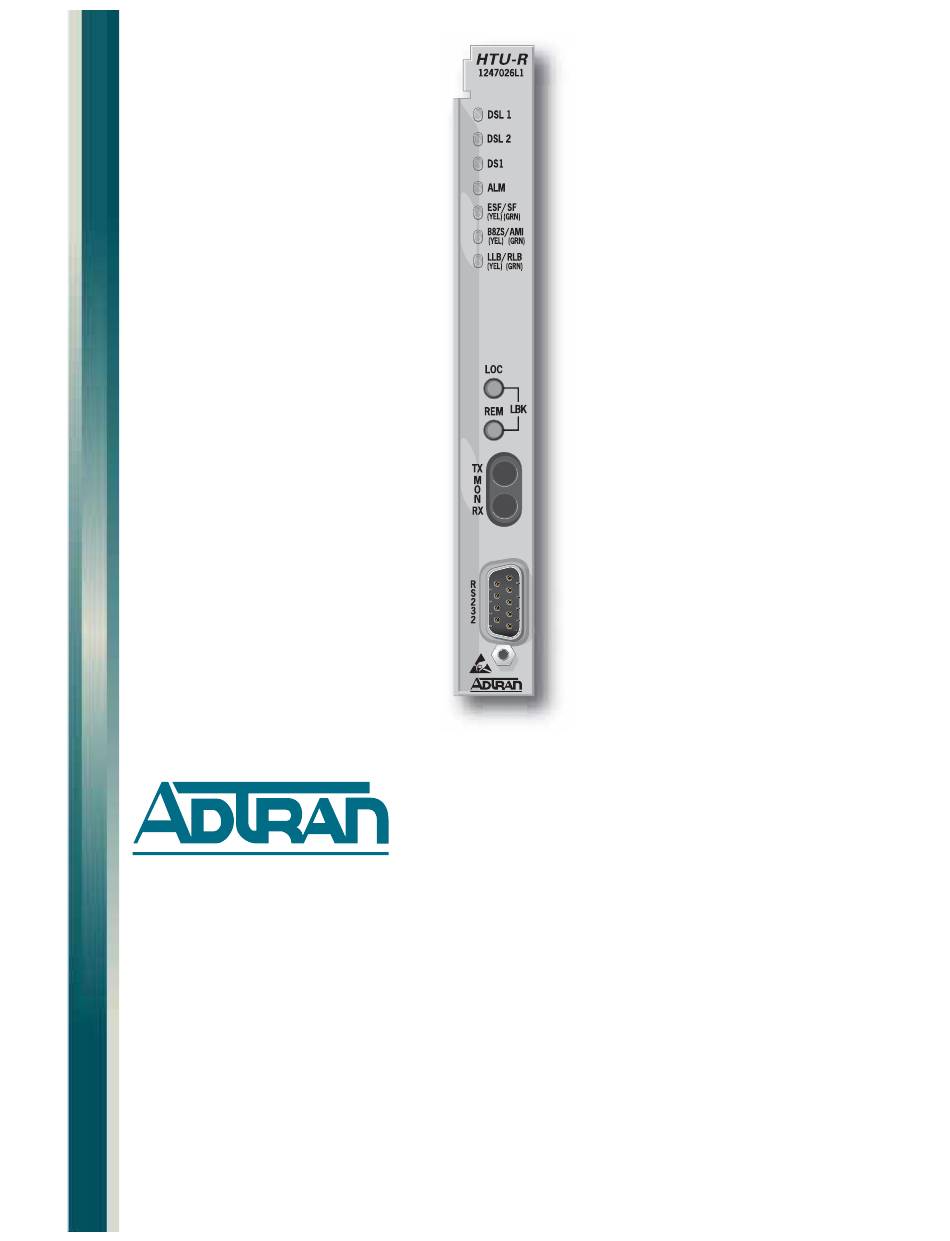

- Page 1 ® HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Document Number: 61247026L1-5A CLEI: T1I3AAVA_ _ April 2008...
- Page 2 In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this document.
- Page 3 Revision History Revision Date Description April 2008 Initial release Conventions The following typographical conventions are used in this document: This font indicates a cross-reference link. indicates screen menus, fields, and parameters. This font indicates keyboard keys ( ). Keys that are to be pressed simultaneously HIS FONT NTER are shown with a plus sign (...
- Page 4 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Training ADTRAN offers training courses on our products. These courses include overviews on product features and functions while covering applications of ADTRAN product lines. ADTRAN provides a variety of training options, including customized training and courses taught at our facilities or at customer sites.
-
Page 5: Table Of Contents
T200 HTU-R, SP/60 mA Bantam Jacks ........ - Page 6 T200 HTU-R, SP/60 mA MON Bantam Jacks........
- Page 7 T200 HTU-R, SP/60 mA Front Panel Pushbuttons ........
- Page 8 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice This page is intentionally blank. viii 61247026L1-5A...
-
Page 9: Introduction
T200 HTU-R, Span Powered, 60 mA INTRODUCTION This practice is an installation and maintenance guide for the ADTRAN T200 HTU-R, Span ® Powered, 60 mA (T200 HTU-R, SP/60 mA). Figure 1 illustrates the T200 HTU-R, SP/60 mA (P/N 1247026L1) front panel. -
Page 10: Description
36 kft on 24-gauge twisted pair wire using two HREs. The T200 HTU-R, SP/60 mA can be used with any HRE and any HTU-C to provide a fully span- powered extended range HDSL circuit. Span power is provided from the HTU-C. Span powering meets all requirements of Class A2 voltages as specified by Bellcore GR-1089-CORE. -
Page 11: Compliance
Introduction Compliance The T200 HTU-R, SP/60 mA is NRTL Listed to the applicable UL safety standards for use in continuous environmental conditions ranging from –40°C to +50°C. Care should be exercised when handling equipment when temperatures at these extremes exist, as surfaces could be very cold or hot. - Page 12 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice CAUTION Per GR-1089-CORE the HDSL System is designed and intended for installation as part of a Common Bonding Network (CBN). The HDSL System is not designed nor intended for installation as part of an Isolated Bonding Network (IBN).
-
Page 13: Hdsl Deployment Guidelines
HDSL Deployment Guidelines HDSL DEPLOYMENT GUIDELINES The ADTRAN HDSL system is designed to provide DS1 based services over loops designed to comply with carrier service area (CSA) guidelines. CSA deployment guidelines are given below. • All loops are non-loaded only. -
Page 14: Table 3. Hdsl Loss Values
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Table 3. HDSL Loss Values (200 kHz cable loss in dB/kft at 135 Ω ) Temperature Cable Gauge Cable Type 68° 90° 120° 3.902 4.051 4.253 Pulp 4.030 4.179 4.381... -
Page 15: Installation
1. Set the option jumper according to specific circuit design, for more information refer to “DS1 NIU 60 mA Current Option Jumper” above. 2. Hold the T200 HTU-R, SP/60 mA by the front panel while supporting its bottom edge to engage the chassis edge. 61247026L1-5A... -
Page 16: Front Panel Leds
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice 3. Align the T200 HTU-R, SP/60 mA edges to fit in the lower and upper guide grooves for the module slot. 4. Slide the T200 HTU-R, SP/60 mA into the module slot. Simultaneous thumb pressure at the... -
Page 17: Provisioning
The provisioning settings can be viewed and manipulated through management access via the front panel RS-232 port. Table 6 lists the available provisioning options and their factory default settings. Table 6. T200 HTU-R, SP/60 mA Provisioning Defaults Option Settings Default DSX 1 LBO 0–133 feet;... -
Page 18: Connections
All connections of the T200 HTU-R, SP/60 mA are made through card edge connectors. Table 7 provides the card edge pin assignments for the T200 HTU-R, SP/60 mA circuit pack. The circuit pack operates in either of the previously mentioned stand alone chassis, the ADTRAN HR4 HDSL shelf (P/N 1242008L1), or the ADTRAN HR12 HDSL shelf (P/N 1242007L1). -
Page 19: Control Port Operation
Control Port Operation CONTROL PORT OPERATION The T200 HTU-R, SP/60 mA provides a front panel mounted DB9 connector that supplies an RS-232 interface for connection to a controlling terminal. The pinout of the DB9 is illustrated Figure Pin 5 - Signal Ground (SGN) -
Page 20: User Interface
• Screen Abbreviations Menu Structure The menu structure for the T200 HTU-R, SP/60 mA is a layered menu tree. Each layer of the menu tree is displayed as a menu or a screen. Menus A menu is a display that provides numbered selections that are used to navigate to related menus, modify provisioning information, or display information screens. -
Page 21: Screen Abbreviations
User Interface Screen Abbreviations Table 8 lists the abbreviations used in the screen examples shown in Figures 4 through 15. Table 8. Screen Abbreviations Abbreviation Definition Errored Seconds • DSX/DS1 – SF: Second in which a BPV or frame bit error occurs –... -
Page 22: Menu Descriptions
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice MENU DESCRIPTIONS The following subsections describe the T200 HTU-R, SP/60 mA menu screens. A terminal session is initiated by entering multiple space bar characters, which determines the speed of the terminal. -
Page 23: Hdsl Main Menu
“ Various Operation, Administrative, Maintenance, and Provisioning (OAM&P) M.” screens can be accessed from the Main Menu. Circuit ID:HNTSVLALHDSL MM/DD/YY hh:mm:ss ADTRAN HDSL MAIN MENU 1) CURRENT SYSTEM STATUS 2) PERFORMANCE HISTORY 3) ADTRAN INFORMATION 4) LOOPBACK OPTIONS 5) SELF-TEST... - Page 24 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Table 9. HDSL Main Menu Options (Continued) Option Description Function Alarm History This option displays the “Alarm History Screen” on page 27. “Set Time/Date/Circuit ID Screen” Set Time/Date/Circuit ID This option displays the on page 28.
-
Page 25: Current System Status Screen
HDSL, DSX-1, and DS1 interfaces. A key to the information provided is found in the center of the screen and defined in Table 10 below. Arrows indicate the key applies to both the T200 HTU-R, SP/60 mA and the HTU-C. 61247026L1-5A... -
Page 26: Table 10. Hdsl, Ds1, And Dsx-1 Key Definitions
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Table 10. HDSL, DS1, and DSX-1 Key Definitions Indicator Definition LOSS Pulse attenuation measurement SYNC HDSL loop 1 and loop 2 sync status ES 15M/24H Errored seconds SES 15M/24H... -
Page 27: Table 12. Hdsl Loop Signal Quality
Predicting performance based upon signal quality varies with each loop. Generally, a noise margin of 0 or higher supports a bit error rate of 10 or better. ADTRAN defined guidelines that correspond to the operation of the T200 HTU-R, SP/60 mA front panel LEDs labeled DSL1 are illustrated in... -
Page 28: Current System Status - Hre Screen
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Current System Status - HRE Screen The Current System Status -HRE Screen, illustrated in Figure 7, is selected from the Current System Status screen by pressing “ Press “... -
Page 29: Performance History Screen
Menu Descriptions Performance History Screen The Performance History screen, illustrated in Figure 8, displays the historical HDSL and T1 performance data in several different registers. At each 15-minute interval, the performance information is transferred to the previous 15-minute performance data register. The T200 HTU-R, SP/60 mA stores performance data in 15-minute increments for the last 24-hour period. -
Page 30: Performance History - Hre Screen
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Performance History - HRE Screen The Performance History - HRE Screen, illustrated in Figure 9, is selected from the Perfor- mance History screen by pressing “ ” Press “... -
Page 31: Loopbacks Options Menu
Menu Descriptions Loopbacks Options Menu The Loopback Options menu, illustrated in Figure 10, displays and allows the changing of loopback settings throughout the HDSL circuit. Circuit ID:HNTSVLALHDSL MM/DD/YY hh:mm:ss LOOPBACK OPTIONS _____ _____ _____ |HTU-C| |HRE 1| |HTU-R| --->|-----|<============>|-----|<============>|-----|<-- NET | | CUST <---|-----|<============>|-----|<============>|-----|-->... -
Page 32: Self Test Options Screen
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Self Test Options Screen The Self Test Option screen, illustrated in Figure 11, allows the initiation of self tests of the T200 HTU-R, SP/60 mA and HTU-C by pressing “... -
Page 33: Provisioning Menu
Menu Descriptions Provisioning Menu The Provisioning menu, illustrated in Figure 12, provides the option to change the T200 HTU-R, SP/60 mA provisioning options. A full list of provisioning options can be found in Table 6 page 9. CIRCUIT ID: MM/DD/YY... -
Page 34: Troubleshooting Display Screen
Figure 13, graphically depicts an HDSL circuit. The T200 HTU-R, SP/60 mA reviews red, yellow, and blue alarm conditions in the circuit to automatically predict where a fault is located. Once a fault location is suspected, the corre- sponding portion of the circuit on the screen is highlighted and a message describing the failure appears. -
Page 35: Alarm History Screen
Figure 14, lists the alarm conditions the HDSL circuit. The T200 HTU-R, SP/60 mA reviews red, yellow, and blue alarm conditions in the circuit to automatically predict where a fault is located. Once a fault location is suspected, the corre- sponding portion of the circuit on the screen is highlighted and a message describing the failure appears. -
Page 36: Set Time/Date/Circuit Id Menu
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Set Time/Date/Circuit ID Menu The Set Time/Date/Circuit ID menu, illustrated in Figure 15, provides provisioning options to set the time, date, and circuit ID for the HDSL circuit. Enter the time parameters as military time (for example, enter 3:15 p.m. -
Page 37: Terminal Modes Menu
Menu Descriptions Terminal Modes Menu The Terminal Modes menu, illustrated in Figure 16, provides the ability to select the T200 HTU-R, SP/60 mA terminal emulation mode. The HTU-R includes two terminal emulation modes as described on the Terminal Modes menu. The Manual Update Mode (default) allows the user to manually update the provisioning option screens. -
Page 38: Hdsl System Testing
HDSL system. T200 HTU-R, SP/60 mA Bantam Jacks The front panel of the T200 HTU-R, SP/60 mA contains metallic splitting bantam jacks for nonin- trusive (monitoring) DSX-1 test access. Figure 17 illustrates the jack detail. -
Page 39: T200 Htu-R, Sp/60 Ma Loopbacks
Figure 10 depicts the Loopback Options Screen which provides for HTU-C, T200 HTU-R, SP/60 mA, and HRE loopbacks. Second, the T200 HTU-R, SP/60 mA responds to the industry standard sequences for HDSL loopbacks. -
Page 40: Figure 18. Hdsl Loopbacks
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice HTU-C Network-Side Loopback LOCAL DSX-1 LOOP HTU-C HTU-R HTU-R Network-Side Loopback and/or HTU-R NIU Loopback LOCAL DSX-1 LOOP HTU-C HTU-R HTU-R Customer-Side Loopback LOCAL LOOP HTU-C HTU-R HTU-C Customer-Side Loopback... -
Page 41: Troubleshooting Procedures
The HDSL T200 HTU-R, Span Powered, 60 mA does not require routine maintenance for normal operation. Do not attempt to repair the T200 HTU-R, SP/60 mA in the field. Repair services are obtained by returning the defective unit to ADTRAN. Refer to “Appendix B,... -
Page 42: Specifications
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice SPECIFICATIONS Specifications for the T200 HTU-R, SP/60 mA are detailed in Table Table 16. T200 HTU-R, SP/60 mA Specifications Specification Description Loop Interface Modulation Type: 2B1Q Mode: Full Duplex;... - Page 43 Specifications Table 16. T200 HTU-R, SP/60 mA Specifications Specification Description Tests Diagnostics: T200 HTU-R, SP/60 mA Loopback initiated as follows: • Initiated with HDSL in-band codes; • Initiated with T1 NIU in-band codes; • Initiated with HTU-C command; • Initiated manually;...
- Page 44 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice This page is intentionally blank. 61247026L1-5A...
-
Page 45: Hdsl Loopbacks
This Appendix describes operation of the HDSL system with regard to detection of in-band and ESF facility data link loopback codes. The operation of the loopback commands in the ADTRAN HDSL system is compliant with the recommendation to ANSI recorded in T1E1.4/92. The HDSL network loopback points described below are shown in Figure A-1. -
Page 46: Loopback Process Description
HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Loopback Process Description In general, the loopback process for the HDSL system elements is modeled on the corresponding DS1 system process. Specifically, the HTU-C loopback is similar to an Intelligent Office Repeater loopback and the HTU-R loopbacks are similar to an inline T1 Repeater loopback. -
Page 47: Hdsl Loopback Codes
Appendix A, HDSL Loopbacks - HDSL Maintenance Modes In-band control code sequences are transmitted over the DS1 link by either the unframed or overwrite method. The HDSL elements respond to either method. The unframed method produces periodic control sequences and the normal DS1 framing bit is omitted. - Page 48 HDSL T200 HTU-R, Span Powered, 60 mA Installation and Maintenance Practice Table A-1. HDSL Loopback Control Codes (Continued) Function Code (Binary/Hex) Response Activation (HTU-C) 1111110 Signal sent in-band. HTU-C loops back the T1 data (6 in 7) to the customer equipment.
-
Page 49: Warranty
Appendix B Warranty WARRANTY AND CUSTOMER SERVICE ADTRAN will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found at www.adtran.com/warranty. Refer to the following subsections for sales, support, Customer and Product Service (CAPS) requests, or further information. - Page 50 ® Carrier Networks Division 901 Explorer Blvd. Huntsville, AL 35806...
