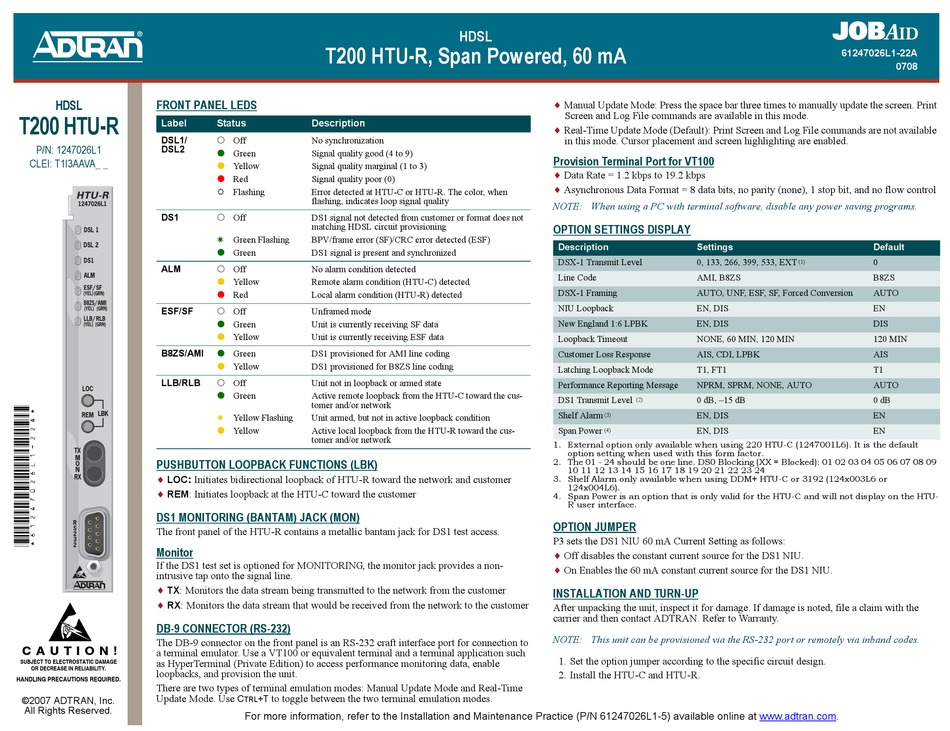

ADTRAN T200 HTU-R Installation

HDSL FRONT PANEL LEDS
T200 HTU-R
Label
DSL1/
P/N: 1247026L1
DSL2
CLEI: T1I3AAVA_ _
DS1
ALM
ESF/SF
B8ZS/AMI
LLB/RLB
PUSHBUTTON LOOPBACK FUNCTIONS (LBK)
♦
LOC : Initiates bidirectional loopback of HTU-R toward the network and customer
♦
: Initiates loopback at the HTU-C toward the customer
REM
DS1 MONITORING (BANTAM) JACK (MON)
The front panel of the HTU-R contains a metallic bantam jack for DS1 test access.
Monitor
If the DS1 test set is optioned for MONITORING, the monitor jack provides a non-
intrusive tap onto the signal line.
♦
: Monitors the data stream being transmitted to the network from the customer
TX
♦
: Monitors the data stream that would be received from the network to the customer
RX
DB-9 CONNECTOR (RS-232)
The DB-9 connector on the front panel is an RS-232 craft interface port for connection to
C A U T I O N !
a terminal emulator. Use a VT100 or equivalent terminal and a terminal application such
as HyperTerminal (Private Edition) to access performance monitoring data, enable
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
loopbacks, and provision the unit.
HANDLING PRECAUTIONS REQUIRED.
There are two types of terminal emulation modes: Manual Update Mode and Real-Time
Update Mode. Use
©2007 ADTRAN, Inc.
All Rights Reserved.
T200 HTU-R, Span Powered, 60 mA
Status Description
Off No synchronization
Green Signal quality good (4 to 9)
Yellow Signal quality marginal (1 to 3)
Red Signal quality poor (0)
Flashing Error detected at HTU-C or HTU-R. The color, when
flashing, indicates loop signal quality
Off DS1 signal not detected from customer or format does not
matching HDSL circuit provisioning
2
Green Flashing BPV/frame error (SF)/CRC error detected (ESF)
Green DS1 signal is present and synchronized
Off No alarm condition detected
Yellow Remote alarm condition (HTU-C) detected
Red Local alarm condition (HTU-R) detected
Off Unframed mode
Green Unit is currently receiving SF data
Yellow Unit is currently receiving ESF data
Green DS1 provisioned for AMI line coding
Yellow DS1 provisioned for B8ZS line coding
Off Unit not in loopback or armed state
Green Active remote loopback from the HTU-C toward the cus-
tomer and/or network
2
Yellow Flashing Unit armed, but not in active loopback condition
Yellow Active local loopback from the HTU-R toward the cus-
tomer and/or network
to toggle between the two terminal emulation modes.
C +T
TRL
For more information, refer to the Installation and Maintenance Practice (P/N 61247026L1-5) available online at www.adtran.com.
HDSL
♦
Manual Update Mode: Press the space bar three times to manually update the screen. Print
Screen and Log File commands are available in this mode.
♦
Real-Time Update Mode (Default): Print Screen and Log File commands are not available
in this mode. Cursor placement and screen highlighting are enabled.
Provision Terminal Port for VT100
♦
Data Rate = 1.2 kbps to 19.2 kbps
♦
Asynchronous Data Format = 8 data bits, no parity (none), 1 stop bit, and no flow control
NOTE: When using a PC with terminal software, disable any power saving programs.
OPTION SETTINGS DISPLAY
Description
DSX-1 Transmit Level
Line Code
DSX-1 Framing
NIU Loopback
New England 1:6 LPBK
Loopback Timeout
Customer Loss Response
Latching Loopback Mode
Performance Reporting Message
DS1 Transmit Level
(2)
Shelf Alarm
(3)
Span Power
(4)
1. External option only available when using 220 HTU-C (1247001L6). It is the default
option setting when used with this form factor.
2. The 01 - 24 should be one line. DS0 Blocking (XX = Blocked): 01 02 03 04 05 06 07 08 09
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
3. Shelf Alarm only available when using DDM+ HTU-C or 3192 (124x003L6 or
124x004L6).
4. Span Power is an option that is only valid for the HTU-C and will not display on the HTU-
R user interface.
OPTION JUMPER
P3 sets the DS1 NIU 60 mA Current Setting as follows:
♦
Off disables the constant current source for the DS1 NIU.
♦
On Enables the 60 mA constant current source for the DS1 NIU.
INSTALLATION AND TURN-UP
After unpacking the unit, inspect it for damage. If damage is noted, file a claim with the
carrier and then contact ADTRAN. Refer to Warranty.
NOTE: This unit can be provisioned via the RS-232 port or remotely via inband codes.
1. Set the option jumper according to the specific circuit design.
2. Install the HTU-C and HTU-R.
61247026L1-22A
Settings Default
0, 133, 266, 399, 533, EXT 0
(1)
AMI, B8ZS B8ZS
AUTO, UNF, ESF, SF, Forced Conversion AUTO
EN, DIS EN
EN, DIS DIS
NONE, 60 MIN, 120 MIN 120 MIN
AIS, CDI, LPBK AIS
T1, FT1 T1
NPRM, SPRM, NONE, AUTO AUTO
0 dB, –15 dB 0 dB
EN, DIS EN
EN, DIS EN
0708
