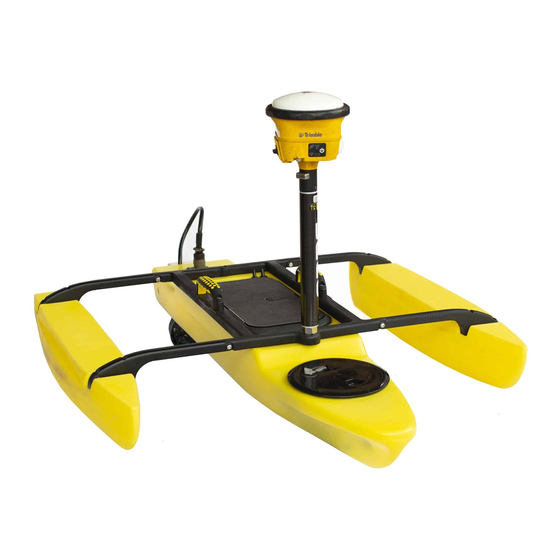

Portable remote surveying vessel

Table of Contents

Download this manual

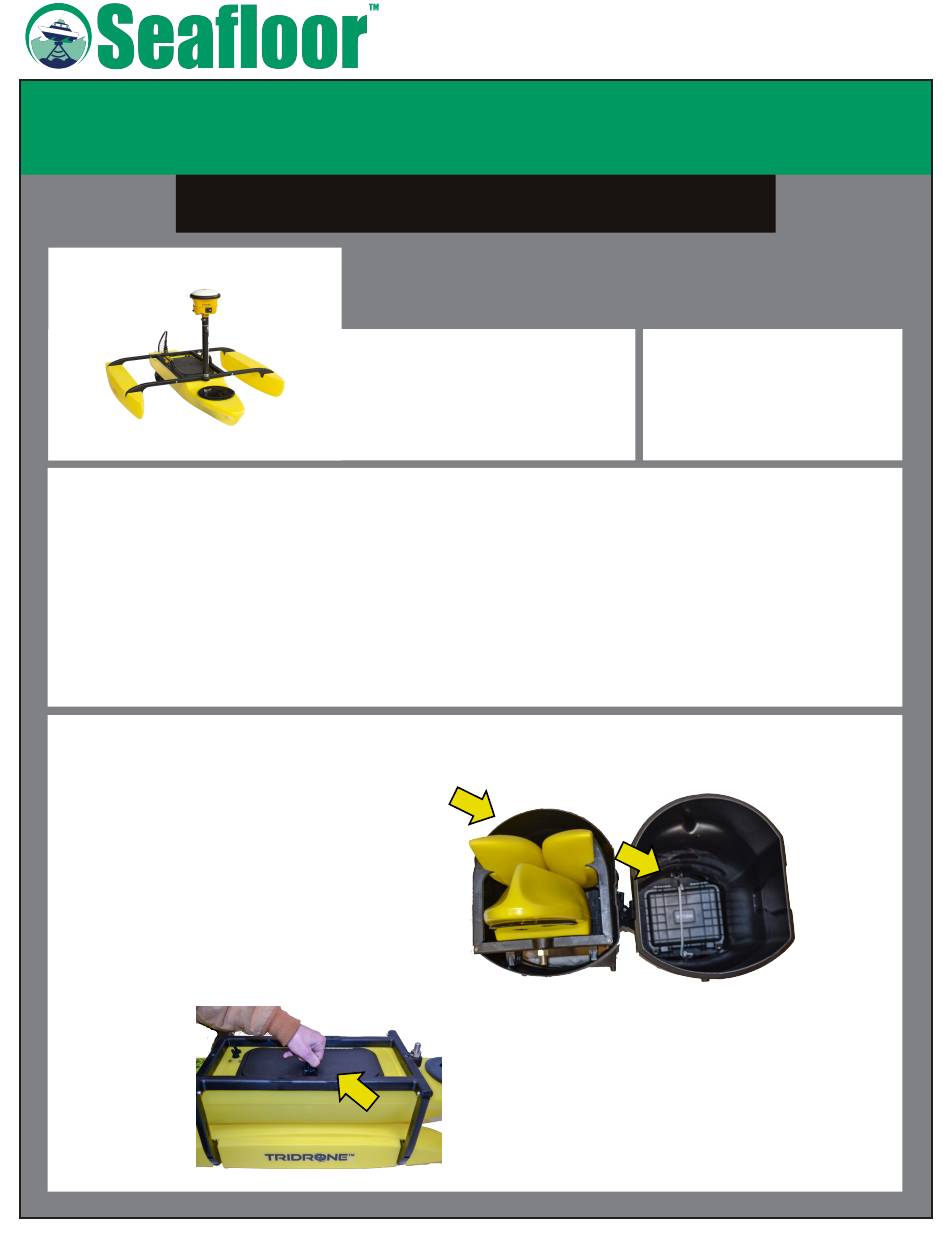

QUICKSTART INSTRUCTIONS

TriDrone Portable Remote Surveying Vessel

THANK YOU FOR PURCHASING SEAFLOOR SYSTEMS' PRODUCTS FOR YOUR SURVEYING NEEDS.

Please read through all of these Instructions and tips before proceeding with the operation. We do our best

to provide a simple setup process for all applications however please contact your nearest authorized

Always disconnect any power sources connected to your vessel before servicing vessel or accessories.

STEP: 1

Remove the vessel from the

case. Remove the remote case

from the top of the lid. Remove all

accessories from accessory pouch

located at the bottom of the case.

- TriDrone USV

- TriDrone Carry Case

- TriDrone Hardware Kit

- Data Collector Cable

IMPORTANT

dealer if you encounter issues.

PRODUCT INCLUDES:

- Accessory Pouch

- Spektrum Remote

Control with case

- USB Drive

- Mast

Table of Contents

Do you have a question about the TriDrone and is the answer not in the manual?

Page 1 - Mast IMPORTANT THANK YOU FOR PURCHASING SEAFLOOR SYSTEMS' PRODUCTS FOR YOUR SURVEYING NEEDS. Please read through all of these Instructions and tips before proceeding with the operation. We do our best to provide a simple setup process for all applications however please contact your nearest authorized dealer if you encounter issues.
Page 2 QUICKSTART INSTRUCTIONS STEP: 2 Attach the thruster to the rear bracket of the vessel and secure by tightening retaining screw. STEP: 3 Insert fully charged 4S battery and connect to power distribution cable. STEP: 4 Open bow hatch lid with provided hatch wrench, and remove lid.
Page 3 QUICKSTART INSTRUCTIONS STEP: 6 Connect data collector cable to transducer. STEP: 7 Attach antenna to the mounting screw located at the front of the frame. STEP: 8 Connect the thruster cable to the bulkhead located at the stern of the vessel.
Page 4 Operation: Be sure to observe and follow all local water safety regulations and procedures. Always operate vessel within line of sight, and immediately stop operation if hazards or safety risks arise. Your setup is now complete. Welcome to the Seafloor Squad! WARRANTY INFORMATION For warranty information, visit https://www.seafloorsystems.com/terms-and-conditions 4415 Commodity Way, Shingle...
