Summary of Contents for iHome AUTO VAC ECLIPSE PRO iHRV11

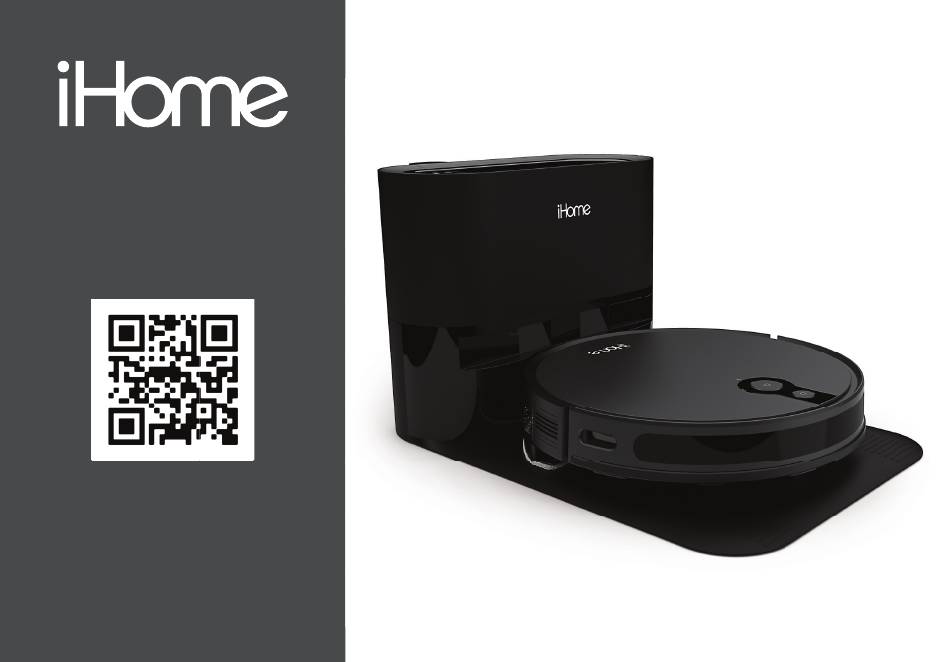

- Page 1 A U T O V A C E C L I P S E P R O For support content and the latest digital copy of this manual, scan the QR code above or visit iHomeclean.com Owner’s Guide Model iHRV11...
-
Page 2: Table Of Contents
Auto Empty Base Overview AUTOVAC Indicators Auto Base Indicators 8 - 10 Setting Up The Auto Empty Base Setting Up The AUTOVAC Using the iHome Clean App Using Your AUTOVAC Using The Remote 15 - 17 Using Powermop Scrub Main Brush Maintenance... -
Page 3: Safety
SAFETY Before using this product, please read the following safety instructions and follow all safety precautions. Any operation inconsistent with this instruction manual may cause damage to this product. WARNING – To reduce the risk of fire, electric shock, or injury: •... -
Page 4: In The Box
IN THE BOX 1 : Auto Empty Base 4: Extra Dust Bag 7: Extra HEPA Filter 1 0 : Extra Side Brush 2: Powermop Scrub Attachment 5: Power Cable 8: Extra Mop Pad 11: Parking Plate 3: Autovac Eclipse Pro 6: Remote 9: Cleaning Tool Questions? Contact Customer Service... -
Page 5: Product Overview
PRODUCT OVERVIEW FRONT BOTTOM BACK 1 : WiFi Indicator 4: Infrared Sensors 7: Detection Sensors 10: Main Brush 13: Bin Release Button 2: Home Button 5: Omnidirectional Wheel 8: Right Wheel 1 1 : 2-IN-1 Dustbin/Mop Tank 14: Dust Collection Port 3: Power Button 6: Side Brush 9: Left Wheel... -
Page 6: Dustbin Overview
DUSTBIN OVERVIEW 1 : Water Fill Cap 4: Dust Collection Port 7: Charging Contacts 2: Filter Door Latch 5: Screen Filter 8: Washable Mop Pad 3: Bin Release Button 6: HEPA Filter 9: Powermop Scrub Attachment... -
Page 7: Auto Empty Base Overview
AUTO EMPTY BASE OVERVIEW NOTE: One dustbag is already pre-installed in the Auto Empty Base. Dustbag may appear to be “defl ated”. This is normal. The Dustbag handle must be fully lowered as shown in order for debris to enter properly. 1 : Cover 4: LED Display Panel 7: Dust Bag... -
Page 8: Autovac Indicators
AUTOVAC INDICATORS POWER BUTTON POWER/HOME LED STATES • Hold to turn on/off. • Flashing blue light: Powering on/confi guring network/upgrading fi rmware. • • Press to start/pause cleaning. Solid blue light: Powered on/normal working state. • Flashing yellow light: Low battery/recharging. •... -
Page 9: Auto Base Indicators
AUTO BASE INDICATORS DUST BAG STATUS • Light off: Functioning Normally. • Solid white light: Dust bag is full/dust duct is blocked. • Flashing red light: Dust bag is not installed/dust bag is not installed correctly. ROBOT CHARGING STATUS • Flashing green light: Charging •... - Page 10 SETTING UP YOUR AUTOVAC The following pages outline the complete setup process. For your convenience we created a step-by-step video to help guide you through setup. Please scan the QR code to access the video and other support content.
-
Page 11: Setting Up The Auto Empty Base
SETTING UP THE AUTO EMPTY BASE ABOUT YOUR AUTO EMPTY BASE The Auto Empty Base is designed to automatically empty and charge the iHome AUTOVAC. Ensure that there is a clear space in front and both sides so that your AUTOVAC can return to Base to re-charge and empty. - Page 12 SETTING UP THE AUTO EMPTY BASE Plug the power cable into the back panel of the Auto Empty base. Wind extra cable Conveniently store parts and remote control as shown. slack around the cord management system. 1: Remote. 2: Extra HEPA Filter 3: Cleaning Tool. 4: Extra Side Brush.
-
Page 13: Setting Up The Autovac
Allow Eclipse Pro to fully charge (up to 5 hours) before fi rst use. The indicators on your robot will turn solid green when fully charged. NOTE: Dust collection may activate during initial docking. Do not be alarmed. Dust collection frequency can be adjusted later in the iHome Clean App. -
Page 14: Using The Ihome Clean App
Eclipse to Wi-Fi . The app will let you manage Eclipse from anywhere, set cleaning schedules, view cleaning history, access support and more! The iHome Clean app provides an easy step by step guide to get your Eclipse Pro connected to Wi-Fi. Here is a checklist of what you’ll need before getting started: •... -
Page 15: Using Your Autovac
Clean App to turn off vacuum suction during a Powermop cycle. Manual Control - Using the navigational D-Pad on the remote control (or in the iHome Clean App) you can manually control where the Eclipse Pro goes to clean. -
Page 16: Using The Remote
USING THE REMOTE Home Button (return to charge) Manual Navigation Directional Keys Start/Pause Button (Starts an Auto Clean Cycle OR pause/resume an existing cleaning cycle) Mute Robot Audio Notifi cations Spot Clean Powermop Scrub 10 - 20 FT Suction Power Adjustment NOTE: 1: It is recommended to point the remote to the front of the Eclipse Pro for best results. -
Page 17: Using Powermop Scrub
USING POWERMOP SCRUB Your Autovac comes equipped with a Powermop Scrub mopping attachment that connects to the 2-in-1 Dustbin/Water Tank. Follow the steps below to initiate wet mopping with your Autovac. Place the mop pad onto the mop attachment and secure it to the Velcro Slide mop attachment onto dustbin as shown in fi gure below until you strips. - Page 18 USING POWERMOP SCRUB Remove the dustbin from the Eclipse Pro with the mop Open the water fi ll cap on the dustbin and fi ll with water, then attachment still installed. close the cap. Please ensure that the mop attachment is connected before fi lling water.
- Page 19 USING POWERMOP SCRUB Install the dustbin with the mop attachement still Activate Powermop Scrub mode in the app or using the installed into the Eclipse Pro according to the fi gure below. remote control.
-
Page 20: Main Brush Maintenance
MAIN BRUSH MAINTENANCE Your Eclipse Pro is designed to be used regularly. As with most fl oor care devices, regular use may cause build-up around brushes, in debris compartments and near fi lters. We recommend performing regular maintenance, as outlined in the following pages, to keep your Autovac Eclipse Pro running at optimal performance. -
Page 21: Maintaining The Dustbin, Filters And Mop
MAINTAINING THE DUSTBIN, FILTERS AND MOP Press the dustbin release button and remove the dustbin. Clean the inside of the dustbin thoroughly with a dry cloth. Remove the primary fi lter and HEPA fi lter, wipe down the surface with Remove the mop pad to wash (machine washable). -
Page 22: Side Brush And Sensor Maintenance
SIDE BRUSH AND SENSOR MAINTENANCE 1: Use a Philips screwdriver to unscrew the side brush screw and remove the side brush. 2: Remove dirt and debris and reinstall using Philips screwdriver. NOTE: It is recommended to replace the side brush every 6-12 months depending on use. Questions? Contact Customer Service Web/Email: iHomeclean.com Phone: 877-370-4580... -
Page 23: Auto Empty Base Maintenance
AUTO EMPTY BASE MAINTENANCE AUTO EMPTY BASE DUST BAG The Auto Empty Base will indicate when the dust bag is full on the smart LED display panel (Dust bag indicator will be white). Discard dust bag once full and replace dust bag with a new one. Full dust bag NOTE: Extend the dust bag handle to seal the debris hole. -
Page 24: Autovac Eclipse Pro Troubleshoot
AUTOVAC Eclipse PRO TROUBLESHOOT PROBLEM SOLUTION Unable to power on Please charge before use. This is commonly caused due to low battery. Unable to start cleaning Please charge before use. This is commonly caused due to low battery. Unable to return to Auto Empty Base •... -
Page 25: Auto Empty Base Troubleshoot
AUTO EMPTY BASE TROUBLESHOOT INDICATOR DEFINITION SOLUTION • Fan error 1. Frequent dust collection leads to fan overheating protection or fan • Overheating malfunction. It is recommended to try to collect dust after 30 minutes; • The cover is not closed properly 2.
