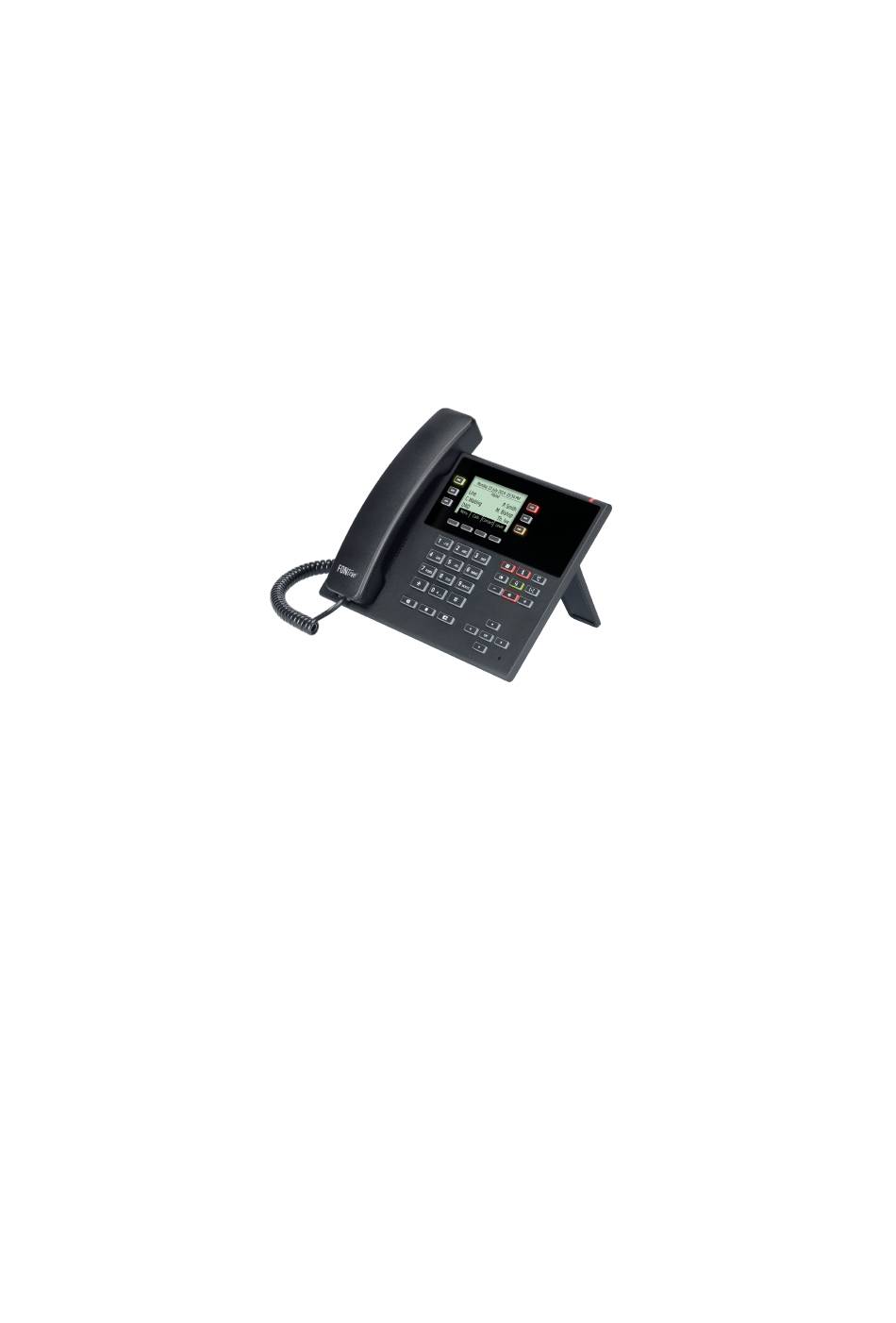

COMfortel D-100 / D-110 / D-200 / D-210
Advanced Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for comfortel D-100

Summary of Contents for comfortel D-100

  • Page 1 V08 05/2022 COMfortel D-100 / D-110 / D-200 / D-210 Advanced Information...

  • Page 2: Table Of Contents

    On no reply....................45 Call type......................46 Call waiting.....................47 Caller list......................49 Overview of call lists...................50 Redial List....................51 Missed calls....................53 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 2 -...
  • Page 3 Idle state......................85 InterCom......................86 Jitter buffer..................... 88 Language and location.................. 89 LDAP......................90 LLDP.......................92 Logging......................93 Loudspeaker listening mode................94 Music on hold....................95 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 3 -...
  • Page 4 Roaming User....................121 Silent Call..................... 123 SIP........................124 SIPS......................126 Sound......................127 Speed dial....................129 SRTP......................131 Trace......................132 Transferring calls..................134 Call transfer types..................135 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 4 -...
  • Page 5 Device Overview..................... 177 Front View....................178 Rear View.....................181 Using the Web Interface................. 184 Basic Knowledge..................185 Opening the web interface............... 186 Operating Instructions................188 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 5 -...
  • Page 6 CF ext. calls: Immediately..............221 CF ext. calls: On busy................222 CF ext. calls: On no reply..............223 Do not disturb..................224 DTMF-Relay...................225 Group..................... 226 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 6 -...
  • Page 7 Basic Settings................... 261 Restart and factory reset................262 Schedule....................263 Network......................264 Current Settings..................265 IPv4......................267 IPv6......................269 VLAN......................271 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 7 -...
  • Page 8 User administration................... 307 Settings..................... 309 Backup and restore..................311 Access......................312 General settings..................313 Developer options..................314 Action URL.................... 315 Logging....................316 Telephone menu..................317 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 8 -...
  • Page 9 LED signalling on function keys............349 Casing LED................... 355 Selecting a Key Level................356 Changing the input mode..............357 Calls......................358 Navigation....................359 Menu......................360 Contacts....................... 362 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 9 -...
  • Page 10 Function codes................... 394 Audio....................395 Security....................396 Outbound proxy.................. 398 Fallback for..................400 Ringer Tone..................401 Sound......................402 Language and location................403 Display and LED..................404 Telephony....................407 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 10 -...
  • Page 11 CF ext. calls: On busy............... 433 CF ext. calls: On no reply..............434 Do not disturb..................435 DTMF-Relay..................436 Group....................437 Group (incoming)................438 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 11 -...
  • Page 12 Codec......................465 DHCP......................466 Dial preparation..................467 DNS......................468 Domain...................... 469 Downdate....................470 DTMF......................471 EHS......................472 End device....................473 Ethernet.....................474 Firewall...................... 475 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 12 -...
  • Page 13 NTP......................494 Open source licenses................495 PoE......................496 POP3......................497 Port......................498 Prefetch..................... 499 Using provisioning..................500 Redirect Server..................501 Registrar....................502 router......................503 RTP......................504 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 13 -...
  • Page 14 520 URI......................521 URL......................522 VLAN......................523 VoIP......................524 VoIP account.....................525 VoIP address.................... 526 VoIP provider.................... 527 VPN......................528 XML......................529 Abbreviations....................530 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 14 -...

  • Page 15: Information About Release 2.2

    Until now, the display name assigned to the call under Identities was sent. It is now possible to prioritise the selection. For more information, see Varying display names. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 15 -...
  • Page 16 Signalling call types using icons An appropriate icon is now displayed for the Exchange line and Group call types. For more information, see System icons. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 16 -...
  • Page 17 For more information, see User roles and permissions. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 17 -...

  • Page 18: About These Instructions

    About these instructions About these instructions Gender Notice Trademarks Licenses Instructions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 18 -...

  • Page 19: Gender Notice

    The English-language documentation does not use gender-specific forms of address. Any references to persons apply to all people of all genders. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 19 -...

  • Page 20: Trademarks

    Windows and ActiveSync are registered trademarks of Microsoft Corporation in the USA and/or other countries. All other trademarks mentioned are the property of the relevant manufacturer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 20 -...

  • Page 21: Licenses

    GPL, the LGPL or other licenses. To view the licences, select Settings > About phone > Licences. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 21 -...

  • Page 22: Instructions

    You will find the Operating Manual and the Quick Guide on our web site. After an update, you usually require a new version of the instructions. You will find these on our website. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 22 -...

  • Page 23: Functions And Applications

    Device Information Dial a Subscriber Number Manually Display and LED Do not disturb Fallback identity Function keys Function templates Hands-free calling mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 23 -...
  • Page 24 Passwords Pick-Up Query Calls Redial List Reset to default Reverse search Roaming User Silent Call SIPS Sound Speed dial SRTP Trace COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 24 -...
  • Page 25 Functions and Applications Transferring calls Update User roles and permissions Using provisioning Voicemail number XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 25 -...

  • Page 26: Information About The Section

    Information about the section Information about the section This section describes how to configure and use the functions on your phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 26 -...

  • Page 27: Action Url

    Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 27 -...
  • Page 28 *conference Conference call DTMF *dtmf 2. If a token is used for authentication, the token must be sent in the request header. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 28 -...
  • Page 29 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 29 -...

  • Page 30: Anonymous Call

    Details about the settings are in Anonymous call Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 30 -...
  • Page 31 CLIR (number presentation suppression) type as is set on the PBX/at the provider. Details about the settings are in Options for experts Details about the settings are in Function codes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 31 -...

  • Page 32: Automatic Call Acceptance

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 32 -...

  • Page 33: Automatic Start Of Call

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 33 -...

  • Page 34: Backup And Restore

    • Connection data sets with the destination, source, and time information for a telecommunication connection. • Potentially WLAN passwords • VPN information and VPN credentials COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 34 -...
  • Page 35 Configuration Web interface: • Backup and restore Details about the settings are in Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 35 -...

  • Page 36: Call

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 36 -...
  • Page 37 Note: If you want to end the current call, and then immediately make a new call, press the soft key End and then start dial the next number. Description of the operation under Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 37 -...

  • Page 38: Call Bindings

    You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 38 -...

  • Page 39: Call Completion

    2. Press the appropriate soft key to activate the automatic callback. 3. A notification is displayed as soon as the called number is no longer busy. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 39 -...
  • Page 40 4. Confirm the notification to call the subscriber, who is now free. 5. The callback process is then deleted in the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 40 -...

  • Page 41: Call Forwarding

    Call forwarding Call forwarding General Immediately On busy On no reply COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 41 -...

  • Page 42: General

    You can make the following settings: • Type of call forwarding (Immediately, On busy, By time) • Call forwarding destination • Waiting time before call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 42 -...

  • Page 43: Immediately

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 43 -...

  • Page 44: On Busy

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 44 -...

  • Page 45: On No Reply

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 45 -...

  • Page 46: Call Type

    • External call • Internal call • Group calling (a call made to a specific group) • External recall • Internal recall COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 46 -...

  • Page 47: Call Waiting

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 47 -...
  • Page 48 The call waiting caller also hears the ringing tone until the called person lifts their handset. You are now connected to the first call partner. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 48 -...

  • Page 49: Caller List

    Caller list Caller list Overview of call lists Redial List Missed calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 49 -...

  • Page 50: Overview Of Call Lists

    Details about the settings are in All call lists COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 50 -...

  • Page 51: Redial List

    • OK • Headset • Loudspeaker • softkey Menu > Call> OK Deleting Entries from the Redial List • Entire list: Clear COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 51 -...
  • Page 52 Redial List • Entire list: Clear (approx. 2 seconds) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 52 -...

  • Page 53: Missed Calls

    • Headset • Loudspeaker • softkey Menu > Call> OK Deleting Entries from the List of Missed Calls • Entire list: Clear COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 53 -...
  • Page 54 Note: You cannot use the Message button to display seen missed calls if the display has been set to Disabled in the Display and LED > Seen missed calls menu option. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 54 -...

  • Page 55: Central Caller List

    If the telephone is not registered when it receives an incoming call, or if an update is being performed, the list in the telephone is updated when the connection is restored. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 55 -...
  • Page 56 (if this function is enabled). Further help under Roaming User Requirement for use The function is enabled in the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 56 -...

  • Page 57: Certificate

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 57 -...

  • Page 58: Codecs

    Details about the settings are in Audio Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 58 -...

  • Page 59: Conference Call

    The conference call is cancelled. One subscriber is put on hold and there is an active connection with the other subscriber. You can change between holding a call and an active call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 59 -...
  • Page 60 Ending a conference call completely If you initiated the conference call, you can end the conference call completely. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 60 -...

  • Page 61: Contact

    Contacts to whom calls are made frequently can also be displayed in the Favorites list. Contacts can be saved using backup. Details about the settings are in Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 61 -...
  • Page 62 Edit:Displays the menu in which you edit a saved contact. E. →Fav. / →Fav.:Turns a contact into a favourite or favourite into a normal contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 62 -...
  • Page 63 • You cannot delete or edit LDAP contacts, or mark them as a favourite. 2 soft keysDelete , →Fav. and Editare not offered. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 63 -...

  • Page 64: Cti

    The implementation of CTI takes place in the devices of the COMfortel D- series via Action-URL. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 64 -...

  • Page 65: Date And Time

    Details about the settings are in Date and time Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 65 -...

  • Page 66: Device Information

    Details about the settings are in Status information Phone: • Settings > About phone Details about the settings are in About phone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 66 -...

  • Page 67: Dial A Subscriber Number Manually

    Back Description of the operation under Dialled calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 67 -...

  • Page 68: Display And Led

    Details about the settings are in Display and LED Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 68 -...

  • Page 69: Do Not Disturb

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 69 -...

  • Page 70: Fallback Identity

    Details about the settings are in Options for experts Phone: • Settings > Identities > Options for experts > Fallback for COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 70 -...
  • Page 71 1. In the "Fallback for" list, select the identity that is to be covered by a second if it becomes necessary. 2. Save COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 71 -...

  • Page 72: Function Keys

    Details about the settings are in Function keys Phone: • Settings > Function keys Details about the settings are in Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 72 -...
  • Page 73 • directional pad Left and Right keys • softkeyLevel in the Choose a key: Change between key levels by pressing the following key: • softkeyLevel COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 73 -...
  • Page 74 You can use the templates in a provisioning file to extend the range of functions on the phone. These additional functions can be assigned to function keys. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 74 -...
  • Page 75 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 75 -...

  • Page 76: Function Templates

    Details about the settings are in Using provisioning Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 76 -...

  • Page 77: Hands-Free Calling Mode

    This enables you to phone if you don't have a hand free. Other people in the room can take part in the call. Description of the operation under Hands-Free Calling COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 77 -...

  • Page 78: Headset Mode

    • Initiating the listen-in function on the receiver • Ending the listen-in function through the receiver Description of the operation under Headset Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 78 -...

  • Page 79: Identities

    Identities Identities General VoIP provider COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 79 -...

  • Page 80: General

    Caution: The default identity does not switch automatically. If a default identity fails, the LED on the appropriate function key lights up red. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 80 -...

  • Page 81: Pbx

    • Identities > Display settings Details about the settings are in Identities Phone: • Settings > Identities Details about the settings are in Identities Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 81 -...
  • Page 82 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 82 -...

  • Page 83: Voip Provider

    • Identities > Display settings Details about the settings are in Identities Phone: • Settings > Identities Details about the settings are in Identities Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 83 -...
  • Page 84 VoIP provider You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 84 -...

  • Page 85: Idle State

    Details about the settings are in Display and LED Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 85 -...

  • Page 86: Intercom

    Details about the settings are in Automatic call acceptance Phone: • Settings > Telephony > Automatic call acceptance Details about the settings are in Telephony Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 86 -...
  • Page 87 InterCom destination. 3. A bi-directional connection is then present between the InterCom source and InterCom destination without a call being actively taken. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 87 -...

  • Page 88: Jitter Buffer

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 88 -...

  • Page 89: Language And Location

    Note: In the web interface, you can set both the language and location, both for the web interface and for the phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 89 -...

  • Page 90: Ldap

    LDAP filter syntax is used. RFC 2254 and RFC 4515 are used. Phone: • Settings > LDAP Details about the settings are in Contacts/LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 90 -...
  • Page 91 LDAP Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 91 -...

  • Page 92: Lldp

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 92 -...

  • Page 93: Logging

    Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 93 -...

  • Page 94: Loudspeaker Listening Mode

    The call is continued using the microphone in the receiver (not hands-free operation). Description of the operation under Loudspeaker listening COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 94 -...

  • Page 95: Music On Hold

    Details about the settings are in Audio Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 95 -...

  • Page 96: Nat

    Details about the settings are in Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 96 -...

  • Page 97: Network

    Network Network General IPv4 IPv6 VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 97 -...

  • Page 98: General

    These protocols can be set up for the device: • IPv4 • IPv6 • VLAN • VPN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 98 -...

  • Page 99: Ipv4

    Auerswald DokuWiki Note: At least one protocol must be enabled and configured. IPv4 cannot be disabled if IPv6 is disabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 99 -...

  • Page 100: Ipv6

    Auerswald DokuWiki Note: At least one protocol must be enabled and configured. IPv6 cannot be disabled if IPv4 is disabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 100 -...

  • Page 101: Vlan

    Details about the settings are in VLAN Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 101 -...

  • Page 102: Vpn

    Details about the settings are in Provisioning: Note: An example configuration, for a FRITZ!box (a German DSL modem/router), is described in the Auerswald DokuWiki. This COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 102 -...
  • Page 103 − IPsecIdentifier − Forwarding routes − preinstalled IPsecSecret 4. Load files for these parameters: − IPsecUserCert − IPsecUserPrivateKey − IPsecCaCert − IPsecServerCert COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 103 -...
  • Page 104 IPsec Hybrid RSA can vary greatly, depending on which server is in use. The network administrator must predefine the configuration. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 104 -...

  • Page 105: Topology

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 105 -...

  • Page 106: Notifications

    Details about the settings are in Identities Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 106 -...

  • Page 107: Outbound Proxy

    Details about the settings are in Outbound proxy Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 107 -...

  • Page 108: Park Position

    Note: The phone number/URI to be assigned consists of the internal base phone number assigned in the PBX for the open query call and the park position (0 to 9). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 108 -...
  • Page 109 • If the hold time expires a second time, without the call being taken, the connection is disconnected and the caller hears the busy signal. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 109 -...

  • Page 110: Passwords

    • From the factory settings: Password dialogue is displayed when user enters phone's IP address in web browser • User Details about the settings are in User Phone: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 110 -...
  • Page 111 Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 111 -...

  • Page 112: Pick-Up

    Pick-Up Pick-Up Pick-up in idle state Pick-up during a call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 112 -...

  • Page 113: Pick-Up In Idle State

    • Function key with the speed dial for the internal phone that is to be called configured on it COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 113 -...

  • Page 114: Pick-Up During A Call

    • Function key with the speed dial for the internal phone that is to be called configured on it COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 114 -...

  • Page 115: Query Calls

    Alternatively, one of the call partners can simply hang up so that you can continue talking with the other call partner. Description of the operation under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 115 -...
  • Page 116 If you would like to let your call partners speak with each other, you can connect them. Description of the operation under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 116 -...

  • Page 117: Redial List

    Redial List Redial List Description of the operation under Redial List COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 117 -...

  • Page 118: Reset To Default

    • Settings > Update > Reset to default • Follow the instructions in Procedure directly on the device Details about the settings are in Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 118 -...
  • Page 119 The phone is not reset to its default settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 119 -...

  • Page 120: Reverse Search

    Details about the settings are in Reverse search Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 120 -...

  • Page 121: Roaming User

    Roaming User authorisation must be assigned to the user in the PBX. Process for logging onto/logging off the telephone 1. The function key Login / Logout is provisioned by the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 121 -...
  • Page 122 Further help under Central caller list You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 122 -...

  • Page 123: Silent Call

    2. Activate Provisioning from PBX search. 3. Enter the relevant Provisioning server URL. 4. Set up a function key with the extended function provided by provisioning. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 123 -...

  • Page 124: Sip

    Internet services are implemented with TCP, e.g., HTTP (WWW), SMTP/POPS (e-mail), etc. Configuration Web interface: • Identities > Options for experts COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 124 -...
  • Page 125 Details about the settings are in Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 125 -...

  • Page 126: Sips

    Details about the settings are in Security Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 126 -...

  • Page 127: Sound

    4. The identity has a specific ringtone. 5. A defined default ringtone is used. 6. The Android fallback ringtone is used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 127 -...
  • Page 128 3. When you confirm your ringtone selection, the menu closes. The selected sound is then used as the default for incoming calls. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 128 -...

  • Page 129: Speed Dial

    Configuration Web interface: • Function keys > Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 129 -...
  • Page 130 Details about the settings are in Speed dial Phone: • Settings > Function keys > Speed dial Details about the settings are in Speed dial Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 130 -...

  • Page 131: Srtp

    Details about the settings are in Security Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 131 -...

  • Page 132: Trace

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 132 -...
  • Page 133 4. The file is saved automatically and displayed in the browser's downloads list. Contact Auerswald Support/ FONtevo Support, to arrange for it to be analysed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 133 -...

  • Page 134: Transferring Calls

    Transferring calls Call transfer types Transfer the call with an announcement Transferring a call without an announcement Calling a 3rd internal subscriber COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 134 -...

  • Page 135: Call Transfer Types

    • Transfer the call without announcement (blind transfer) • Calling a 3rd internal subscriber and connecting them to an active call partner COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 135 -...

  • Page 136: Transfer The Call With An Announcement

    To transfer a call, a query call is placed. The call is announced. The two call partners are connected with each other. Description of the operation under Transferring calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 136 -...

  • Page 137: Transferring A Call Without An Announcement

    (the phone rings) after 2 minutes (or as set on the PBX or at the provider). Description of the operation under Transferring calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 137 -...

  • Page 138: Calling A 3Rd Internal Subscriber

    To do so, a third call is triggered and the second subscriber is connected to the third subscriber. The original, existing call continues. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 138 -...

  • Page 139: Update

    Manual Update During a manual update, the downloading of the update is triggered manually. After the update, the phone restarts automatically. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 139 -...
  • Page 140 In the case of an automatic update from the update server, a regular (e.g. weekly) automatic update can be configured. You can set the weekday and time. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 140 -...
  • Page 141 Is automatic update is not enabled, the system only checks for a newer version of the firmware during this time period. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 141 -...
  • Page 142 Update If there is a newer version of the firmware, you are informed in a message on the screen. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 142 -...

  • Page 143: User Roles And Permissions

    (username, password) can be edited. Phone The phone does not distinguish between authorisation levels. The displays are the same for all users. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 143 -...
  • Page 144 Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 144 -...

  • Page 145: Using Provisioning

    The URL is required if provisioning is not performed using DHCP data or a redirect server. • SIP provisioning The phone is configured using incoming SIP messages. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 145 -...
  • Page 146 Details about the settings are in Using provisioning Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 146 -...
  • Page 147 − Provisioning from PBX search − Provisioning server URL You can select combinations of these options. 2. Select Start provisioning. Provisioning is performed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 147 -...
  • Page 148 • Switch on SIP provisioning. You will find more information on configuration via SIP messages and also the provisioning process in the Auerswald DokuWiki. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 148 -...

  • Page 149: Voicemail Number

    • COMmander 6000/R/RX: COMmander VMF module • COMpact 5010 VoIP: COMpact 2VoIP module • COMpact 5020 VoIP: COMpact 2VoIP or 6VoIP module COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 149 -...
  • Page 150 Details about the settings are in Function codes Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 150 -...

  • Page 151: Xml Minibrowser

    Details about the settings are in XML Minibrowser Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 151 -...
  • Page 152 Further help in the Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 152 -...

  • Page 153: Telephoning

    Incoming calls Call-Waiting Calls Dialled calls Call Query Calls Transferring calls Conference call Hands-Free Calling Loudspeaker listening Headset Call Caller list Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 153 -...

  • Page 154: Information About The Section

    To create/end a connection Pick up the receiver Loudspeaker Headset softkeyAccept / End reject a call softkeyReject COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 154 -...
  • Page 155 Information about the section Back Holding a call/Reconnecting from a call that is on hold Hold COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 155 -...

  • Page 156: Incoming Calls

    Pick up the receiver Headset Loudspeaker softkeyAccept Rejecting a call softkeyReject Putting an accepted call on hold Hold Reconnecting an on-hold call Hold COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 156 -...
  • Page 157 Incoming calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 157 -...

  • Page 158: Call-Waiting Calls

    Further help under Call waiting Forwarding Transfer > Enter destination number > Loudspeaker Transfer destination number > OK Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 158 -...

  • Page 159: Dialled Calls

    > You have missed calls.> OK Message key > select the required phone number > pick up the receiver Further help under Missed calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 159 -...
  • Page 160 Note: If more than one number is stored for a contact, you can select the number to call before you pick up the receiver. Further help under Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 160 -...

  • Page 161: Call

    Muting a call Microphone Switching off muting To do this, press Microphone again COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 161 -...
  • Page 162 Further help under Call Sending a DTMF signal during a call To do this, enter digits and special characters Further help under Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 162 -...

  • Page 163: Query Calls

    Splitting a call (during a query call) Select the call partner to whom you want to change > Hold Further help under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 163 -...
  • Page 164 Connecting the two call partners to each other To do this, hang up the receiver softkeyJoin Further help under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 164 -...

  • Page 165: Transferring Calls

    > softkeyDial> enter destination number > OK > softkeyJoin> To do this, hang up the receiver Further help under Transferring a call without an announcement COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 165 -...

  • Page 166: Conference Call

    Connecting the other two conference call partners to each other softkeyJoin Further help under Conference call Splitting a conference call softkeySplit COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 166 -...
  • Page 167 Conference call Ending a conference call completely To do this, hang up the receiver Conference call> softkeyEnd Further help under Conference call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 167 -...

  • Page 168: Hands-Free Calling

    Further help under Automatic start of call Further help under Hands-free calling mode Ending a call in hands-free calling mode softkeyEnd COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 168 -...
  • Page 169 Hands-Free Calling Loudspeaker Back Further help under Hands-free calling mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 169 -...

  • Page 170: Loudspeaker Listening

    Ending a call in loudspeaker listening mode To do this, hang up the receiver softkeyEnd Further help under Loudspeaker listening mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 170 -...

  • Page 171: Headset Call

    Personally initiating a call when headset operation is switched on (headset LED is shining green) Headset softkeyAccept Further help under Headset mode Transferring an active call to the headset Headset COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 171 -...
  • Page 172 Cancelling the listen-in function on the receiver during a headset call To do this, hang up the receiver Further help under Headset mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 172 -...

  • Page 173: Caller List

    Options for displaying entries in an active list softkey Menu (hold down the key for approx. 2 sec. .) Further help under Caller list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 173 -...
  • Page 174 (hold down the key for approx. 2 sec. .) Further help under Caller list Calling from an opened call history Pick up the receiver COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 174 -...
  • Page 175 Menu > Call> OK Loudspeaker Headset Further help under Caller list To leave the call history Back Further help under Caller list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 175 -...

  • Page 176: Pick-Up

    > enter pick-up code an phone number of the internal phone > pick up the receiver or confirm with OK Further help under Pick-up during a call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 176 -...

  • Page 177: Device Overview

    Device Overview Device Overview Front View Rear View COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 177 -...

  • Page 178: Front View

    2. Function keys (3x on each side) 3. Dedicated function keys 4. OK 5. Directional pad keys (Up, Down, Right, Left) 6. Back COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 178 -...
  • Page 179 10. Soft keys: situation-dependent function keys below the display (4x) A. Microphone B. Hold C. Transfer D. plus E. Headset F. Loudspeaker G. minus H. Redialling Messages COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 179 -...
  • Page 180 Front View Keys and LEDs on the key extension module A. Function keys (10x on each side) B. control rocker COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 180 -...

  • Page 181: Rear View

    The next figures show the connections on the bottom of the different devices. ® COMfortel D-100/D-110 A. Network port B. Direct PC connection via network cable C. Headset socket D. Receiver socket COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 181 -...
  • Page 182 F. Rubber cover: to connect a COMfortel D-XT20/D-XT20i key extension module, remove the cover and attach it to the extension module. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 182 -...
  • Page 183 B. USB port (e.g. for connecting another COMfortel D-XT20/D-XT20i key extension module) C. Micro-USB port: use this to connect the telephone to the key extension module COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 183 -...

  • Page 184: Using The Web Interface

    Display and LED Function keys Using provisioning Identities Update Network LDAP Telephony Sound Date and time User Backup and restore Access COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 184 -...

  • Page 185: Basic Knowledge

    Basic Knowledge Basic Knowledge Opening the web interface Operating Instructions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 185 -...

  • Page 186: Opening The Web Interface

    Caution: Passwords that are unchanged from the factory settings are a security risk. Change the password in the dialogue without delay. 3. Click on Login. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 186 -...
  • Page 187 Opening the web interface You are now logged into the web interface and can make settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 187 -...

  • Page 188: Operating Instructions

    Operating Instructions Operating Instructions Overview Fields and User Elements Appearance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 188 -...

  • Page 189: Overview

    C. Display or hide vertical navigation. If the menu structure on the left is being displayed, a vertical navigation is displayed. D. Breadcrumb navigation COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 189 -...
  • Page 190 The topic selected using the vertical navigation is displayed here. G. Displays or hide the help system. H. Help system Save COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 190 -...

  • Page 191: Fields And User Elements

    { } curly brackets Active text input field. Text input field that is already filled. Text input field that is locked for processing. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 191 -...
  • Page 192 The position of the slider identifies where the setting is. Drag the slider to the left to reduce the value. Drag the slider to the right to increase the value. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 192 -...

  • Page 193: Appearance

    (e.g. Mozilla Firefox under View > Zoom > Normal or Ctrl + 0). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 193 -...

  • Page 194: Dashboard

    Dashboard Dashboard Status information Language and location Device name COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 194 -...

  • Page 195: Status Information

    Displays the update system version in use on your device. Bootloader version Displays the bootloader version in use on your device. Serial number Displays your device's serial number. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 195 -...
  • Page 196 If the phone malfunctions, a log can be recorded. It can then be sent to the technical departments (Service, Development) so that the cause of the fault can be investigated. Further help under Trace COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 196 -...
  • Page 197 Here, you can display the following license information: • End User License Agreement for Software (EULA) • Data protection • Open source licenses COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 197 -...

  • Page 198: Language And Location

    Audio frequencies (pitches, pulse/pause characters and/or ringing tones), and also the time and time format, are different for each selected location. Further help under Language and location COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 198 -...

  • Page 199: Device Name

    Device name Device name Device name The name you assign to the device. Further help under Device Information COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 199 -...

  • Page 200: Display And Led

    Display and LED Display and LED Basic Settings LED notifications COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 200 -...

  • Page 201: Basic Settings

    Note: Any changes you make to the brightness affect on all key extension modules that are connected. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 201 -...

  • Page 202: Led Notifications

    Further help under Display and LED Heard voice messages Sets the message key LED's reaction to heard voice messages. • LED lights up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 202 -...
  • Page 203 Controls the behaviour of the message key LED. If this option is deselected, the message key LED are switched off permanently. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 203 -...

  • Page 204: Function Keys

    Function keys Function keys Overview Edit function keys Edit parameters Edit Icon COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 204 -...

  • Page 205: Overview

    Click on the selected key to open the Edit function keys window E. Level 2 (opens when you pass over it with the mouse) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 205 -...
  • Page 206 3 levels. B. Lists all 3 possible levels to which a function can be assigned C. Display COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 206 -...
  • Page 207 Note: If a key already has a function assigned to it, the LED shines orange. You can assign a different function. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 207 -...

  • Page 208: Edit Function Keys

    Details about the settings are in Edit Icon Key label Displayed beside each function key on the screen. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 208 -...
  • Page 209 Deletes the functions assigned to the key on all levels. Cancel Closes the menu without adopting changes. Save Saves the entered parameters and close the window. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 209 -...

  • Page 210: Edit Parameters

    CF ext. calls: On busy CF ext. calls: On no reply Do not disturb DTMF-Relay Group Group (incoming) Group (outgoing) Park position Relays XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 210 -...

  • Page 211: Speed Dial

    Note: Pickup should not be used if the key is only used to switch functions in the PBX using a programming code. Deactivate Pickup in that case. Further help under Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 211 -...
  • Page 212 If this function is enabled, missed calls associated with the speed dial number are signalled with flashing green LEDs. Further help under Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 212 -...

  • Page 213: Identity

    Identity Identity Identity Identity used to trigger subsequent calls. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 213 -...

  • Page 214: Activate Config

    Identity for which this function is set up. Further help under Identities Configuration id The PBX assigns the configuration ID automatically. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 214 -...

  • Page 215: Anonymous Call

    Anonymous call Anonymous call No parameters necessary. Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 215 -...

  • Page 216: Automatic Configuration Switching

    Identification number for system relay with Automatic configuration switchover operating mode (900, in the factory settings). Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 216 -...

  • Page 217: Call Forwarding Immediately

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 217 -...

  • Page 218: Call Forwarding On Busy

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 218 -...

  • Page 219: Call Forwarding On No Reply

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 219 -...

  • Page 220: Call Waiting

    Call waiting Call waiting No parameters necessary. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 220 -...

  • Page 221: Cf Ext. Calls: Immediately

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 221 -...

  • Page 222: Cf Ext. Calls: On Busy

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 222 -...

  • Page 223: Cf Ext. Calls: On No Reply

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 223 -...

  • Page 224: Do Not Disturb

    Do not disturb Identity Identity for which this function is set up. Further help under Identities Further help under Do not disturb COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 224 -...

  • Page 225: Dtmf-Relay

    DTMF-Relay DTMF-Relay DTMF sequence Numbers needed to perform the required function. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 225 -...

  • Page 226: Group

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 226 -...

  • Page 227: Group (Incoming)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 227 -...

  • Page 228: Group (Outgoing)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 228 -...

  • Page 229: Park Position

    Number/URI Phone number of the park position. Identity Identity for which this function is set up. Further help under Park position COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 229 -...

  • Page 230: Relays

    This function key is not suitable for manual relays. For additional Information, refer to the Advanced Information about the PBX. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 230 -...

  • Page 231: Vpn

    No parameters necessary. Further help under Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 231 -...

  • Page 232: Xml Minibrowser

    XML Minibrowser XML Minibrowser Number/URI Web server address Further help under XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 232 -...

  • Page 233: Edit Icon

    Saves the icon locally with a size of 64 x 64 px asicon.png. Further help under Function keys Applies the icon for these views: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 233 -...
  • Page 234 Tool for adjusting the icon's image size and screen window. Further help under Function keys Icon Preview Displays a preview of the final icon. Further help under Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 234 -...

  • Page 235: Using Provisioning

    Using provisioning Using provisioning Basic Settings Schedule SIP provisioning Additional function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 235 -...

  • Page 236: Basic Settings

    Using provisioning Provisioning from PBX search Automatic provisioning of the phone is performed via the PBX. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 236 -...
  • Page 237 Provisioning server URL This URL is required if it is not obtained via DHCP or a redirect server. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 237 -...

  • Page 238: Schedule

    Note: After a reboot, a random time between 00:00 and 05:00 is entered for provisioning. This prevents load spikes on the server. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 238 -...

  • Page 239: Sip Provisioning

    SIP provisioning SIP provisioning SIP provisioning Starts remote configuration using SIP messages. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 239 -...

  • Page 240: Additional Function Templates

    Additional function templates Vendor templates Activates templates and scripts that are specially designed to run on Auerswald/FONtevo PBXs. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 240 -...

  • Page 241: Identities

    Identities Identities Managing Identities Basic Settings Options for experts Codecs Registrar Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 241 -...

  • Page 242: Managing Identities

    E. Activate/deactivate an identity F. Identity deactivated G. Resets the selected identity H. SIP Registrar Display name J. SIP Username K. Status L. Active COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 242 -...

  • Page 243: Basic Settings

    VoIP provider when the identity was being created or the password entered in the PBX. Further help under Identities Display name Freely selectable name. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 243 -...
  • Page 244 PBX can be accessed. Further help under Identities Ringer Tone Assigns a ringtone to the identity. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 244 -...

  • Page 245: Options For Experts

    Selection as set in the PBX/at the provider. Anonymous The sent display text in the From header is "anonymous". COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 245 -...
  • Page 246 If a connection or call is on hold, the "music on hold" is played. Further help under Music on hold IP version IPv4 Sets IPv4 for the registrar. IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 246 -...
  • Page 247 Further help under SRTP SIPS Activates the transmission of encrypted SIP messages over TLS for connections with this identity. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 247 -...
  • Page 248 Note: When the SIP session timer is switched on, this may result in the call being interrupted more frequently after the specified interval, if COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 248 -...
  • Page 249 Further help under Important: If encryption using SIPS is enabled, the TCP transport protocol is used. Manual settings are overwritten. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 249 -...
  • Page 250 The set number of seconds doubles after each attempt to subscribe on the PBX/provider. Further help under Subscription: Interval in seconds Sets the time gap between two subscription attempts. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 250 -...
  • Page 251 Further help under Register: Interval in seconds Sets the time gap between two registration attempts. Minimum: 1 sec Default: 10 sec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 251 -...

  • Page 252: Codecs

    You can select inactive codecs and drag & drop them in the "Active" list to arrange them, or remove them from the list. Further help under Codecs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 252 -...

  • Page 253: Registrar

    Caution: Each time a port is opened on the router, this creates a potential security risk. It is essential you put additional protective measures in place. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 253 -...
  • Page 254 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 254 -...

  • Page 255: Nat

    The router which connects the local area network with the Internet should be a properly functioning SIP-aware router which performs NAT traversal. Further help under RTP NAT traversal Requirement: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 255 -...
  • Page 256 As a rule, this is reported with error message 503 during SIP registration. If this problem occurs, it is recommended to raise the value (e.g. to 180). Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 256 -...
  • Page 257 Enable the best possible transmission route to be found between the phone and PBX/provider. Note: ICE must only be activated if the other end supports ICE. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 257 -...

  • Page 258: Outbound Proxy

    Server address for the outbound proxy. Note: The URL must be filled out if mode Manually is selected. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 258 -...
  • Page 259 Alternative server address for the outbound proxy. Further help under Outbound proxy Alternative port Alternative port for the outbound proxy. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 259 -...

  • Page 260: Update

    Update Update Basic Settings Restart and factory reset Schedule COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 260 -...

  • Page 261: Basic Settings

    In the default settings: https://update.auerswald.de Further help under Update Start update Starts installation of a new firmware version. Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 261 -...

  • Page 262: Restart And Factory Reset

    Resets the telephone to the factory settings. Any saved data and settings are deleted. The phone is shut down and then restarted. Further help under Reset to default COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 262 -...

  • Page 263: Schedule

    Further help under Update Time Time at which the phone checks for available updates and installs them. Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 263 -...

  • Page 264: Network

    Network Network Current Settings IPv4 IPv6 VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 264 -...

  • Page 265: Current Settings

    Different subnet mask notation. Example: 24 corresponds to 255.255.255.0 Forwarding routes Protocol Shows which network protocol is being used by the forwarding route. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 265 -...
  • Page 266 If only one router is in use, the DNS's IP address is the same as that of the gateway. If more than one server is being used to handle these tasks, the IP addresses will be different. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 266 -...

  • Page 267: Ipv4

    If you select DHCP: the phone's IP address is displayed If you select Static: you can enter/change the phone's IP address In the factory settings: 0.0.0.0. Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 267 -...
  • Page 268 DNS server. The provider or network system administrator sets the DNS server. Further help under IPv4 DNS 2 Optional Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 268 -...

  • Page 269: Ipv6

    The DNS server is needed for Internet access. The provider or network system administrator sets the DNS server. The provider or network system administrator sets the DNS server. Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 269 -...
  • Page 270 IPv6 DNS 2 Optional Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 270 -...

  • Page 271: Vlan

    0 (lowest priority) to 7 (highest priority) Further help under VLAN PC port VLAN Switches on VLAN for the PC port. Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 271 -...
  • Page 272 The associated data packets are tagged with this ID. Further help under VLAN PC port VLAN priority 0 (lowest priority) to 7 (highest priority) Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 272 -...

  • Page 273: Vpn

    L2TP IPsec PSK IPsec variant performed using the Layer 2 Tunneling Protocol. Authentication is performed using a shared secret and a personal secret. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 273 -...
  • Page 274 User name for the VPN connection. Your network administrator will give you your user name. Further help under Password Password for the VPN connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 274 -...
  • Page 275 IPsecIdentifier Caution: IPsecIdentifier settings can vary greatly, depending on which server is in use. The network administrator must predefine the configuration. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 275 -...
  • Page 276 The private key must fulfil these criteria: • X.509 standard • .pem format Further help under IPsecCaCert Acts as a "trust anchor" for the connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 276 -...
  • Page 277 Further help under OpenVPN Config Contents of a configuration file (openvpn.cfg). Component part of setting up an open VPN. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 277 -...

  • Page 278: Topology

    Topology Topology Basic Settings Jitter buffer STUN server COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 278 -...

  • Page 279: Basic Settings

    Note: If this function is switched on, parts of the call can seem like breaks in the connection because background noises are cut off sharply. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 279 -...
  • Page 280 LLDP: Interval in seconds LLDP package sending frequency 30 to 3600 sec Minimum: 30 sec Default: 30 sec Further help under LLDP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 280 -...

  • Page 281: Jitter Buffer

    Default: 60 msec Further help under Jitter buffer Max. prefetch Maximum prefetch delay (msec). Default: 240 msec Further help under Jitter buffer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 281 -...
  • Page 282 Jitter buffer Maximum Delay that can be set for the jitter buffer (msec). Default: 360 msec Further help under Jitter buffer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 282 -...

  • Page 283: Stun Server

    STUN server STUN server STUN server management Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 283 -...

  • Page 284: Stun Server Management

    F. Adds another STUN server to the list. The list is dynamic. Settings can be made for up to eight STUN servers. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 284 -...

  • Page 285: Settings

    Note: If you encounter problems with half-open (dropped) call connections, enabling the RTP port might help. Further help under Topology Time lapse registration (min.) 5 … 60 minutes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 285 -...
  • Page 286 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 286 -...

  • Page 287: Ldap

    LDAP LDAP Basic Settings LDAP filter COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 287 -...

  • Page 288: Basic Settings

    Switches on the directory service request. Further help under LDAP Server The LDAP server's domain name or IP address Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 288 -...
  • Page 289 Note: You can find the password in the web interface of your PBX underUser data > Address Books > Settings in the row Simplified user name next to Password. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 289 -...
  • Page 290 Basic Settings Search area Point in the folder from which the LDAP search starts. Example: BaseDN dc=auerswald Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 290 -...

  • Page 291: Ldap Filter

    Further help under LDAP Number filter dial preparation Filter for displaying the suggestions list in dial preparation. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 291 -...
  • Page 292 Relevant phone number attributes. Further help under LDAP Sort by Sorting algorithm (by First name, by Last name) Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 292 -...
  • Page 293 If "Number search outgoing" is enabled, the display name is searched for via LDAP, for outgoing calls. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 293 -...

  • Page 294: Telephony

    Telephony Telephony Call signalling Dialled calls Call forwarding Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 294 -...

  • Page 295: Call Signalling

    Do not disturb Rejects calls to the phone. Call Completion The callback is triggered automatically by the PBX. Further help under Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 295 -...

  • Page 296: Dialled Calls

    You can use the sliding adjuster to set the number of the seconds that the phone waits before making the automatic call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 296 -...

  • Page 297: Call Forwarding

    Further help under Call forwarding Call forwarding destination Enter the destination number here. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 297 -...
  • Page 298 Waiting time before call forwarding Sets the number of the seconds that the phone waits before activating call forwarding. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 298 -...

  • Page 299: Automatic Call Acceptance

    Uses a tone to signal incoming calls. Further help under Automatic call acceptance Interrupt active calls Active calls are put on hold when InterCom calls are received. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 299 -...
  • Page 300 Automatic call acceptance Note: For active calls to be interrupted, the Call waiting function must be enabled. Further help under Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 300 -...

  • Page 301: Sound

    Sound Sound Ringtones by call type Ringtone management COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 301 -...

  • Page 302: Ringtones By Call Type

    Sound Ringtones by call type List of possible ringtones. Assign a ringtone to a call type here. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 302 -...

  • Page 303: Ringtone Management

    Note: Max. permitted file size per file: 5 MB. Further help under Sound Memory utilisation Displays how much memory is occupied by imported ringtones. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 303 -...

  • Page 304: Date And Time

    Data on the phone that has a time stamp (such as call history entries, calendar entries and e-mails) is displayed with the correct time. Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 304 -...
  • Page 305 12 h: time display in 12-hour format. In addition, the time range AM/PM is displayed. 24 h: time display in 24-hour format. Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 305 -...

  • Page 306: User

    User User User administration Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 306 -...

  • Page 307: User Administration

    G. Stores all settings for a user. H. Click on the Edit icon to assign a new password. Displays/hides the currently set password (only in Edit mode). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 307 -...
  • Page 308 User administration J. Adds a new user to the list. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 308 -...

  • Page 309: Settings

    • contain at least one special character • be at least 9 characters long • be different from the user name Further help under Passwords COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 309 -...
  • Page 310 Assigns administrator rights to the user. Note: Administrator rights can only be assigned when a new user is created. Further help under User roles and permissions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 310 -...

  • Page 311: Backup And Restore

    • Import: Uploads the settings from the selected .xml file to the phone. Further help under Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 311 -...

  • Page 312: Access

    Access Access General settings Telephone menu COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 312 -...

  • Page 313: General Settings

    General settings General settings Developer options Action URL Logging COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 313 -...

  • Page 314: Developer Options

    Enables the PC to access the phone via the software interface. You can then use ADB to execute commands on the Android system. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 314 -...

  • Page 315: Action Url

    Further help under Action URL Generate new token Provides a static password for the phone interface. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 315 -...

  • Page 316: Logging

    Enables debug info recording. Note: In some situations, extended logging can have a negative impact on system performance. Further help under Logging COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 316 -...

  • Page 317: Telephone Menu

    Note: Only administrators can see this page. Further help under User roles and permissions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 317 -...

  • Page 318: Using The Phone

    Using the Phone Using the Phone Basic Knowledge Calls Contacts Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 318 -...

  • Page 319: Basic Knowledge

    Basic Knowledge Basic Knowledge Display Notifications Keys and LEDs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 319 -...

  • Page 320: Display

    Display Display Display overview System icons COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 320 -...

  • Page 321: Display Overview

    Display overview Display overview Home Varying display names list All call lists Active conversation Putting a conversation on hold Conference call Transfer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 321 -...

  • Page 322: Home

    Displays the subscriber name, as set inSettings > Identities > Display name J. System icons display: In the areaSettings > Telephonyfunctions have been enabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 322 -...

  • Page 323: Varying Display Names

    − No WebUI (if web administration (https) is deactivated and no identity has been configured) − IP address (if device is connected but not registered) − No display COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 323 -...

  • Page 324: List

    B. negative:An element is displayed as a negative image in a dark bar if you activate it using the direction keys and you can display a sub-menu by pressing OK COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 324 -...

  • Page 325: All Call Lists

    G. softkeyOutgoing: Lists all outgoing calls, sorted chronologically. H. softkeyMenu:Press this to access the following options for using the selected subscriber number: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 325 -...
  • Page 326 2 seconds. If you want to exit the caller list without dialling a phone number, press Back Details about the settings are in Display COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 326 -...

  • Page 327: Active Conversation

    Active conversation between 2 SUBs A. Status bar B. Connected. C. Identity of called SUB D. Own identity E. End F. Conversation duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 327 -...

  • Page 328: Putting A Conversation On Hold

    A. Status bar B. Holding C. Identity of SUB put on hold D. Own identity E. Dial F. End G. Conversation duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 328 -...
  • Page 329 E. JoinConnects SUB in call with held SUB F. End G. Duration of call on hold H. Duration of incoming call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 329 -...
  • Page 330 E. JoinConnects SUB in call with held SUB F. Conf. G. End H. Duration of call on hold Duration of active conversation COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 330 -...

  • Page 331: Conference Call

    D. SUB 1 on hold E. Dial F. Join G. Conf. H. End Call duration SUB 2 J. Call duration SUB 1 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 331 -...
  • Page 332 C. Conference call(active) D. Conference call participant 1 E. Conference call participant 2 F. Join G. Split H. End Conference call duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 332 -...

  • Page 333: Transfer

    E. Subscriber number of the contact F. Toggle between alphanumeric and numerical entry G. OK H. Scroll bar for navigating the list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 333 -...

  • Page 334: System Icons

    Call on hold Forwarded call Call Completion Ringing Identity Line Group Accepted call Missed call Successful outgoing call Unsuccessful outgoing call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 334 -...
  • Page 335 Active conference call Conference call participant Own device is on hold Own device is being forwarded Identity active Identity inactive Identity not configured COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 335 -...

  • Page 336: Notifications

    A new voice message The mailbox is called and the dialler is displayed. Follow the spoken instructions to find out what to do next. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 336 -...

  • Page 337: Keys And Leds

    Delete, Home and Back Directional pad and OK LED signalling on function keys Casing LED Selecting a Key Level Changing the input mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 337 -...

  • Page 338: Keypad

    * ( ) [ ] < = > « » ^ ´ ` ~ { } # % & § £ $ € COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 338 -...

  • Page 339: Dedicated Function Keys

    • LED is shining red: active hedaset call Transfer without LED • You can transfer calls with or without prior notification. minus COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 339 -...
  • Page 340 • LED is shining red: hands-free calling is enabled plus • Increases the volume of the ringer, receiver, or loudspeaker, depending on operational state. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 340 -...

  • Page 341: Function Keys Near The Screen

    Using the function keys you have programmed from the idle state Run functions using the programmed function keys to the right or left of the screen: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 341 -...
  • Page 342 Press the top or bottom function key on the right of the screen: you jump up or down one screen or scroll through a list/menu quickly. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 342 -...
  • Page 343 When the maximum number of modules has been installed, 105 freely programmable function keys are available. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 343 -...
  • Page 344 Function Keys near the Screen The programmable function keys can each be defined three times (on three levels). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 344 -...

  • Page 345: Soft Keys Below The Display

    D. softkeyDetails:Press this to display more saved phone numbers for a contact. E. →Fav. / →Fav.:Turns a contact into a favourite or favourite into a normal contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 345 -...
  • Page 346 D. softkeyOutgoing:Press this to list all outgoing calls by how recent they are. E. softkeyMenu:Press this to access more options for the selected phone number. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 346 -...

  • Page 347: Delete, Home And Back

    Back • Press this to return to the most recently opened menu and end the current action. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 347 -...

  • Page 348: Directional Pad And Ok

    B. negative:An element is displayed as a negative image in a dark bar if you activate it using the direction keys and you can display a sub-menu by pressing OK COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 348 -...

  • Page 349: Led Signalling On Function Keys

    Active, registered identity, not a default identity Flashing yellow Current registration attempt Shining yellow Incorrect identity Call waiting Shining green Function enabled COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 349 -...
  • Page 350 Error, function key perhaps not completely configured Call forwarding on no reply Shining green Function enabled Function key configured, function deactivated COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 350 -...
  • Page 351 Function key configured, function deactivated XML mini browser None Performs the stored functions Switch relay Flashing green Relay has been switched (approx. 2 sec.) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 351 -...
  • Page 352 Time gap between pressing the function key and acknowledgement by the PBX/provider Flashing yellow Current attempt to register the function key on the PBX/provider, using SIP Subscription COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 352 -...
  • Page 353 From device version COMfortel® D-400 Browser None Calls the set page in the browser Bluetooth Bluetooth not active Shining green Bluetooth active COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 353 -...
  • Page 354 LED signalling on function keys Function LED display Status Shining yellow Error: maybe no Bluetooth dongle inserted COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 354 -...

  • Page 355: Casing Led

    Casing LED The Casing LED indicates the following statuses: • Flashing red (quickly): incoming call • Lit in red: active call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 355 -...

  • Page 356: Selecting A Key Level

    The display content changes according to the selected key level. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 356 -...

  • Page 357: Changing The Input Mode

    If you want to use the keypad to enter data in fields, press and hold (for approx. 2 seconds) to toggle the input mode (abc < > 123) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 357 -...

  • Page 358: Calls

    Calls Calls Navigation Menu COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 358 -...

  • Page 359: Navigation

    Press this to list all missed calls by how recent they are. Outgoing Press this to list all outgoing calls by how recent they are. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 359 -...

  • Page 360: Menu

    Using the Call History in Different Ways 1. Select an entry in the call history. 2. By pressing OK for approximately 2 seconds. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 360 -...
  • Page 361 Menu The options as described are listed. 3. Select any required options. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 361 -...

  • Page 362: Contacts

    Contacts Contacts Navigation Edit Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 362 -...

  • Page 363: Navigation

    This is then added to the appropriate source list (Favourites or Contacts), from which a new contact is added. Details about the settings are in Edit Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 363 -...
  • Page 364 Navigation Further help under Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 364 -...

  • Page 365: Edit Contact

    No.+/Del Nr Adds a phone number to a contact, or removes it from the contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 365 -...
  • Page 366 Edit Contact Save Saves the contact settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 366 -...

  • Page 367: Settings

    Identities Sound Language and location Display and LED Telephony Function keys Update Using provisioning Access Date and time Contacts/LDAP About phone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 367 -...

  • Page 368: Network

    Network Network Current Settings IPv4 settings IPv6 Settings VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 368 -...

  • Page 369: Current Settings

    Current Settings Current Settings The current settings will be shown. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 369 -...

  • Page 370: Ipv4 Settings

    If you select Static: you can enter/change the phone's IP address In the factory settings: 0.0.0.0. Further help under IPv4 Subnet mask Example: 225.255.255.0 Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 370 -...
  • Page 371 DNS server. The provider or network system administrator sets the DNS server. Further help under IPv4 DNS 2 Optional Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 371 -...

  • Page 372: Ipv6 Settings

    DNS server. The provider or network system administrator sets the DNS server. Further help under IPv6 DNS 2 Optional Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 372 -...

  • Page 373: Vlan

    Enter the PC port's VLAN lD: 1 … 4094 The associated data packets are tagged with this ID. Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 373 -...
  • Page 374 VLAN PC port VLAN priority 0 (lowest priority) to 7 (highest priority) Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 374 -...

  • Page 375: Vpn

    Your network administrator will give you your user name. Further help under Password Password for the VPN connection. Your network administrator will give you the password. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 375 -...

  • Page 376: Topology

    Topology Topology Basic Settings STUN server COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 376 -...

  • Page 377: Basic Settings

    Initial value = 0, prefetch is deactivated. Min. prefetch: Minimum prefetch delay (msec). Default: 60 msec Max. prefetch: Maximum prefetch delay (msec). Default: 240 msec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 377 -...
  • Page 378 LLDP: Interval in seconds LLDP package sending frequency 30 to 3600 sec Minimum: 30 sec Default: 30 sec Further help under LLDP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 378 -...

  • Page 379: Stun Server

    Note: If you encounter problems with half-open (dropped) call connections, enabling the RTP port might help. Further help under Topology Time lapse registration (min.) 5 … 60 minutes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 379 -...
  • Page 380 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 380 -...

  • Page 381: Identities

    Identities Identities Managing Identities Basic Settings Options for experts COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 381 -...

  • Page 382: Managing Identities

    If you back up the settings for an identity to a data storage device first, you can restore them if required. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 382 -...

  • Page 383: Basic Settings

    Used to verify the user name. Identical to the password assigned by the VoIP provider when the identity was being created or the password entered in the PBX. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 383 -...
  • Page 384 If you connect to an Auerswald PBX, you do not need to enter the authentication ID. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 384 -...

  • Page 385: Options For Experts

    Options for experts Options for experts Registrar Function codes Audio Security Outbound proxy Fallback for Ringer Tone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 385 -...

  • Page 386: Registrar

    5 … 60 minutes The registration time is the number of minutes that must elapse before the telephone reregisters itself with the VoIP provider. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 386 -...
  • Page 387 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 387 -...

  • Page 388: Sip

    Note: If very large data packets are present, TCP is used instead of UDP. The maximum size of a data packet can vary according to the network. (RFC 3261 > TCP) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 388 -...
  • Page 389 The device sends exactly one subscription to the PBX/provider. No other subscriptions are sent. • Fixed interval Attempts to subscribe on the PBX/provider are made at the specified interval. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 389 -...
  • Page 390 The set number of seconds doubles after each attempt to register on the PBX/provider. Interval in seconds Sets the time gap between two subscription attempts.Minimum: 1 secDefault: 10 sec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 390 -...
  • Page 391 Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 391 -...

  • Page 392: Nat

    • Configured DNS server Active NAT traversal is performed by the telephone. To do this, you must also specify a STUN server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 392 -...
  • Page 393 Enable the best possible transmission route to be found between the phone and PBX/provider. Note: ICE must only be activated if the other end supports ICE. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 393 -...

  • Page 394: Function Codes

    User anonymous Both the display text and the User name section in the From header is "anonymous". Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 394 -...

  • Page 395: Audio

    Best available compression: G.726, G.729, iLBC Note: Codecs that are assigned multiple times are automatically removed from the list and replaced with---. Further help under Codecs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 395 -...

  • Page 396: Security

    Switches on negotiation for the encryption of call data via SRTP. When a call is made, the call partner will be asked if encryption is possible. If COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 396 -...
  • Page 397 Note: For each device variant, simply shows whether a certificate is installed and where processing can take place, if relevant. Further help under Identities Further help under Certificate COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 397 -...

  • Page 398: Outbound Proxy

    Port for the outbound proxy. Note: The Port must be filled out if mode Manually is selected. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 398 -...
  • Page 399 Alternative server address for the outbound proxy. Further help under Outbound proxy Alternative port Alternative port for the outbound proxy. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 399 -...

  • Page 400: Fallback For

    Note: A fallback identity can also be created for identities that have not yet been configured. Further help under Fallback identity COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 400 -...

  • Page 401: Ringer Tone

    Ringer Tone Ringer Tone Ringer Tone Assigns a ringtone to the identity. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 401 -...

  • Page 402: Sound

    Alert info from the PBX/provider’s SIP Invite. Ringer Tone Assigns a ringtone to the alert info from the PBX/provider’s SIP Invite. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 402 -...

  • Page 403: Language And Location

    Further help under Language and location Language web interface Changes the language used on the web interface Further help under Language and location COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 403 -...

  • Page 404: Display And Led

    Further help under Display and LED Seen missed calls Sets the message key LED's reaction to seen missed calls. • LED lights up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 404 -...
  • Page 405 • LED off The message key LED does not flash and a text message is displayed in the Notifications menu. • Disabled COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 405 -...
  • Page 406 The message key LED does not flash and no text message is displayed in the Notifications menu. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 406 -...

  • Page 407: Telephony

    Call waiting Audible indication Do not disturb Call forwarding Anonymous call Reverse search Automatic start of call Automatic call acceptance Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 407 -...

  • Page 408: Call Waiting

    Call waiting Call waiting Call waiting Indicates an incoming call during a call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 408 -...

  • Page 409: Audible Indication

    If this option is disabled, incoming calls are only signalled by a change in the display content during a call. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 409 -...

  • Page 410: Do Not Disturb

    Do not disturb Do not disturb Do not disturb Rejects calls to the phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 410 -...

  • Page 411: Call Forwarding

    Forwards incoming calls to the set destination number if these calls have not been taken within a set time. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 411 -...
  • Page 412 Waiting time before call forwarding Sets the number of the seconds that the phone waits before activating call forwarding. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 412 -...

  • Page 413: Anonymous Call

    Anonymous call Anonymous call Anonymous call Stops your phone number from being displayed to the person you are calling COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 413 -...

  • Page 414: Reverse Search

    Reverse search For incoming and outbound calls, this option displays the names of saved contacts that are suitable for the phone number. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 414 -...

  • Page 415: Automatic Start Of Call

    You can use the sliding adjuster to set the number of the seconds that the phone waits before making the automatic call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 415 -...

  • Page 416: Automatic Call Acceptance

    Active calls are put on hold when InterCom calls are received. Note: For active calls to be interrupted, the Call waiting function must be enabled. Further help under Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 416 -...

  • Page 417: Call Completion

    Call Completion Call Completion Call Completion The callback is triggered automatically by the PBX. Further help under Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 417 -...

  • Page 418: Function Keys

    Function keys Function keys Managing function keys Edit function keys Edit parameters COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 418 -...

  • Page 419: Managing Function Keys

    Function keys Edit Opens a dialogue in which parameters can be configured for the selected key. Further help under Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 419 -...

  • Page 420: Edit Function Keys

    Deletes the marked function key in the list. Cancel Closes the menu without adopting changes. Save Saves the entered parameters and close the window. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 420 -...

  • Page 421: Edit Parameters

    CF ext. calls: On busy CF ext. calls: On no reply Do not disturb DTMF-Relay Group Group (incoming) Group (outgoing) Park position Relays XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 421 -...

  • Page 422: Speed Dial

    Note: Pickup should not be used if the key is only used to switch functions in the PBX using a programming code. Deactivate Pickup in that case. Further help under Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 422 -...
  • Page 423 If this function is enabled, missed calls associated with the speed dial number are signalled with flashing green LEDs. Further help under Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 423 -...

  • Page 424: Identity

    Identity Identity Identity Identity used to trigger subsequent calls. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 424 -...

  • Page 425: Activate Config

    Identity for which this function is set up. Further help under Identities Configuration id The PBX assigns the configuration ID automatically. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 425 -...

  • Page 426: Anonymous Call

    Anonymous call Anonymous call No parameters necessary. Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 426 -...

  • Page 427: Automatic Configuration Switching

    Identification number for system relay with Automatic configuration switchover operating mode (900, in the factory settings). Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 427 -...

  • Page 428: Call Forwarding Immediately

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 428 -...

  • Page 429: Call Forwarding On Busy

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 429 -...

  • Page 430: Call Forwarding On No Reply

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 430 -...

  • Page 431: Call Waiting

    Call waiting Call waiting No parameters necessary. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 431 -...

  • Page 432: Cf Ext. Calls: Immediately

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 432 -...

  • Page 433: Cf Ext. Calls: On Busy

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 433 -...

  • Page 434: Cf Ext. Calls: On No Reply

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 434 -...

  • Page 435: Do Not Disturb

    Do not disturb Identity Identity for which this function is set up. Further help under Identities Further help under Do not disturb COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 435 -...

  • Page 436: Dtmf-Relay

    DTMF-Relay DTMF-Relay DTMF sequence Numbers needed to perform the required function. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 436 -...

  • Page 437: Group

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 437 -...

  • Page 438: Group (Incoming)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 438 -...

  • Page 439: Group (Outgoing)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 439 -...

  • Page 440: Park Position

    Number/URI Phone number of the park position. Identity Identity for which this function is set up. Further help under Park position COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 440 -...

  • Page 441: Relays

    This function key is not suitable for manual relays. For additional Information, refer to the Advanced Information about the PBX. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 441 -...

  • Page 442: Vpn

    No parameters necessary. Further help under Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 442 -...

  • Page 443: Xml Minibrowser

    XML Minibrowser XML Minibrowser Number/URI Web server address Further help under XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 443 -...

  • Page 444: Update

    Restarts the telephone. Caution: This interrupts all connections, all calls and data services. Unsaved data is lost! Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 444 -...
  • Page 445 Resets the telephone to the factory settings. Any saved data and settings are deleted. The phone is shut down and then restarted. Further help under Reset to default COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 445 -...

  • Page 446: Using Provisioning

    Using provisioning Provisioning from PBX search Automatic provisioning of the phone is performed via the PBX. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 446 -...
  • Page 447 Using provisioning Vendor templates Activates templates and scripts that are specially designed to run on Auerswald/FONtevo PBXs. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 447 -...

  • Page 448: Access

    Displays the password entry/modification dialogue for the web interface. Note: When you define the password, comply with the conventions for secure passwords. Further help under Passwords COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 448 -...
  • Page 449 Action URL Action URL server Required to send events. No entry required if only commands are received. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 449 -...

  • Page 450: Date And Time

    Data on the phone that has a time stamp (such as call history entries, calendar entries and e-mails) is displayed with the correct time. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 450 -...
  • Page 451 Date and time Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 451 -...

  • Page 452: Contacts/Ldap

    LDAP Name format Defines the format in which names are displayed (First name first, Last name first). Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 452 -...
  • Page 453 If "Number search outgoing" is enabled, the display name is searched for via LDAP, for outgoing calls. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 453 -...

  • Page 454: About Phone

    Displays the build number of the software version installed on the device. MAC address Displays your device's physical address on the network. Android version Displays the Android version installed on your device. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 454 -...
  • Page 455 • End User License Agreement • Data protection • Open source licenses • Android licenses • Webclient licenses Further help under Device Information COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 455 -...

  • Page 456: Glossary

    Glossary Glossary Technical Terms and Functions Abbreviations COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 456 -...

  • Page 457: Technical Terms And Functions

    Domain Downdate DTMF End device Ethernet Firewall Firmware Frame size Gateway HOST HTTP IMAP IP address Ipsec IPv4 IPv6 jitter buffer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 457 -...
  • Page 458 Port Prefetch Using provisioning Redirect Server Registrar router Rubber cover Server SIP port SIPS SLAAC SMTP server STUN Subnet mask Switch COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 458 -...
  • Page 459 Technical Terms and Functions Update update server VLAN VoIP VoIP account VoIP address VoIP provider COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 459 -...

  • Page 460: Account

    Authorisation to access a VoIP provider or a VoIP PBX. Users must identify themselves by logging in with a username and a password. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 460 -...

  • Page 461: Browser

    Browser Browser Special software to display websites from the Internet. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 461 -...

  • Page 462: Call Deflection

    Deflection has been activated, the called subscriber can deflect the call on a case-to-case basis while the telephone is still ringing. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 462 -...

  • Page 463: Certificate

    Certificate Digital key issued by a Certification Authority (CA) to ensure the authentication and secure transmission of e-mails, web sites, etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 463 -...

  • Page 464: Client

    Client Client Piece of computer hardware or software that accesses a service made available by a server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 464 -...

  • Page 465: Codec

    The equality of VoIP calls is dependent on the codec used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 465 -...

  • Page 466: Dhcp

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 466 -...

  • Page 467: Dial Preparation

    Dial preparation Dial preparation Dialling of a number before a call is initiated by lifting the receiver. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 467 -...

  • Page 468: Dns

    IP address. This service is provided by DNS servers at the various Internet service providers or by upper domain servers. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 468 -...

  • Page 469: Domain

    “www“), second-level domain (e. b. “auerswald“) and top-level domain (e. g. the country code “uk“). The domain is part of the URL. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 469 -...

  • Page 470: Downdate

    Downdate Downdate Reset of the telephone to the previous firmware version. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 470 -...

  • Page 471: Dtmf

    Dual Tone Multi Frequency dialling – dialling method that transmits the dialled number to the exchange as two superimposed sinusoidal signals. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 471 -...

  • Page 472: Ehs

    Additional features can be implemented, depending on product. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 472 -...

  • Page 473: End Device

    Device that can be operated on a communication network or on a PBX, e. g. telephone, fax machine, answering machine, ISDN PC controller, etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 473 -...

  • Page 474: Ethernet

    Ethernet Ethernet Network system with a speed of 10/100/1000 Mbit/s developed by the companies INTEL, DEC and Xerox. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 474 -...

  • Page 475: Firewall

    Network security component that uses a set of security rules to protect a computer network or an individual computer against unauthorised access to or from the network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 475 -...

  • Page 476: Firmware

    Firmware Operating software on the telephone or PBX that is stored in the device itself. The device cannot function without firmware. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 476 -...

  • Page 477: Frame Size

    Frame size Frame size Sets the RTP packet size (msec Audio/RTP package). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 477 -...

  • Page 478: Gateway

    Internet service provider is the gateway for direct Internet dial-up connections. If you use a router, this is the gateway in a local network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 478 -...

  • Page 479: Host

    Component of a data processing system that manages larger application programs and data volumes and makes them available to lower-order servers and clients. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 479 -...

  • Page 480: Http

    HTTP HTTP Hypertext Transfer Protocol Secure – communication protocol for tap- proof data transfer with encryption within the World Wide Web. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 480 -...

  • Page 481: Ice

    NATs and firewalls makes it difficult for them to do so. ICE uses the STUN (Session Traversal Utilities for NAT)- and TURN (Traversal Using Relays Around NAT) protocols to establish a connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 481 -...

  • Page 482: Imap

    PC, so that they cannot be lost due to a failure of the client PC). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 482 -...

  • Page 483: Ip Address

    Unique numerical address within a TCP/IP network that is assigned to one device and ensures that data packages reach the correct recipient. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 483 -...

  • Page 484: Ipsec

    Ipsec Ipsec The telephone uses the IPsec protocol to transport IP packages cryptographically secured via public networks. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 484 -...

  • Page 485: Ipv4

    Internet, none of the data on the computers in the local network can leak out or be accessed externally. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 485 -...

  • Page 486: Ipv6

    Thanks to the longer address format, IPv6 offers a greater number of possible IP addresses than the Internet Protocol Version 4 (IPv4). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 486 -...

  • Page 487: Jitter Buffer

    Buffers RTP packages, to compensate irregular transfer rates of the Internet. A high jitter buffer reduces short interruptions during the call. In return the delay of the RTP packages increases. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 487 -...

  • Page 488: Ldap

    Lightweight Directory Access Protocol – protocol that enables you to query the data in a directory service (a hierarchical database) over the network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 488 -...

  • Page 489: Led

    Light emitting diode - electronic device similar to a lamp and used for displays (also multi-coloured). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 489 -...

  • Page 490: Lldp

    Link Layer Discovery Protocol – the protocol IP phones use to collect and query device-specific information from devices directly connected in the network. LLDP-MED – LLDP software upgrade that supports special VoIP apps. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 490 -...

  • Page 491: Mac

    The IP addresses on the TCP/ IP network are always mapped to the respective MAC address. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 491 -...

  • Page 492: Nat

    IP address used by another network. This function is e.g. performed by a router which connects a local area network to the Internet. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 492 -...

  • Page 493: Nat Traversal

    NAT traversal NAT traversal Method to establish and hold communication connections that allows IPsec-encrypted data packets to pass trough NAT transition points. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 493 -...

  • Page 494: Ntp

    If a local NTP server is available in a local network, it can be selected, or a public NTP server from a public list on the Internet can be used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 494 -...

  • Page 495: Open Source Licenses

    Software license acknowledged by the Open Source Initiative (OSI). Open-source licenses are the basis of free-of-charge applications whose programming code may be modified without restrictions. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 495 -...

  • Page 496: Poe

    VoIP telephones, receive both power and data via an Ethernet cable. Benefit: Fewer obtrusive power cables are required. PoE is described in the IEEE 802.3af standard. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 496 -...

  • Page 497: Pop3

    POP3 POP3 Post Office Protocol, version 3 – ASCII protocol to download e-mails from a server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 497 -...

  • Page 498: Port

    Outgoing connections are usually established starting at Port 1024. Most services that use the standard port numbers (for example, web browsers use port 80). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 498 -...

  • Page 499: Prefetch

    The loading of memory contents before a requirement for them has become obvious. When the requirement actually occurs, this enables a faster access speed to be achieved. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 499 -...

  • Page 500: Using Provisioning

    Using provisioning Using provisioning Automatded configuration of one or more telephone(s) from a provisioning server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 500 -...

  • Page 501: Redirect Server

    The originator can then send a new request to the alternative address. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 501 -...

  • Page 502: Registrar

    URL set by the VoIP provider on the IP address on which the registering PBX can be accessed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 502 -...

  • Page 503: Router

    Internet and to enable simultaneous Internet access for multiple users. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 503 -...

  • Page 504: Rtp

    1 to 20% is acceptable, depending on the codec in use. RTP does not guarantee the service quality of the data transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 504 -...

  • Page 505: Rubber Cover

    Rubber cover Rubber cover Rubber cover which must be removed before the key extension module can be mounted. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 505 -...

  • Page 506: Spl

    Secondary Program Loader: a simplified version of the Bootloader for initial hardware configuration. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 506 -...

  • Page 507: Server

    Computer or software that performs different tasks as part of a network and, for example, provides other users (clients) of this network with specific information, data or services. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 507 -...

  • Page 508: Sip

    SIP is only used to negotiate the communication conditions. Other protocols such as RTP are responsible for actual data transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 508 -...

  • Page 509: Sip Port

    SIP port SIP port Port of the local system used as the communication port for the SIP transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 509 -...

  • Page 510: Sips

    The processes used to set up and shut down a connection, and signalling, are all encrypted by SIPS. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 510 -...

  • Page 511: Slaac

    IPv4. IPv6 routers have an active role, unlike those in IPv4. IPv6 offers the same convenience as operating a very simple DHCP server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 511 -...

  • Page 512: Smtp Server

    SMTP server (outgoing mail server) to send system e- mails or forward voice mail messages and fax messages. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 512 -...

  • Page 513: Stun

    Internet connection. To do this, a STUN request is sent to a STUN server, which then shares its own IP address allocated by the VoIP provider with the Internet connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 513 -...

  • Page 514: Subnet Mask

    The value of the subnet mask, as with IP addresses, is often given in decimal form (for example, 255.255.255.0 for IPv4 addresses). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 514 -...

  • Page 515: Switch

    Active network distributor that distributes data packages to a destination defined by an IP address among the different segments of a network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 515 -...

  • Page 516: Tcp

    To ensure this happens, a large amount of information is sent along with the actual payload data. Most Internet services are implemented with TCP, e.g., HTTP (WWW), SMTP/POPS (e-mail), etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 516 -...

  • Page 517: Tls

    Layer Security – protocol for the encryption and secure transmission of data on the Internet. TLS is often used to protect http connections, e. g. for commercial transactions (https). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 517 -...

  • Page 518: Udp

    LAN. UDP is used, e.g., for the DNS (Domain Name Server). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 518 -...

  • Page 519: Update

    Installation of a new firmware version to integrate new features and to solve possible problems. Previous settings of the device remain unchanged. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 519 -...

  • Page 520: Update Server

    Server that provides up-to-date data, e. g. firmware files, provider profiles, etc., for downloading to a telephone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 520 -...

  • Page 521: Uri

    • the specific computer on which the resource is present • the specific name of the resource (or the file name) on the computer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 521 -...

  • Page 522: Url

    Uniform Source Locator – complete address of a resource (e. g. a website), consisting of a scheme (e. g. „http://“) and a scheme-specific part (e. g. domain „www.auerswald.de/“ and path „en/products/pbx/home- office.html...“). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 522 -...

  • Page 523: Vlan

    Among other things, a VLAN can be used to keep IP telephony separate from normal network traffic, at network level. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 523 -...

  • Page 524: Voip

    The transmission quality and the reliability of Voice over IP depends to a great extent on the quality of the Internet connection used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 524 -...

  • Page 525: Voip Account

    Internet, and also an account with a username and password. The registered connection usually becomes active within a few minutes and can be used very soon after that. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 525 -...

  • Page 526: Voip Address

    VoIP address VoIP address VoIP telephone number plus domain, separated by the @ character: <subscriber>@domain. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 526 -...

  • Page 527: Voip Provider

    VoIP provider VoIP provider Internet service provider offering internet telephony (VoIP, Voice over Internet Protocol). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 527 -...

  • Page 528: Vpn

    (LAN) into your own network via a VPN tunnel. The tunnel serves as a shell in which the data is embedded and transported from one network to the other. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 528 -...

  • Page 529: Xml

    A Document Type Definition (DTD) describes the structure and grammar used in documents. It is an XML system component and is enabled by default. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 529 -...

  • Page 530: Abbreviations

    HTTP Hypertext Transfer Protocol Hypertext transmission protocol IMAP Internet Message Access Protocol Enables online access to an e-mail inbox (live access) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 530 -...
  • Page 531 Private PBX Power over Ethernet POP3 Post Office Protocol, Version 3 Real-Time Transport Protocol Session Initiation Protocol SIPS Session Initiation Protocol Secure COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 531 -...
  • Page 532 Uniform Resource Pointer Universal Serial Bus VLAN Virtual Local Area Network Voice Mailbox voice mailbox VoIP Voice over Internet Protocol Virtual Private Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 532 -...
  • Page 533 Abbreviations Extensible Markup Language COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.2 - Advanced Information V08 05/2022 - 533 -...

This manual is also suitable for:

D-110D-200D-210

Table of Contents
