MacDon A30-D Supplement Operators Manual page 8

Pull-type mower conditioner and self-propelled auger header

Hide thumbs Also See for A30-D:

MD #171286

Lock pull-type hydraulic for transport

WARNING

• Charge cylinder with oil before towing.

• Rotate valve handle to lock in transport position.

• Maximum towing speed 20 mph (32 km/h).

• Failure to comply could result in death or serious injury.

MD #171287

Install lock panel

WARNING

• Rotate valve handle to lock before going under unit.

• Failure to comply could result in death or serious injury.

MD #171288

Entanglement hazard

CAUTION

• To avoid injury from entanglement with rotating auger,

stand clear of header while machine is running.

169000_SUPPLEMENT_2

SAFETY

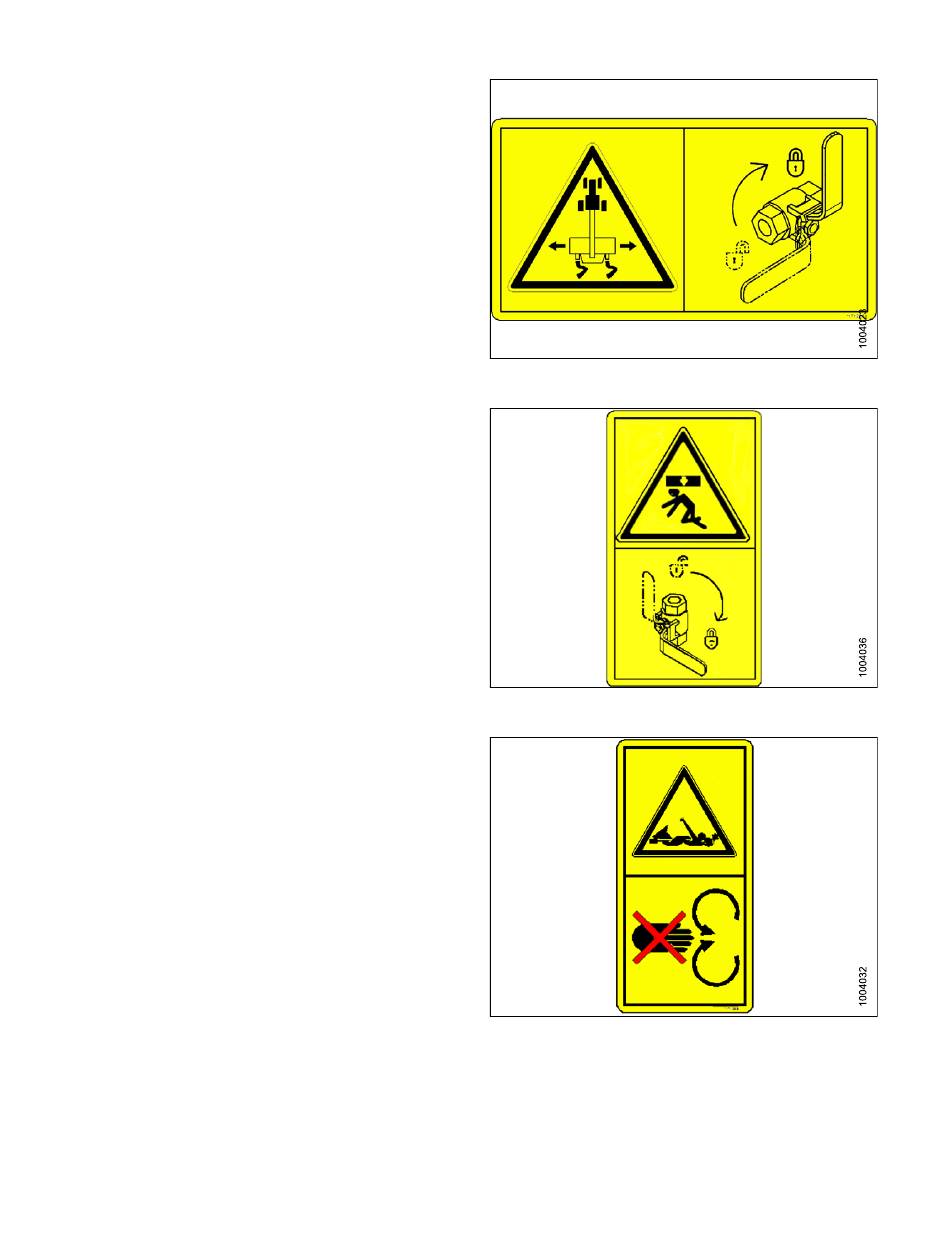

Figure 1.12: MD #171286

Figure 1.13: MD #171287

Figure 1.14: MD #171288

Revision D
