MacDon A30-D Supplement Operators Manual page 13

6. Install the transport pin as follows.
7. Remove pin from storage at aft end of APT.
8. Line up holes in APT and frame, and install transport
lock pin (A) as shown.
9. Secure with lynch pin (B).
10. Check that jack is properly attached in storage position
on APT and secured with pin (B).
11. Keep Slow-Moving Vehicle (SMV) sign, reflectors, and
lights clean and visible at rear of mower conditioner.
12. Ensure tires are properly inflated.
13. For towing procedures, refer to one of the following:
• Towing Mower Conditioner with a Tractor
• Towing Mower Conditioner with a Truck
169000_SUPPLEMENT_2
SAFETY

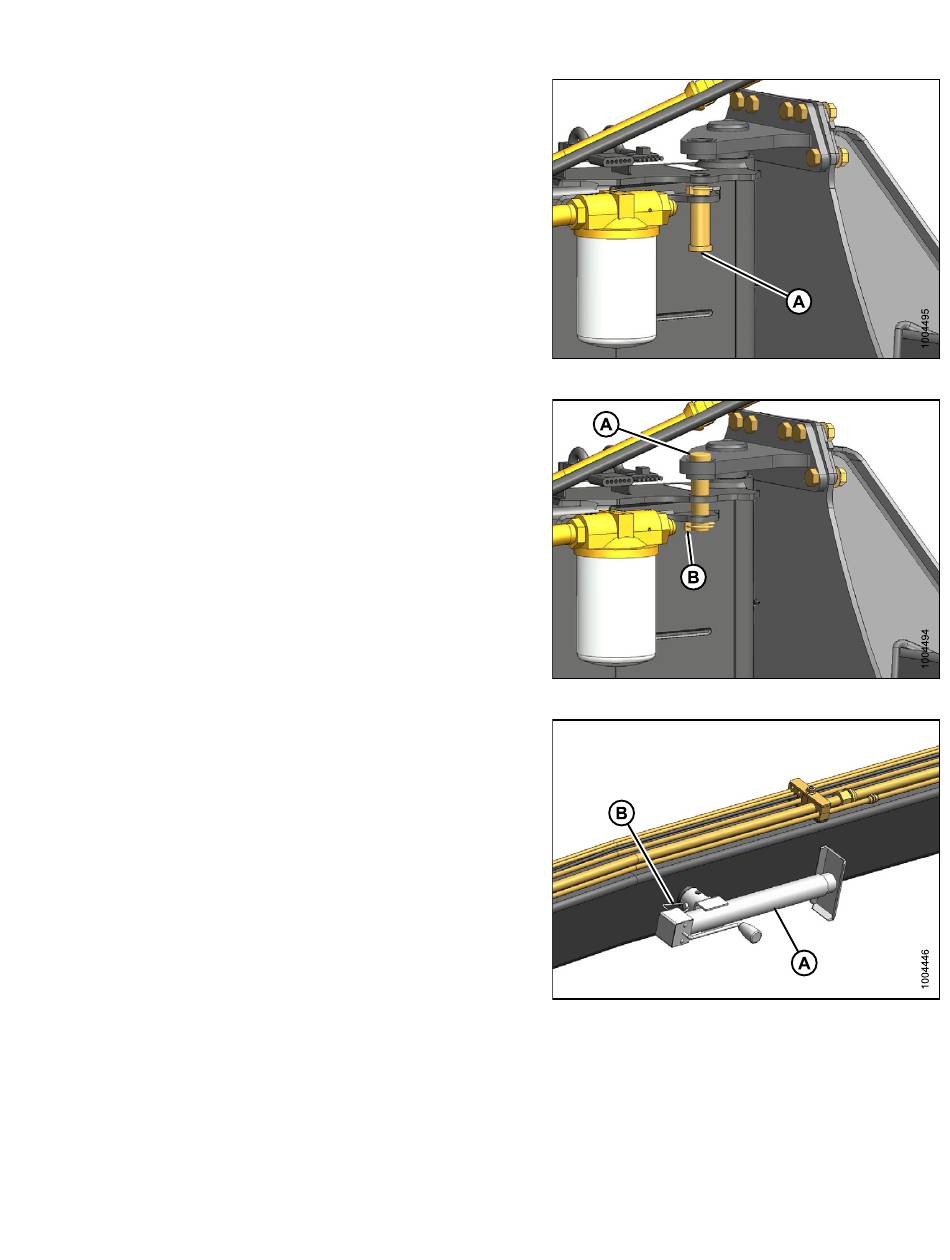

Figure 1.25: Transport Lock Pin
Figure 1.26: Transport Lock Pin
Figure 1.27: APT Jack
11
Revision D
