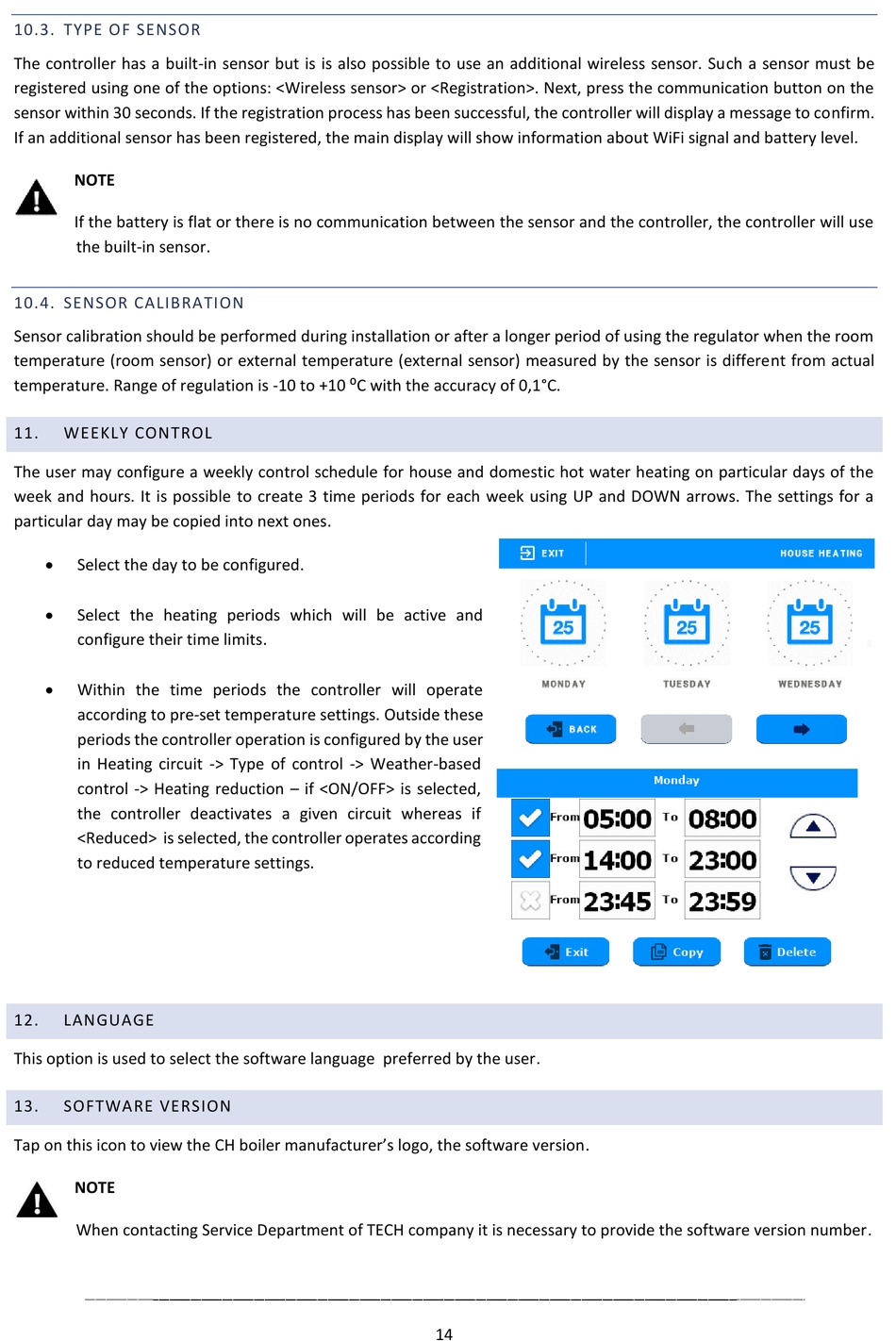

Type Of Sensor; Sensor Calibration; Weekly Control; Language - Tech Controllers EU-2801 WiFi User Manual

10.3. TYPE OF SENSOR

The controller has a built-in sensor but is is also possible to use an additional wireless sensor. Such a sensor must be
registered using one of the options: <Wireless sensor> or <Registration>. Next, press the communication button on the
sensor within 30 seconds. If the registration process has been successful, the controller will display a message to confirm.
If an additional sensor has been registered, the main display will show information about WiFi signal and battery level.
NOTE
If the battery is flat or there is no communication between the sensor and the controller, the controller will use
the built-in sensor.

10.4. SENSOR CALIBRATION

Sensor calibration should be performed during installation or after a longer period of using the regulator when the room
temperature (room sensor) or external temperature (external sensor) measured by the sensor is different from actual
temperature. Range of regulation is -10 to +10 ⁰C with the accuracy of 0,1°C.
11.

WEEKLY CONTROL

The user may configure a weekly control schedule for house and domestic hot water heating on particular days of the
week and hours. It is possible to create 3 time periods for each week using UP and DOWN arrows. The settings for a
particular day may be copied into next ones.

Select the day to be configured.

Select the heating periods which will be active and
configure their time limits.

Within the time periods the controller will operate
according to pre-set temperature settings. Outside these
periods the controller operation is configured by the user
in Heating circuit -> Type of control -> Weather-based
control -> Heating reduction – if <ON/OFF> is selected,
the controller deactivates a given circuit whereas if
<Reduced> is selected, the controller operates according
to reduced temperature settings.
12.

LANGUAGE

This option is used to select the software language preferred by the user.
13.

SOFTWARE VERSION

Tap on this icon to view the CH boiler manufacturer's logo, the software version.
NOTE
When contacting Service Department of TECH company it is necessary to provide the software version number.
14
