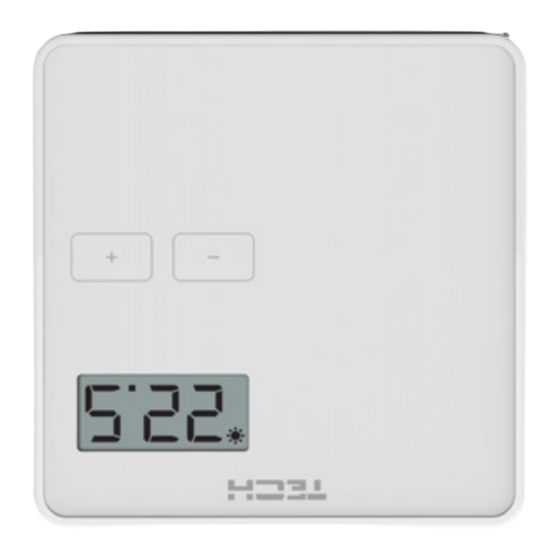

Tech Controllers EU-294 v2 User Manual

TECH STEROWNIKI II Sp. z o.o. company ensures to the Buyer proper operation of the device for the period of 24 months from the date
of sale. The Guarantor undertakes to repair the device free of charge if the defects occurred through the manufacturer's fault. The device should be
delivered to its manufacturer. Principles of conduct in the case of a complaint are determined by the Act on specific terms and conditions of consumer
sale and amendments of the Civil Code (Journal of Laws of 5 September 2002).
CAUTION! THE TEMPERATURE SENSOR CANNOT BE IMMERSED IN ANY LIQUID (OIL ETC). THIS MAY RESULT IN DAMAGING THE CONTROLLER
AND LOSS OF WARRANTY! THE ACCEPTABLE RELATIVE HUMIDITY OF THE CONTROLLER'S ENVIRONMENT IS 5÷85% REL.H. WITHOUT THE STEAM
CONDENSATION EFFECT. THE DEVICE IS NOT INTENDED TO BE OPERATED BY CHILDREN.
Activities related to setting and regulation of the controller parameters described in the Instruction Manual and parts wearing out during
normal operation, such as fuses, are not covered by warranty repairs. The warranty does not cover damages arising as a result of improper operation
or through the user's fault, mechanical damage or damage created as a result of fire, flood, atmospheric discharges, overvoltage or short-circuit.
The interference of an unauthorized service, wilful repairs, modifications and construction changes cause the loss of Warranty. TECH controllers have
protective seals. Removing a seal results in the loss of Warranty.
The costs of unjustifiable service call to a defect will be borne exclusively by the buyer. The unjustifiable service call is defined as a call to
remove damages not resulting from the Guarantor's fault as well as a call considered unjustifiable by the service after diagnosing the device (e.g. damage
of the equipment through the fault of the client or not subject to Warranty), or if the device defect occurred for reasons lying beyond the device.
In order to execute the rights arising from this Warranty, the user is obliged, at his own cost and risk, deliver the device to the Guarantor
along with a correctly filled-in warranty card (containing in particular the sale date, the seller's signature and a description of the defect) and sales proof
(receipt, VAT invoice, etc.). The Warranty Card is the only basis for repair free of charge. The complaint repair time is 14 days.
When the Warranty Card is lost or damaged, the manufacturer does not issue a duplicate.
......................................
seller's stamp
Technical data
Room temperature adjustment range..........................................................50C-350C
Power supply...........................................................................batteries 2xAAA 1,5V
Potential-free cont. nom. out. load (EU-294v1).......................... 230V AC / 0,5A (AC1) *
Measurement error....................................................................................+/-0,50C
Frequency (EU-294v2)................................................................................868MHz
EU Declaration of conformity
Hereby, we declare under our sole responsibility that EU-294 v1
manufactured by TECH STEROWNIKI II Sp. z o.o., head-quartered
in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive
2014/35/EU of the European Parliament and of the Council of 26 February
2014 on the harmonisation of the laws of Member States relating to the
making available on the market of electrical equipment designed for use
within certain voltage limits (EU OJ L 96, of 29.03.2014, p. 357), Directive
2014/30/EU of the European Parliament and of the Council of 26 February
2014 on the harmonisation of the laws of Member States relating to
electromagnetic compatibility (EU OJ L 96 of 29.03.2014, p.79), Directive
2009/125/EC establishing a framework for the setting of ecodesign
requirements for energy-related products as well as the regulation by the
MINISTRY OF ENTREPRENEURSHIP AND TECHNOLOGY of 24 June 2019
amending the regulation concerning the essential requirements as regards
the restriction of the use of certain hazardous substances in electrical
and electronic equipment, implementing provisions of Directive (EU)
2017/2102 of the European Parliament and of the Council of 15 November
2017 amending Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and electronic equipment (OJ L
305, 21.11.2017, p. 8).
For compliance assessment, harmonized standards were used:
PN-EN IEC 60730-2-9:2019-06, PN-EN 60730-1:2016-10
EN IEC 63000:2018 RoHS.
Wieprz, 08.04.2020
Safety
Before using the device for the first time the user should read the
following regulations carefully. Not obeying the rules included in this
manual may lead to personal injuries or controller damage. The user's
manual should be stored in a safe place for further reference. In order to
avoid accidents and errors it should be ensured that every person using
the device has familiarized themselves with the principle of operation as
well as security functions of the controller. If the device is to be sold or
put in a different place, make sure that the user's manual is there with
the device so that any potential user has access to essential information
about the device.
The manufacturer does not accept responsibility for any injuries or
damage resulting from negligence; therefore, users are obliged to take
the necessary safety measures listed in this manual to protect their lives
and property.
WARNING
• High voltage! Make sure the regulator is disconnected from
the mains before performing any activities involving the
power supply (plugging cables, installing the device etc.)
• The device should be installed by a qualified electrician.
• Before starting the controller, the user shoud measure
earthing resistance of the electric motors as well as the
insulation resistance of the cables.
• The regulator should not be operated by children.
WARRANTY CARD
Radio module specifications EU-294v2
Power supply............................................................................230V/+/-10%/50Hz
Operation temperature.............................................................................50C-500C
Frequency................................................................................................868MHz
24V DC / 0,5A (DC1) ** Potential-free cont. nom. out. load......................................... 230V AC / 0,5A (AC1) *
* AC1 load category: single-phase, resistive or slightly inductive AC load.
** DC1 load category: direct current, resistive or slightly inductive load.
Hereby, we declare under our sole responsibility that EU-294 v2
manufactured by TECH STEROWNIKI II Sp. z o.o., head-quartered
in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive
2014/53/EU of the European parliament and of the Council of 16 April
2014 on the harmonisation of the laws of the Member States relating to the
making available on the market of radio equipment, Directive 2009/125/
EC establishing a framework for the setting of ecodesign requirements
for energy-related products as well as the regulation by the MINISTRY OF
ENTREPRENEURSHIP AND TECHNOLOGY of 24 June 2019 amending the
regulation concerning the essential requirements as regards the restriction
of the use of certain hazardous substances in electrical and electronic
equipment, implementing provisions of Directive (EU) 2017/2102 of the
European Parliament and of the Council of 15 November 2017 amending
Directive 2011/65/EU on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (OJ L 305, 21.11.2017,
p. 8).
For compliance assessment, harmonized standards were used:
PN-EN IEC 60730-2-9 :2019-06 art. 3.1a Safety of use
PN-EN 62479:2011 art. 3.1 a Safety of use
ETSI
compatibility
ETSI EN 301 489-3 V2.1.1:2019-03 art.3.1 b Electromagnetic compatibility
ETSI EN 300 220-2 V3.2.1 (2018-06) art.3.2 Effective and coherent use
of radio spectrum
ETSI EN 300 220-1 V3.1.1 (2017-02) art.3.2 Effective and coherent use
of radio spectrum
EN IEC 63000:2018 RoHS
Wieprz, 08.04.2020
If pump manufacturer requires an external main switch, power supply fuse
or additional residual current device selective for distorted currents it is
recomemnded not to connect pumps directly to pump control outputs.
To avoid damaging to the device, an additional safety circuit must be used
between the regulator and the pump. The manufacturer recommends the
ZP-01 pump adapter, which must be purchased separately.
EU Declaration of conformity
EN 301 489-1 V2.2.3 (2019-11)
WARNING
• The device may be damaged if struck by a lightning. Make
sure the plug is disconnected from the power supply during
storm.
• Any use other than specified by the manufacturer is forbidden.
• Before and during the heating season, the controller should
be checked for condition of its cables. The user should also
check if the controller is properly mounted and clean it if dusty
or dirty.
We are committed to protecting the environment.
Manufacturing electronic devices imposes an obligation
of providing for environmentally safe disposal of used
electronic components and devices. Hence, we have
been entered into a register kept by the Inspection For
Environmental Protection. The crossed-out bin symbol
on a product means that the product may not be
disposed of to household waste containers. Recycling
of wastes helps to protect the environment. The user is
obliged to transfer their used equipment to a collection
point where all electric and electronic components will
be recycled.
......................................
date of sale
24V DC / 0,5A (DC1) **
art.3.1b Electromagnetic
