OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
INGERSOLL RAND COMPANY INC
34800 BENNETT DR, FRASER, MI 48026
www.gardnerdenver.com/en-us/mppumps
RELEASED 03/Sep/2021 12:38:55 GMT

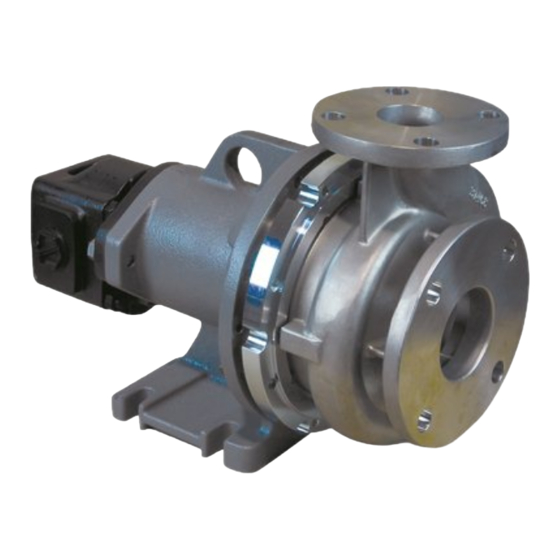

CHEMFLO® 6
(3" X 2")
OPERATING OR SERVICING THIS EQUIPMENT.
145TC
CC Models
Hydraulic Models
Pedestal Models
© 2021
184TC and 215TC

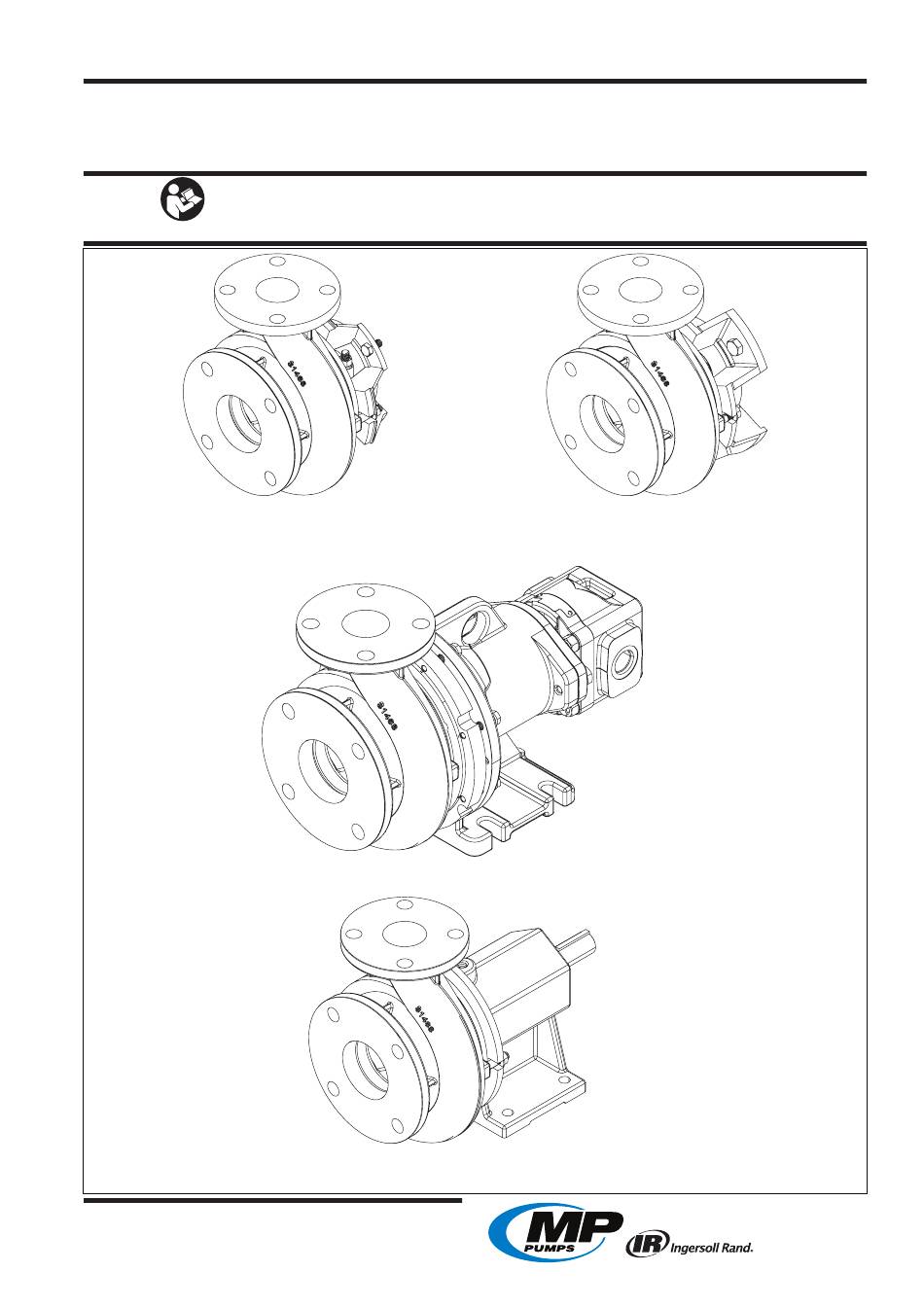

Figure 1
CHEMFLO 6
RELEASED:
8-27-21
(REV: A)
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand MP PUMPS CHEMFLO 6
Summary of Contents for Ingersoll-Rand MP PUMPS CHEMFLO 6
- Page 1 RELEASED 03/Sep/2021 12:38:55 GMT OPERATOR’S MANUAL CHEMFLO 6 RELEASED: 8-27-21 INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE (REV: A) CHEMFLO® 6 (3” X 2”) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. 145TC 184TC and 215TC CC Models...
-
Page 2: General Description
RELEASED 03/Sep/2021 12:38:55 GMT GENERAL DESCRIPTION CHEMFLO 6: ChemFlo® 6 pumps utilize a semi-open impeller design to al- 3” x 2” End Suction Centrifugal Pump low for passage of larger solid sizes and a totally enclosed im- Made with high quality investment cast 316 stainless steel peller to meet high efficiency standards. -
Page 3: Operating And Safety Precautions
RELEASED 03/Sep/2021 12:38:55 GMT OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. Maximum temperatures are based on CAUTION EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS mechanical stress of seals and elastomers only. Cer- STATIC SPARK HAZARDOUS PRESSURE tain chemicals will significantly reduce maximum safe operating temperature. -
Page 4: Storage Precautions
RELEASED 03/Sep/2021 12:38:55 GMT STORAGE PRECAUTIONS BEARING INSTALLATION (PEDESTAL MODELS): Check the shaft to insure that it rotates freely. Shafts should Do not store filled with fluid at or below freezing temp of be aligned in accordance with the instructions of the cou- process fluid. -
Page 5: Motor Mounting
RELEASED 03/Sep/2021 12:38:55 GMT MOTOR MOUNTING TO ADJUST IMPELLER CLEARANCE: 1. Loosen the impeller drive sleeve Check rotation of the driver to be sure it coincides with the 2. Use a tool such as a screwdriver to push the impeller required rotation of the pump. - Page 6 RELEASED 03/Sep/2021 12:38:55 GMT WORKING OF CENTRIFUGAL PUMP Hd = DISHCARGE HEAD DISCHARGE PIPE DISCHARGE Hs = SUCTION HEAD (NPSHr) OVER HEAD WATER TANK VALVE CASING SUCTION UNION PIPE FLANGE UNION FLANGE EYE OF IMPELLER SUCTION VALVE MINIMIZE LENGTH & AVOID SHARP BENDS NEAR INLET Figure 3 OPERATING INSTRUCTIONS...
-
Page 7: Seal Replacement Instructions
RELEASED 03/Sep/2021 12:38:55 GMT SEAL REPLACEMENT INSTRUCTIONS INSTRUCTIONS FOR SET SCREW TYPE SEAL: Do not remove the seal retaining clips. Slide the seal into DISASSEMBLE THE PUMP: place on the shaft. The end of the shaft will be recessed ap- Drain the system of liquid, break suction and discharge pipe proximately .080”... - Page 8 RELEASED 03/Sep/2021 12:38:55 GMT PARTS LIST / CHEMFLO 6 CC (145TC, 184TC AND 215TC) For 184 TC and 215 Motors Figure 4 PARTS LIST / CHEMFLO 6 CC (145TC, 184TC AND 215TC) Item Description Qty Part No. Item Description Qty Part No. (size) (size) STEEL GRADE...
- Page 9 RELEASED 03/Sep/2021 12:38:55 GMT PARTS LIST / CHEMFLO 6 HYDRAULIC (1.16 AND 1.59) 14 22 Figure 5 PARTS LIST / CHEMFLO 6 HYDRAULIC (1.16 AND 1.59) Item Description Qty Part No. Item Description Qty Part No. (size) (size) Adapter Plate 33366 Volute 31469...
- Page 10 RELEASED 03/Sep/2021 12:38:55 GMT PARTS LIST / CHEMFLO 6 PEDESTAL Figure 6 PARTS LIST / CHEMFLO 6 PEDESTAL Item Description Qty Part No. Item Description Qty Part No. (size) (size) NEOPRENE Pipe Plug 21255 316 SS (1/8” NPT) Slinger 37881 RUBBER/BUNA Volute 31469...
-
Page 11: Service Kits
RELEASED 03/Sep/2021 12:38:55 GMT SERVICE KITS PUMP MODEL PUMP DESCRIPTION SEAL KIT BEARING KIT IMPELLER MP39656 CF6PMP SS:10-3 215TC 5.25 SSC MP51279 #N/A MP31748 MP36117 CF6PMP SS:10-3 215TC 5.25 T-2100 MP51277 #N/A MP31748 MP38494 CF6PMP SS:10-3 215TC 5.40 T-2100 MP51277 #N/A MP34595 MP34259... -
Page 12: Dimensional Data
RELEASED 03/Sep/2021 12:38:55 GMT DIMENSIONAL DATA CF6 PUMPAK FOR 145TC Figure 7 CF6 PUMPAK FOR 184TC Figure 8 Page 12 of 16 CHEMFLO 6 (en) - Page 13 RELEASED 03/Sep/2021 12:38:55 GMT DIMENSIONAL DATA CF6 PUMPAK FOR 215TC Figure 9 CF6 W/1.16 DISP . HYDRAULIC MOTOR Figure 10 CHEMFLO 6 (en) Page 13 of 16...
- Page 14 RELEASED 03/Sep/2021 12:38:55 GMT DIMENSIONAL DATA CF6 W/1.16 DISP . HYDRAULIC MOTOR Figure 11 CF6 PED Figure 12 Page 14 of 16 CHEMFLO 6 (en)
-
Page 15: Troubleshooting
RELEASED 03/Sep/2021 12:38:55 GMT TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY 1. Reprime pump, check that pump and 1. Pump not primed. there are no obstructions in the suc- tion line. 2. Discharge valve closed 2. Check discharge valve. 3. Suction line clogged. 3. - Page 16 RELEASED 03/Sep/2021 12:38:55 GMT PROBLEM PROBABLE CAUSE REMEDY 1. Improper pump/driver alignment. 1. Align shafts. 2. Partly clogged impeller causing 2. Back-flush pump to clean impeller. imbalance. 3. Broken or bent impeller or shaft. 3. Replace as required. 4. Tighten bolts of pump and motor or 4.
