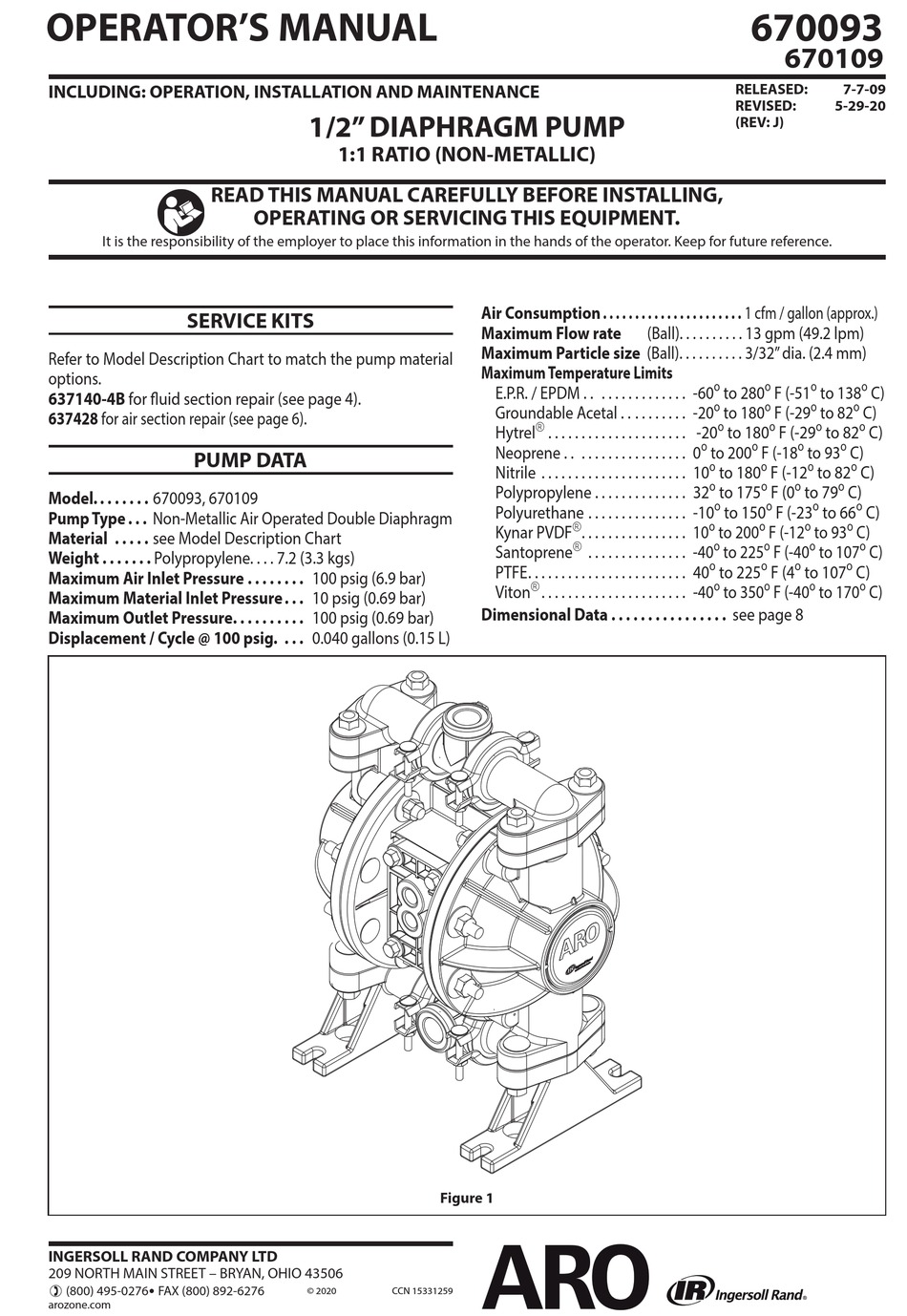

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637140-4B for fluid section repair (see page 4).
637428 for air section repair (see page 6).
PUMP DATA
Model. . . . . . . . 670093, 670109
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart
Weight . . . . . . . Polypropylene. . . . 7.2 (3.3 kgs)
Maximum Air Inlet Pressure . . . . . . . . 100 psig (6.9 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 100 psig (0.69 bar)
Displacement / Cycle @ 100 psig. . . . 0.040 gallons (0.15 L)
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1/2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
© 2020
CCN 15331259
Air Consumption . . . . . . . . . . . . . . . . . . . . . . 1 cfm / gallon (approx.)
Maximum Flow rate
Maximum Particle size (Ball). . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits
E.P.R. / EPDM . . . . . . . . . . . . . . . -60
Groundable Acetal . . . . . . . . . . -20
Hytrel
. . . . . . . . . . . . . . . . . . . . . -20
Neoprene . . . . . . . . . . . . . . . . . . 0
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . . . 32
Polyurethane . . . . . . . . . . . . . . . -10
Kynar PVDF
. . . . . . . . . . . . . . . . 10
Santoprene
. . . . . . . . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . . . . . . . . . 40
Viton
. . . . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Figure 1
670093
670109
RELEASED:
REVISED:
(REV: J)
(Ball). . . . . . . . . . 13 gpm (49.2 lpm)
to 280
F (-51
to 180
F (-29
to 180
F (-29
to 200
F (-18
to 93
to 180
F (-12
to 82
to 175
F (0
to 79
to 150
F (-23
to 200
F (-12
to 93
to 225
F (-40
to 107
to 225
F (4
to 107
to 350
F (-40
to 170
7-7-09
5-29-20
to 138
C)
to 82
C)
to 82
C)
C)
C)
C)
to 66
C)
C)
C)
C)
C)
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand ARO 637140-4B
Summary of Contents for Ingersoll-Rand ARO 637140-4B
- Page 1 OPERATOR’S MANUAL 670093 670109 INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 7-7-09 REVISED: 5-29-20 1/2” DIAPHRAGM PUMP (REV: J) 1:1 RATIO (NON-METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. Air Consumption .
-
Page 2: Operating And Safety Precautions
OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. must comply with local and national laws and safety EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS code requirements. S TATIC SPARK HAZARDOUS PRESSURE Obtain Material Safety Data Sheets on all materials from the supplier for proper handling instructions. -
Page 3: General Description
OPERATING INSTRUCTIONS GENERAL DESCRIPTION Always flush the pump with a solvent compatible with the The ARO diaphragm pump offers high volume delivery even material being pumped if the material being pumped is at low air pressure and a broad range of material compatibility subject to setting up”... - Page 4 PARTS LIST / 670093 and 670109 - FLUID SECTION 637140-4B Fluid Section Service Kits include: Balls, Diaphragms plus “O” ring items: 19, 20, 33 and 93706-1 Key-Lube grease (page 6). Item Description Qty Part No. (size) MATERIAL CODE 1 Rod (1) 93084 [SS] (for model 670093)
- Page 5 PARTS LIST / 670093 and 670109 - FLUID SECTION COLOR CODE Diaphragm Ball Material Color Color Acetal Orange Nitrile Red (−) Red ( ) E.P.R. Blue (−) Blue ( ) Hytrel Cream Neoprene Green (−) Green ( ) Santoprene PTFE White White Polyurethane...
- Page 6 PARTS LIST / 670093 and 670109 - AIR MOTOR SECTION Indicates parts included in 637428 Air Section Repair Kit. Item Description (size) Qty Part No. [Mtl] Item Description (size) Qty Part No. [Mtl] 101 Center Body 97006 [PPG] 167 Pilot Piston 67382 (includes 168 and 169)
- Page 7 PARTS LIST / 670093 and 670109 - AIR MOTOR SECTION 233 103L Position Sensor - when pump is completely assembled. Screw Sensor (233) into Exhaust Cover (129) until it contacts Ring (2). Backout 1- 1 ¼ turns and tighten Jam Nut.
-
Page 8: Troubleshooting
TROUBLESHOOTING Product discharged from air exhaust. Low output volume. Check for diaphragm rupture. Check air supply. Check tightness of (6) diaphragm nut. Check for plugged outlet hose. For the pump to prime itself, it must be mounted in Air Bubbles in product discharge. the vertical position so that the balls will check by Check connections of suction plumbing. - Page 9 REMOTE HOOK-UP CONNECTIONS TYPICAL BASIC REMOTE HOOK-UP (#10 - 32 PORTS ON PUMP ARE PLUGGED) NOTE: Pump charges and exhausts through remote valve. Supply air. Spring return - solenoid actuated 4-way valve. Figure 5 TYPICAL REMOTE HOOK-UP WITH POSITIVE FEEDBACK SIGNAL NOTE: Pump may not be short-stroked with this system.
- Page 10 REMOTE HOOK-UP CONNECTIONS TYPICAL REMOTE HOOK-UP WITH ENHANCED POSITIVE FEEDBACK SIGNAL CAPABILITY Supply air. Air pilot return - solenoid actuated 4-way valve. PLC / Controller signal. Pneumatic feedback signal from pump. Pneumatic echo can be used to interrupt the PLC signal and set alarm.
- Page 11 NOTES 670093 (en) Page 11 of 12...
- Page 12 PN 97999 - 1471 Page 12 of 12 670093 (en)
