Mach Power WL-CPE5G24-063 User Manual

Clouding wireless managed cpe / ap outdoor 5g 300mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

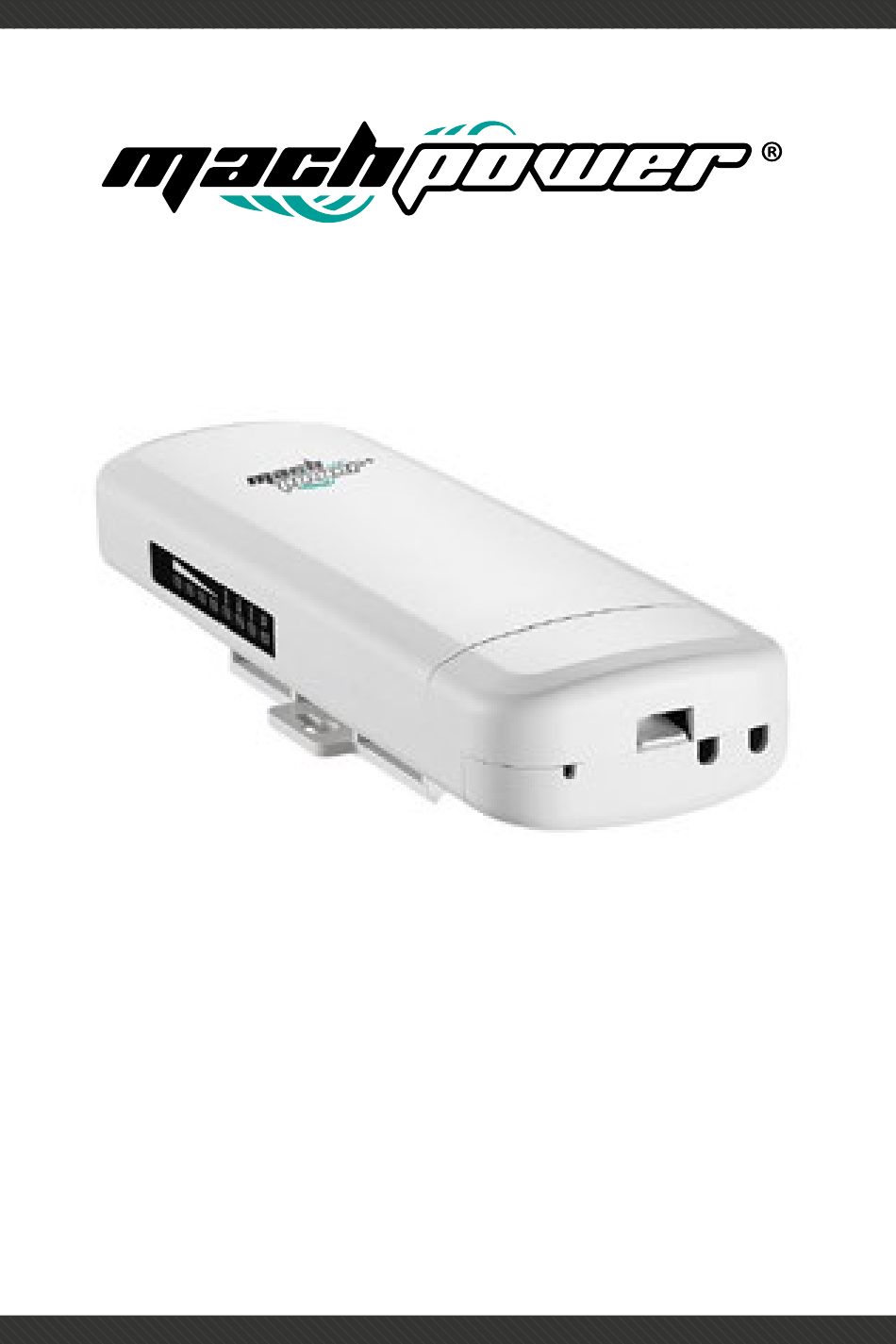

CLOUDING WIRELESS MANAGED
CPE / AP OUTDOOR 5G 300MBPS
WL-CPE5G24-063
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-CPE5G24-063 and is the answer not in the manual?

Questions and answers

Related Manuals for Mach Power WL-CPE5G24-063

Summary of Contents for Mach Power WL-CPE5G24-063

  • Page 1 CLOUDING WIRELESS MANAGED CPE / AP OUTDOOR 5G 300MBPS WL-CPE5G24-063 USER MANUAL...
  • Page 2 REV221218...
  • Page 3 Thanks for choosing one of our products ________________________________ INDEX Declaration General warnings Chapter 1 Connection and power supply 1.1 Connection and power supply 1.2 Reset 1.3 Connection between CPE, PoE adapter and PC Chapter 2 Login Chapter 3 Quick configuration of the CPE 3.1 Gateway Mode 3.2 Wifi repeater configuration and station operation 3.3 AP Mode...

  • Page 4: General Warnings

    - Should the appliance be used in a manner not specified by the manufacturer, the protections provided by the appliance could be compromised; This manual guides the configuration and installation of the WL-CPE5G24-063. For a simple and intuitive configuration, it is equipped with a graphical interface for managing...

  • Page 5: Chapter 1 Connection And Power Supply

    CHAPTER 1 CONNECTION AND POWER SUPPLY Connection and power supply Use a 12V power supply, a 24V PoE adapter or a 24V PoE switch, the PoE port is WAN / LAN Make sure that the power supply used is fully functional, malfun- ction may cause irreparable damage.

  • Page 6: Chapter 2 Login

    2. Click on Advanced setting>Management > Save/Reload Settings > Reset Settings. Then wait for the reset. Connection between CPE, PoE adapter and CHAPTER 2 LOGIN 1. Connect the CPE to the PC as shown in the previous chapter. 2. Configure the local IP address of the PC as 192.168.0. X (X between 2 and 254), subnet mask: 255.255.255.0, as shown in the following images 3.

  • Page 7: Chapter 3 Quick Configuration Of The Cpe

    4. After logging in, a screen will appear as shown in the following image. It will then be possible to select the working mode among the 4 available: Gateway Mode, Repeater Mode, AP mode and Wisp mode CHAPTER 3 QUICK CONFIGURATION OF THE CPE Gateway Mode Cliccare su “Gateway Mode”...
  • Page 8 Wifi repeater configuration and station operation a. Access the “REPEATER MODE” section and click on “SCAN AP” to search for avai- lable wifi networks b. Select the SSID you want to expand, for example MachPower5G...
  • Page 9 c. Enter the password of the AP and click on “APPLY CHANGES” If you do not open the screen as a picture, check your browser settings. If the CPE does not find any SSIDs, check that there are 5.8GHz wireless signals d.
  • Page 10 f. To check the SSID in repeater mode click on ADVANCED SETTINGS> 5.8GHz Reapeter g. Click on “5.8GHz Virtual AP” to change the SSID of the AP in repeater mode, follow the steps as well as the image. AP Mode By connecting the AP via LAN cable to the router / switch, the AP will automatically transmit the WIFI signal.
  • Page 11 WISP In this work mode the user can select the type of WAN access, set the SSID, password and channel. Advanced settings 3.5.1 System status By clicking on ADVANCED SETTINGS you can check the status, the firmware version, etc ... Click on “5.8GHz Wireless Status to check the status of the WLAN, signal strength, SSID, etc ...
  • Page 12 Per verificare lo stato LAN, visionare immagine sottostante 3.5.2 Operation mode Set up the operations manually, choose the operating mode and apply the changes. 3.5.3 5.8GHz repeater In this section the user can search for SSID of the AP, disable or enable the SSID of the CPE, modify the channel etc ...
  • Page 13 3.5.4 Network settings LAN interface 3.5.5 Management In this section it is possible to set the date, the time to view the logs, firmware updates and change the username and password for the login 3.5.6 Upgrade firmware Click on upgrade, select the file for the update then click on UPGRADE to update After updating, click on SAVE / RELOAD SETTINGS and reset the settings.
  • Page 14 PC settings Set the computer’s TCP / IP as: “Obtain an IP address automatically, it automatically obtains the DNS server address” as shown in the image. The PC will get the IP address from the router or the base station...

  • Page 15: Chapter 4 Troubleshooting

    CHAPTER 4 TROUBLESHOOTING SYS indicator off Make sure the PoE module con- nection is correct. The POE port connects to the CPE, the LAN port with the computer Unable to access the CPE via a Make sure that the IP address WEB interface of the PC and the CPE are in the same network segment.

  • Page 16: Chapter 5 Declaration Of Conformity

    How to reset the CPE Press the RESET button for about 15 seconds after switching on. The CPE will reset to the factory values. CHAPTER 5 DECLARATION OF CONFORMITY RoHS We declare that the construction materials used in our products comply with the provisions of Directive 2011/65 / EU (RoHS).
  • Page 20 For any information and updates on the product > www.machpower.it visit ou website Mach Power is a registered trademark ® All rights reserved...
