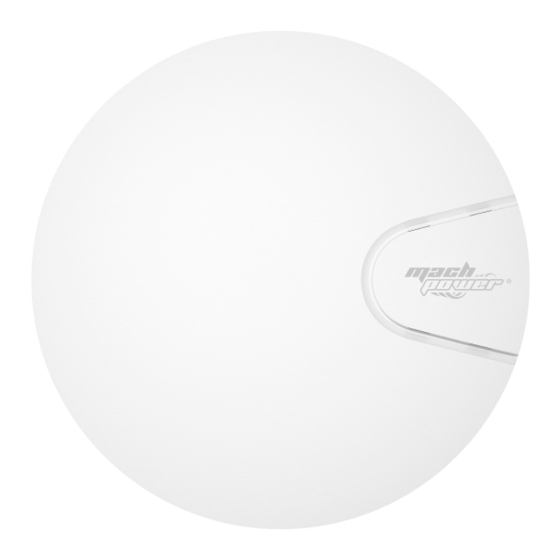

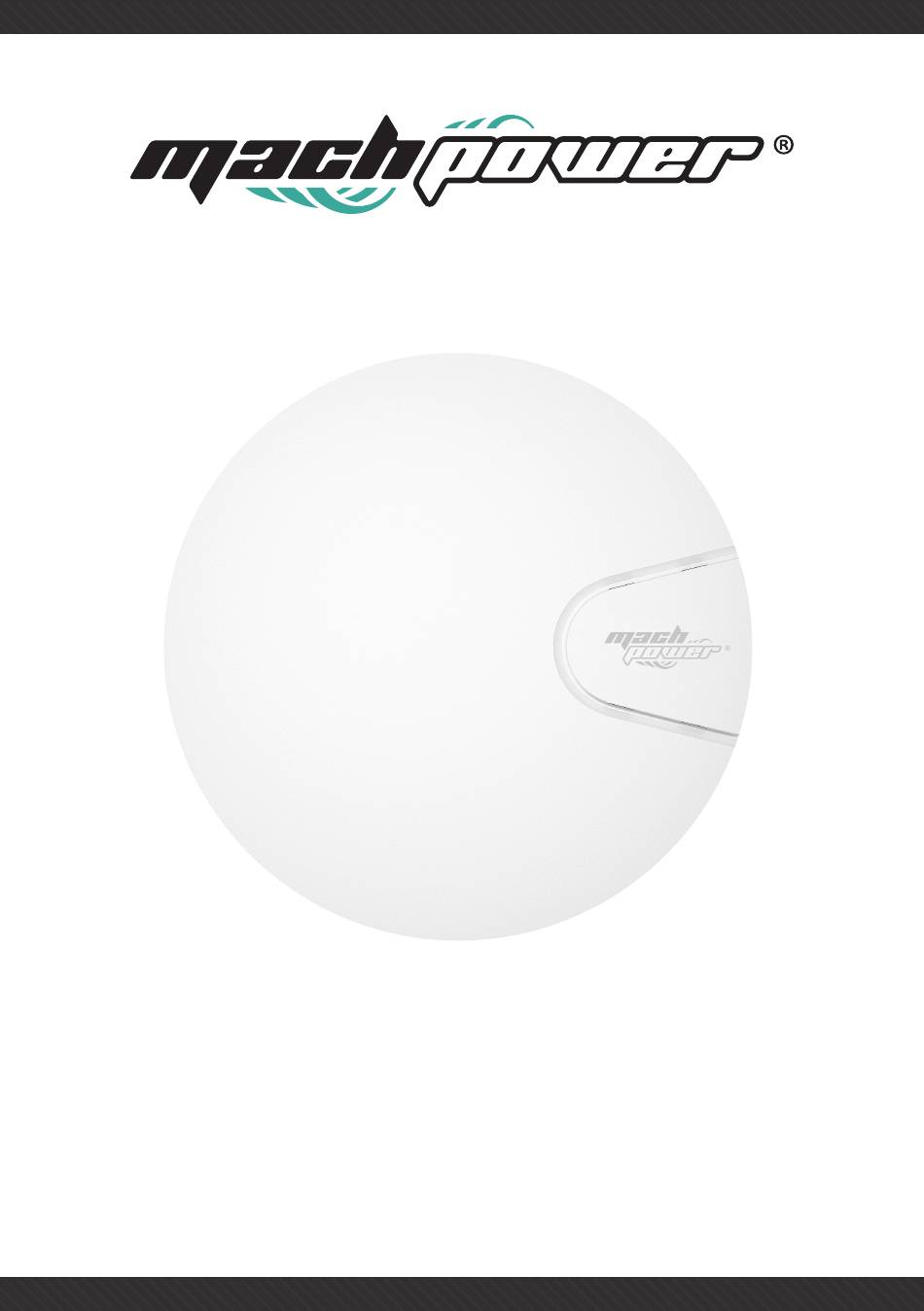

- Page 1 IN CEILING ACCESS POINT 300MBPS WL-ICNAP24-074 USER MANUAL...
- Page 2 REV011118...
-
Page 3: Table Of Contents
Thanks for choosed our product ___________________________________________________________________ INDEX General Warnings CHAPTER 1 Hardware and Operation mode Instruction 1.1 AP interface 1.2 Power supply 1.3 AP installation CHAPTER 2 Connect Wireless AP with PC CHAPTER 3 Login CHAPTER 4 WEB GUI interface Setting 4.1 Status 4.2 Wizard Configuration 4.2.1 Gateway Mode 4.2.2 WiFi Repeater mode 4.2.3 WISP Operation mode 4.2.4 AP Operation mode 4.3 Advanced Setting... -
Page 5: General Warnings
General warnings • Fasten the AP in the desired position, considering that as the device being installed is a radio device, the following simple rules must be observed: • Avoid enclosing the appliance between two metal walls; • The efficiency of radio transmission is reduced when there are obstacles, metal shelving or other objects that may block the recep- tion of the radio signals;... -
Page 6: Chapter 1 Hardware And Operation Mode Instruction
CHAPTER 1 HARDWARE AND OPERATION MODE INSTRUCTION AP interface RESET RST: Reset Button, it make AP revert to default data after press it 15 seconds. WAN: WAN Port, PoE port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi Repeater ope- ration mode Led indicator Green: Power indicator... -
Page 7: Ap Installation
AP installation For the Ceiling Wireless AP, will be installed under ceiling based on following steps:... -
Page 8: Chapter 2 Connect Wireless Ap With Pc
CHAPTER 2 CONNECT WIRELESS AP WITH PC Use can connect the PC with wireless AP by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Please note: the default SSID is MachPower 2.4G, SSID’s password is 12345678 The diagram of LAN cable connection showed as follow CHAPTER 3 LOGIN... -
Page 9: Chapter 4 Web Gui Interface Setting
3. Input 192.168.0.254 into IE browser, then pop up the login page, the default login password: admin, then login, please do following next image 4. After login, then next image Device Status will be showed; This page will show the Wireless AP’s default operation mode, channel, connection status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location, hardware/firmware version. - Page 10 In this page, show the AP’s default operation mode, channel, end user QTY, connection status, CPU usage status, Wireless, LAN and AP location info. Then in Wireless Setting, GUI configuration page showed as below: User can configure the SSID, password, band width, channel here, then Apply to finish. LAN Setting to configure the DHCP or Fix IP AP location setting: can mark where the AP set up, and AP name as next image...
-
Page 11: Wizard Configuration
Wizard Configuration Wizard: It instruct users to configure wireless AP’s operation mode based on needs: there are four operation mode including gateway, repeater, WISP, Wireless AP. Please confirm the operation mode first before configuration starting. Click Wizard in Status page, will pop up following page to configure the operation mode and there are explanation for each operation mode for better application 4.2.1 Gateway Mode... - Page 12 performance will be more stable. Picture showed as below: When click Next, then will complete the Gateway mode setting and show following picture When return to Status, will show wireless router’s SSID, internet connection, LAN connection status showed as follow...
-
Page 13: Wifi Repeater Mode
4.2.2 WiFi Repeater mode 1. Login the Web management page, click “Wizard”, then “WiFi Repeater” 2. Select the AP’s SSID want to bridge, take “MachPower 2.4G” for example, then input the AP’s key, click next to complete Click Return button, will back to Status, show Repeater mode data, show fail or success, and user can configure this data in this page if required. -
Page 14: Wisp Operation Mode
4.2.3 WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the steps showed in picture Configure the right WAN setting in WISP operation mode, then next to complete Then complete and back to status, will show the connection fail or success, then can configure the data based on request:... -
Page 15: Ap Operation Mode
Remark: When click WAN Setting, will pop up following picture to ask you choose PPPoE, DHCP or Static IP 4.2.4 AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting. After LAN setting, complete the AP mode configuration and back to Status:... -
Page 16: Advanced Setting
Advanced Setting In advanced setting, mainly for wireless AP’s device status, wireless setting, Networking setting and AP management configure. Let’s Click Advanced Setting in status page, will show return home, Setup Wizard which we showed before. Let’s shown more in Device Status, Wireless, Network and Management in following pages: Device Status: to show the Wireless AP’s status, Wireless Status and LAN status. -
Page 17: Wireless
4.3.1 Wireless For wireless, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID, tag VLAN, RF power adjust from Basic Setting, Virtual AP, Access control and Advanced Setting: Wireless Status: On mean SSID on, Off mean SSID off. 2G Wireless Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more easy to choose the channel with less wireless AP, then to avoid the wifi interface. -
Page 18: Virtual Ap
4.3.2 Virtual AP There are 3 virtual AP in 2.4G wireless, if need do multi SSID, then users can configure it showed in following picture: 4.3.3 Access Control Allow or deny the users access into this wireless AP based on MAC address 4.3.4 Advanced Settings In this page, will show the regional, mode, RF Power, Max user access... -
Page 19: Network
4.3.5 Network In network, mainly to show the LAN setting and tag VLAN as follow: In LAN Settings, mainly including static IP and DHCP In VLAN part, need an VLAN switch and make sure the multi SSID is enable, then input the VLAN ID to different SSID 4.3.6 Management In this part, show the system time, Logs, upgrade firmware, system, user info. -
Page 20: Chapter 5 Share Internet And Obtain Ip Address Automatically
CHAPTER 5 SHARE INTERNET AND OBTAIN IP ADDRESS AUTOMATICALLY Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet. Then if you want change the AP to FIT AP mode, you can open the IE browser and type in :”http://192.168.188.253/mode_switch. -
Page 21: Chapter 6 Trouble Shooting
CHAPTER 6 TROUBLE SHOOTING The Failure phenomenon and solution Failure phenomenon Solution SYS Indicator off Pls make sure the PoE module connection is right. POE Port connect with AP, LAN port connect with computer Can’t land to Wireless AP through Web page Pls check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click “start”-“Run”... - Page 24 Mach Power ® is a registered trademark All Rights Reserved > visit our website www.machpower.it...
