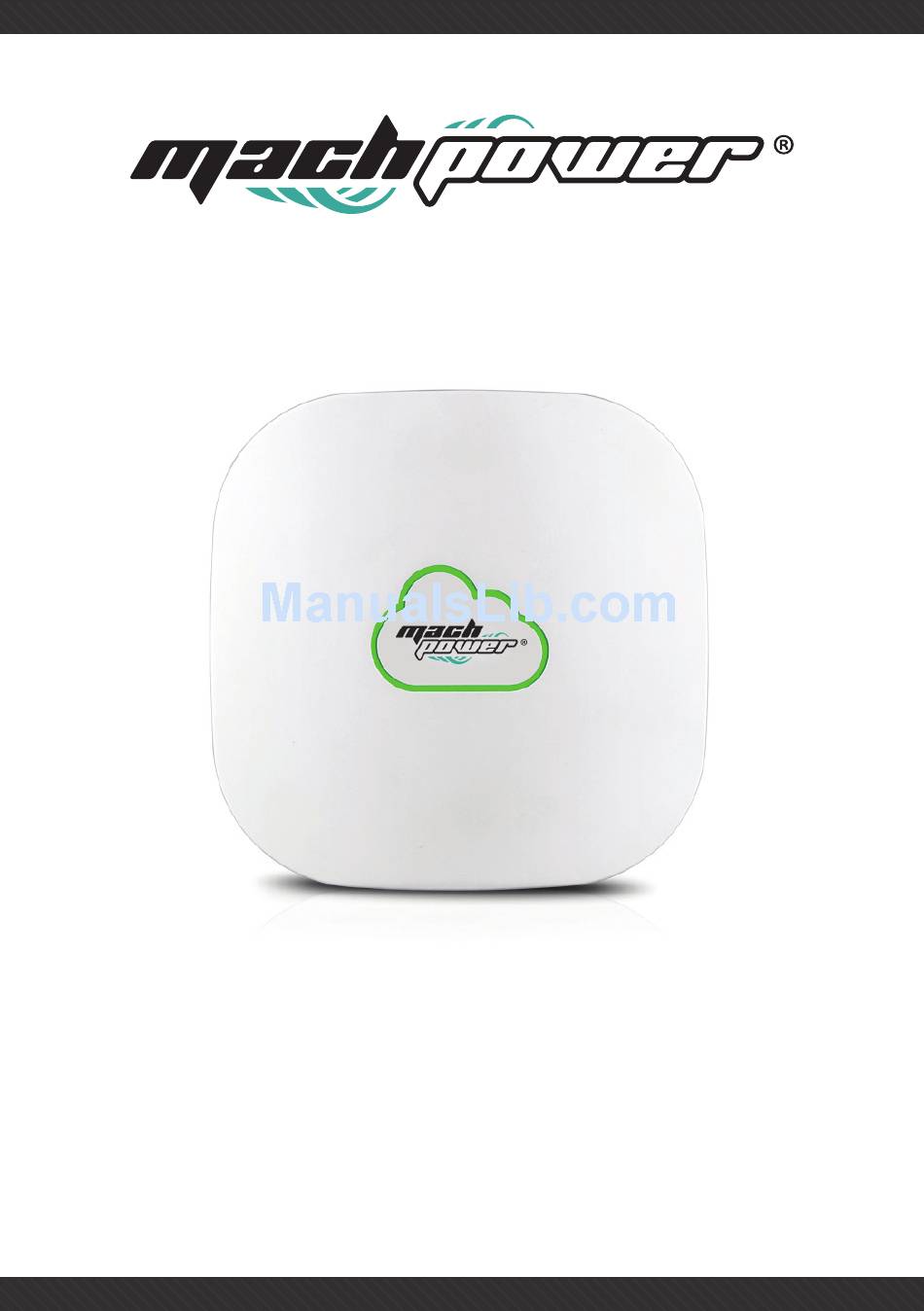

- Page 1 IN CEILING DUAL BAND ACCESS POINT/ ROUTER 750MBPS WL-ICDBG24-051 USER MANUAL...
- Page 2 REV.240517...
-
Page 3: Table Of Contents
Thanks for choosed our product ________________________________ INDEX General Warning CHAPTER 1 Hardware and Operation mode Instruction 1.1 LED indicator 1.2 AP Interface 1.3 Power Supply 1.3.1 PoE Adapter Power Supply 1.3.2 Powered by PoE Switch 1.4 Operation Mode 1.4.1 Wirelss AP 1.4.2 Wirelss Repeater 1.4.3 Gateway 1.5 Connect Wireless AP with PC... - Page 5 General warnings • Fasten the AP in the desired position, considering that as the device being installed is a radio device, the following simple rules must be observed: • Avoid enclosing the appliance between two metal walls; • The efficiency of radio transmission is reduced when there are obsta- cles, metal shelving or other objects that may block the reception of the radio signals;...
-
Page 6: Hardware And Operation Mode Instruction
CHAPTER 1 HARDWARE AND OPERATION MODE INSTRUCTION LED indicator Green: Power Indicator Blue: WiFi Indicator AP Interface RST: Reset Button, it make AP revert to default data after press it 15 sec. WAN: Gigabit WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi Repeater operation mode LAN: Gigabit LAN Port to end users LED: LED Indicator of WAN port and LAN port... -
Page 7: Powered By Poe Switch
1.3.2 Powered by PoE Switch The connection diagram, Internet cable from PoE Switch to Ceiling AP’s WAN Port, then PC access into ceiling AP wired/wireless. Pls notevthe PD wireless AP support 24V PoE, m the PoE switch should comply with 24V PoE. Operation Mode There are three operation mode on this wireless AP: 1.4.1... -
Page 8: Wirelss Repeater
1.4.2 Wirelss Repeater Wireless receiver and transmit, to extend the existing wireless networ- king for more range. 1.4.3 Gateway Supply WAN connection from DSL, Cable MOdem or broadband mobile phone network through PPPoE, Static, IP, Dynamic IP. -
Page 9: Connect Wireless Ap With Pc
Connect Wireless AP with PC Use can connect the PC with wireless AP by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is MachPower2.4G/MachPower5G, SSID’s password is 12345678 The diagram of LAN cable connection showed as follow: CHAPTER 2 LOGIN Connect the Ceiling AP with computer... -
Page 10: Login
Input 192.168.0.253 into IE browser, then pop up the login page, the default login user name: admin, Passwords: admin, pls do following the next image After login, then Device Status will be showed; This page will show the AP’s default operation mode, channel, con- nection status, CPU usage, Wireless settings, LAN Setting, AP’s Loca-... -
Page 11: Quickly Configure Wireless Ap
tion, CPE’s hardware/firmware version CHAPTER 3 QUICKLY CONFIGURE WIRELESS AP Gateway Mode Click “Gateway Mode” under following picture and choose the right WAN access type, then input the right SSID, Channel, key as like. -
Page 12: Wifi Repeater And Station Operation Configuration
ù WiFi Repeater and Station operation configuration A. Login the Web management page, click “ Repeater Mode”, then “Scran AP” B. Select the AP’s SSID want to bridge, take TEST2.4G for example. -
Page 13: Ap Operation Mode
If your computer can’t pop up this window, pls check your IE explorer and see whether it is blocked already. And if this Wireless AP can’t scan any SSID, pls check if there are 5G wireless signal. C. input the AP’s key, and apply changes AP Operation mode Choose the AP operation mode, AP Location as well as the wireless basic settings for the 2.4Ghz and 5.8Ghz,... -
Page 14: Wisp Operation Mode
WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the stepes showed in picture: Then the device were in WISP mode, users can check the details under status;... -
Page 15: Advanced Setting
Advanced Setting In advanced setting, user can check the ceiling AP’s firmware version, working status, 2.4G/5.8Ghz wireless, LAN Status, upgrade firmware, Reset. 3.5.1 Device Status This page will show basic parameters for this unit, like firmware ver- sion,hardware version,etc; 3.5.2 2.4Ghz/5.8Ghz Wireless Setting On this page, users can configure the basic wireless settings freely 3.5.3... -
Page 16: Network Setting
showed in following picture: 3.5.4 Network setting In this page, users can set up the basic LAN setting... -
Page 17: Management
3.5.5 Management In this part, show the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware, as well as Log-in username/password modification;... -
Page 18: Share Internet And Obtain Ip Address Automatically
3.5.6 Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet. -
Page 19: Trouble Shooting
CHAPTER 4 TROUBLE SHOOTING The Failure phenomenon and solution Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port con- SYS Indicator off nect with AP, LAN port connect with computer Pls check the IP address of computer and Wireless AP to see whether they are in same networ- king segment, The method is click... - Page 20 Try to scan the avaliable wireless networking again; Make sure the Wireless AP’s wire- less standard is correct; (2.4Ghz signal should connect 2.4Ghz, 5.8Ghz signal should con- Wireless AP can’t connect with AP nect 5.8Ghz signal); (the status display unconnected) The Security and passwords are matched between Wireless AP and AP;...
-
Page 21: Declaration Of Conformity
CHAPTER 5 DECLARATION OF CONFORMITY RoHS It is stated that the construction materials used in our pro- ducts comply with the requirements of Directive 2011/65 / EU (RoHS). Declaration of Conformity Compliance with European Directives The product complies with the requirements of the Low Voltage Directive (Safety) 2014/35 / EU and subsequent amendments. - Page 22 This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits have been developed to ensure reasonable protection against harmful interference in domestic installa- tions.
- Page 24 Mach Power ® is a registered trademark All Rights Reserved > www.machpower.it visit our website...
