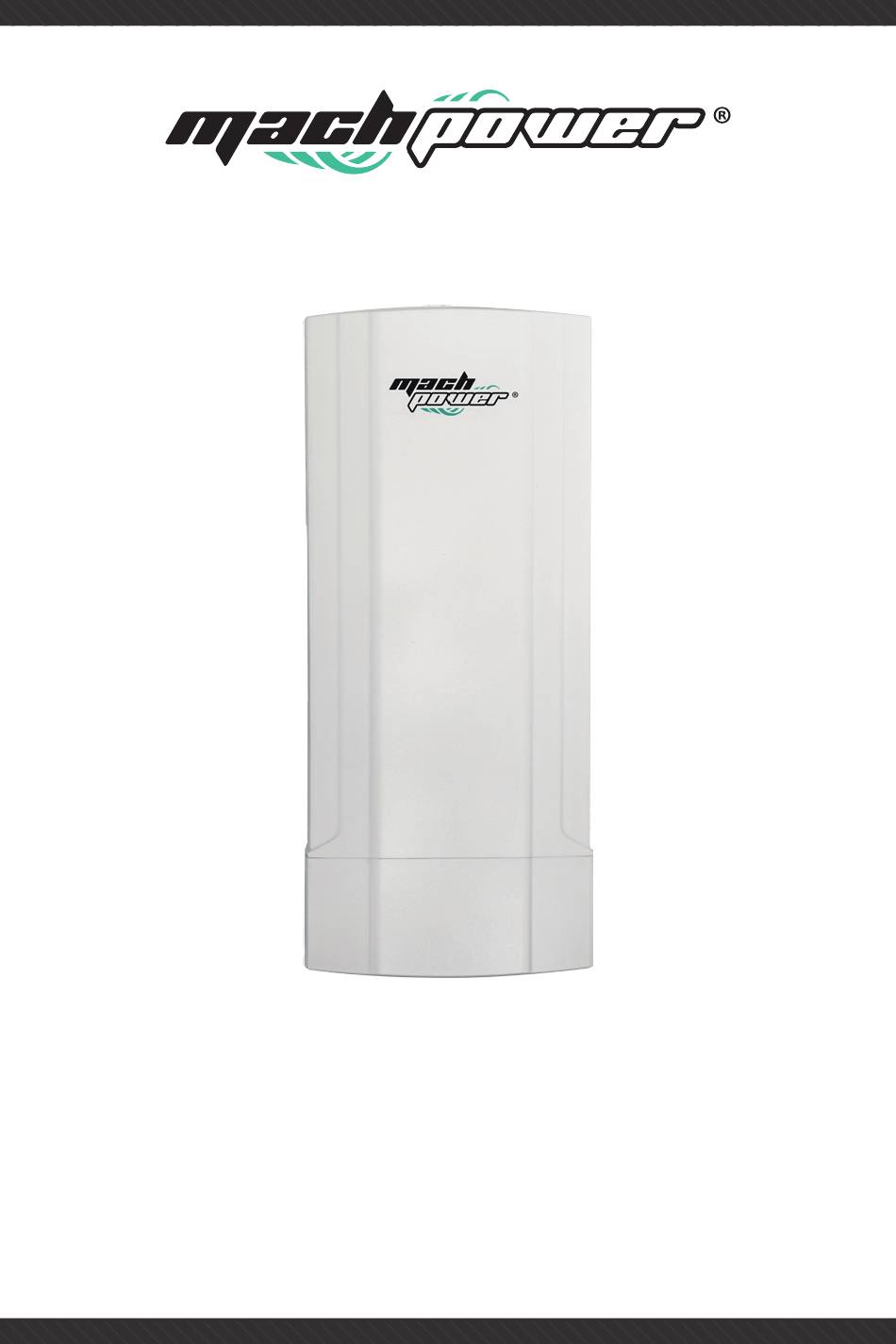

- Page 1 CLOUDING WIRELESS MANAGED CPE/AP OUTDOOR 5G 900MBPS WL-CPE5G24-064 USER MANUAL...
- Page 2 REV.070617...
-
Page 3: Table Of Contents
Thanks for choosed our product ____________________________________ INDEX General Warning CHAPTER 1 Hardware and Operation mode Instruction 1.1 LED indicators 1.2 CPE interface 1.3 Power Supply 1.3.1 Powered by PoE Switch 1.3.2 Connect Outdoor CPE with PC CHAPTER 2 Log in CHAPTER 3 WEB GUI interface Setting 3.1 Status... - Page 5 General warnings • Fasten the CPE in the desired position, considering that as the device being installed is a radio device, the following simple rules must be observed: • Avoid enclosing the appliance between two metal walls; • The efficiency of radio transmission is reduced when there are obsta- cles, metal shelving or other objects that may block the reception of the radio signals;...
-
Page 6: Hardware And Operation Mode Instruction
CHAPTER 1 HARDWARE AND OPERATION MODE INSTRUCTION LED indicators Green: Power Indicator Blue: Wi-Fi Indicator CPE interface RST: Reset Button, it make AP revert to default data after press it 15 seconds. WAN: Gigabit WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Outdoor CPE and WiFi Repeater operation mode LAN: Fast LAN Port to end users LED: LED Indicator of WAN port and LAN port... -
Page 7: Connect Outdoor Cpe With Pc
should comply with IEEE 802.3at PoE standard. image1 1.3.2 Connect Outdoor CPE with PC Use can connect the PC with Outdoor CPE by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Please note: the default SSID is MachPower5G, SSID password is The diagram of LAN cable connection showed as follow: The diagram of LAN cable connection showed as follow: images2... -
Page 8: Login
CHAPTER 2 LOGIN 1. Connect the Outdoor CPE with computer 2. Configure the PC’s local connection IP address as 192.168.0.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow image3 image4 to finish. image3 image4... -
Page 9: Web Gui Interface Setting
3. Input 192.168.0.254 into IE browser, then pop up the login page, the default login (please do following image5) User name: admin Passwords: admin image5 CHAPTER 3 WEB GUI INTERFACE SETTING Status After login, then image6 Device Status will be showed: image6... - Page 10 In this Outdoor CPE, the default operation mode is AP mode. Then in 5.8G Wireless Setting, GUI configuration page showed as below: User can configure the SSID, password, band width, channel here, then Apply to finish image7 LAN Setting to configure the DHCP or Fix IP image8...
-
Page 11: Wizard Configuration
AP location setting: can mark where the AP set up, and AP name as image9 image9 Wizard Configuration Click Wizard in Status page, will pop up following page to configure the operation mode: There are four operation mode of this Outdoor CPE, and there are expla- nation for each operation mode for better application. -
Page 12: Gateway Mode
3.2.1 Gateway Mode Click Gateway mode, will pop up following pictures: Please choose the right WAN setting mode, then click next to continue image11 image12 When click Next, then will complete the Gateway mode setting and show following picture:... - Page 13 image13 When return to Status, the page showed as follow: image14...
-
Page 14: Wifi Repeater Mode
3.2.2 WiFi Repeater mode Click WiFi Repeater operation mode in Wizard, then following page will pop up, and choose the right SSID to bridge, then next. image15 After click Next button, then should configure the wireless setting as fol- low, then click Next to finish: data in this page if required image16... -
Page 15: Wisp Operation Mode
Please note: when click wireless relay setting, following page will pop up, you can make change from here easy 3.2.3 WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the steps showed in image17 image17 Configure the right WAN setting in WISP operation mode, then next... - Page 16 Then complete and back to status, will show the connection fail or suc- cess, then can configure the data based on request: image19 Remark: When click WAN Setting, will pop up following picture: image20 3.2.4 AP mode Set the wireless data, AP Location info as required, then click next to con- tinue and enter into LAN setting.
- Page 17 image21 image22 image23...
-
Page 18: Advanced Setting
Advanced Setting In advanced setting, user can check the Outdoor CPE’s firmware version, working status, Wireless Status, LAN Status, Upgrade firmware, Reset. Let’s Click Advanced Setting in status page, will show return home, Setup Wizard which we showed before. Let’s shown mode in Device Status, Wi- reless, Network and Management. -
Page 19: Wireless Setting
image26 3.3.2 Wireless Setting In this part, will show the Wireless Basic Setting, Virtual AP, Access con- trol and Advanced Setting: image27... -
Page 20: Wireless Analizer
3.3.3 Wireless Analizer In this part, will show the Wireless Basic Setting, Virtual AP, Access con- trol and and avoid the wifi interface: image28 3.3.4 Virtual AP There are 3 virtual AP, if need virtual SSID, then users can configure it showed in following picture: image29... -
Page 21: Advanced Settings
3.3.5 Access Control Mainly show MAC allow or deny image30 3.3.6 Advanced Settings In this page, will show the regional, RF Power, Max user access. image31... -
Page 22: Network Settings
3.3.7 Network Settings In this page, mainly to show the LAN setting and VLAN as follow: image32 image33 3.3.8 Management In this part, show the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware and system page to users:... - Page 23 image34 image35 image36...
-
Page 24: Share Internet And Obtain Ip Address Automatically
CHAPTER 4 SHARE INTERNET AND OBTAIN IP ADDRESS AUTOMATICALLY Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet. -
Page 25: Trouble Shooting
CHAPTER 5 TROUBLE SHOOTING The Failure phenomenon and solution Failure Solution phenomenon Please make sure the PoE module connection is right. SYS Indicator off PoE Port connect with AP, LAN port connect with computer Please check the IP address of computer and Wireless AP to see whether they are in same networking segment, The method is click “start”-“Run”... - Page 26 The connection of Pls Check the computer’s IP address and DNS setting. Outdoor CPE and AP If it is dynamin, set the network card as automatically is success, but the obtain. If it is static IP, pls contact with ISP for correct IP computer can’t share address and DNS address.
-
Page 27: Declaration Of Conformity
CHAPTER 6 DECLARATION OF CONFORMITY RoHS It is stated that the construction materials used in our products comply with the requirements of Directive 2011/65 / EU (RoHS). Declaration of Conformity Compliance with European Directives The product complies with the requirements of the Low Voltage Directive (Safety) 2014/35 / EU and subsequent amendments. - Page 28 in particular installation types. In the event of interference with the recep- tion of the radio or television signal, which can be detected by switching the device off and on again, you are invited to complete one or more of the following procedures: •...
- Page 30 Mach Power ® is a registered trademark All Rights Reserved > www.machpower.it visit our website...
