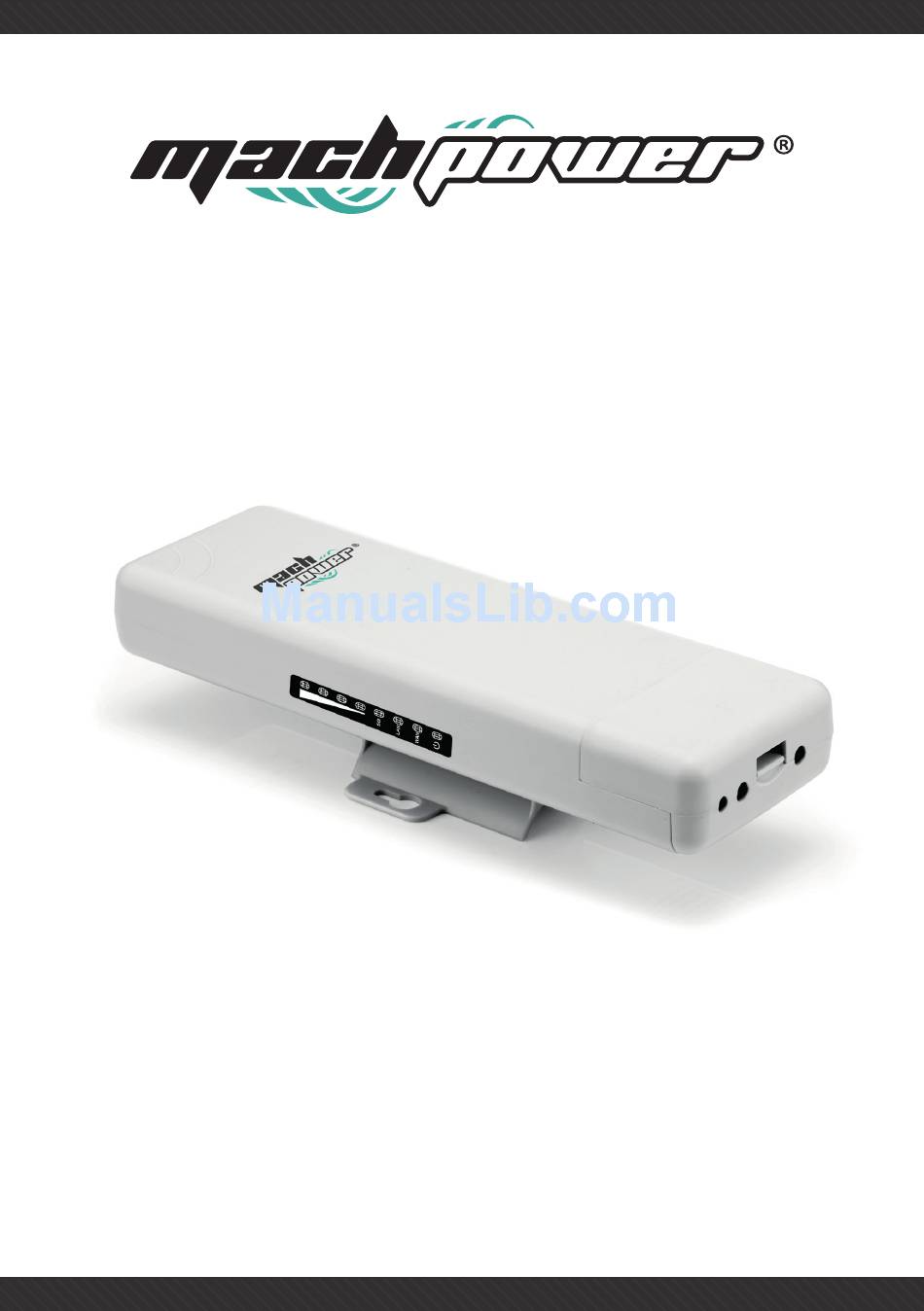

  • Page 1 WIRELESS CPE/AP 5G OUTDOOR 300MBPS WL-CPE5G48-058 USER MANUAL...
  • Page 2 REV.1216...

  • Page 3: Table Of Contents

    Thanks for choosed our product ________________________________ INDEX CHAPTER 1 Connection and Power Supply 1.1 Port Connection and power supply CHAPTER 2 Login CHAPTER 3 Quickly Configure CPE 3.1 Gateway Mode 3.2 WiFi Repeater and Station operation configuration 3.3 AP Mode 3.4 WISP 3.5 Advanced Settings 3.5.1 System Status...

  • Page 4: Connection And Power Supply

    CHAPTER 1 CONNECTION AND POWER SUPPLY Port Connection and power supply Instruction of different port • Please use a power supply of 12V DC adapter or 24V POE adapter, WAN / LAN port is the PoE Port. • The connection diagram of CPE and PoE adapter and PC PoE Adapter LAN PORT Pls make sure the CPE’s power supply is normal in reset process, or the...

  • Page 5: Login

    2. Press the Reset Button on CPE more than 15 seconds, then release, the device will reboot and restore to factory settings CHAPTER 2 LOGIN 1. Connect the CPE with computer 2. Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow netx image to finish.
  • Page 6 4. After login, then Device Status will be showed There are four operation mode showed on this page: Gateway mode, Repeater Mode, AP Mode and WISP Mode...

  • Page 7: Quickly Configure Cpe

    CHAPTER 3 QUICKLY CONFIGURE CPE Gateway Mode Click “Gateway Mode” under following picture and choose the right WAN access type, then input the right SSID, Channel, key as like. WiFi Repeater and Station operation configuration A. Login the Web management page, click “ Repeater Mode”, then “Scran AP”...
  • Page 8 B. Select the AP’s SSID want to bridge, take SR800-5.8G for example. If your computer can’t pop up this window, pls check your IE explorer and see whether it is blocked already. And if this CPE can’t scan any SSID, pls check if there are 5G wireless signal. C.
  • Page 9 nual to change under Advanced Settings, So, click sure in this part to finish the repeater operation mode setting. E. After this step, can click the Device status to check the status of this CPE. And it will show CPE’s LAN Interface, WLAN status and Sigbal Strength.
  • Page 10 G. Click “5.8GHz Virtual AP”, will shwo SSID shut off, if need SSID bro- adcast, pls follow steps of 1,2,3,4,5,6 showed in following picture. This CPE will work under wireless repeater and broadcast SSID after apply changes. AP Mode Plug and Play to transmit wireless signal for wireless end users form wired networking.

  • Page 11: Wisp

    WISP In this operation mode, user should confirm the WAN access type at first, then set the SSID, key, Channel as request Advanced Settings 3.5.1 System Status Click “ Advance Settings”, will show system status, such as firmware...
  • Page 12 version, build time, System uptime Click 5.8GHz Wireless Status, will show CPE’s WLAN Status, Signal Strength, SSID If want to check LAN status, pls check following picture...
  • Page 13 3.5.2 Operation Mode Set operation mode manually, choose the right operation mode, then apply changes. The function of this part will be same as Quick Setup step 3.5.3 5.8GHz Repeater In this part, use can scan AP’s SSID, disable or enable CPE’s SSID, mo- dify Channel, Country code, Key.

  • Page 14: Network Setting

    3.5.4 Network Setting LAN Interface Setup mainly showed as follow: 3.5.5 Management In this part, user can set Time zone, show Log info, upgrade firmware, change login user name and password; 3.5.6 Upgrade Firmware Pls click Upgrade Firmware, then browse and choose the firmware should upgrade, then click upgrade to upgrade the firmware.

  • Page 15: Share Internet And Obtain Ip Address Automatically

    After finish firmware upgrade, pls click Save/Reload Settings, then reset settings to default. After that, the firmware upgrade is finished. 3.5.7 Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet.

  • Page 16: Trouble Shooting

    CHAPTER 4 TROUBLE SHOOTING The Failure phenomenon and solution Failure phenomenon Solution SYS Indicator off Pls make sure the PoE module connection is right. POE Port connect with CPE, LAN port connect with computer Can’t land to CPE through Web page Pls check the IP address of computer and CPE to see whether they are in same networking segment, The method is click “start”-“Run”...
  • Page 17 The connection of CPE and AP is success, but Pls Check the computer’s IP address and DNS the computer can’t share internet setting. If it is dynamin, set the network card as automatically obtain. If it is static IP, pls contact with ISP for correct IP address and DNS address.
  • Page 20 Mach Power ® is a registered trademark All Rights Reserved > www.machpower.it visit our website...
