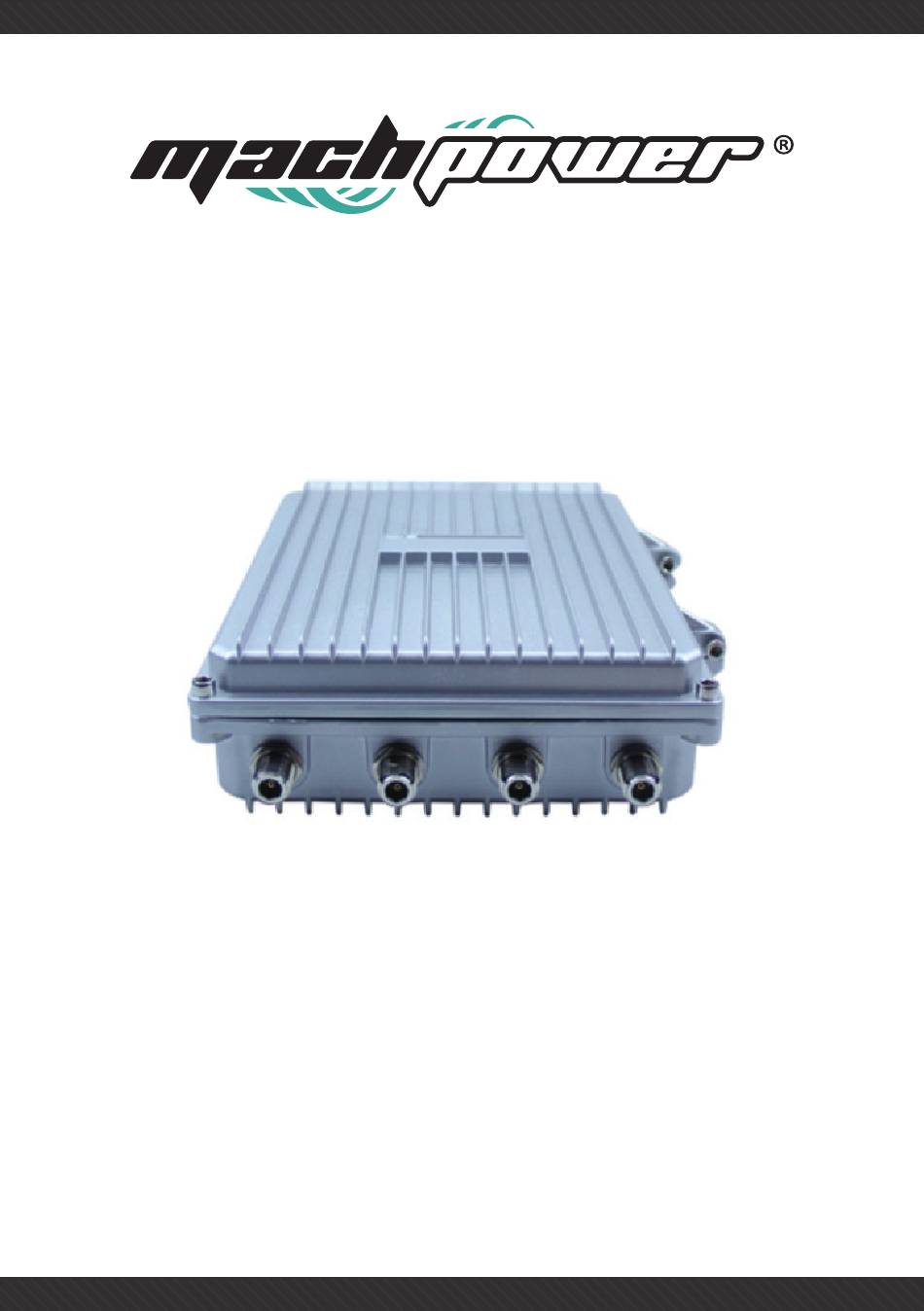

- Page 1 WIRELESS AP DUAL BAND1200MBPS WL-APODB48-056 USER MANUA...
- Page 2 REV.1216...
-
Page 3: Table Of Contents
Thanks for choose our product ___________________________________________________________________ INDEX CHAPTER 1 Hardware and Operation mode Instruction 1.1 LED indicator 1.2 AP Interface 1.3 Power Supply 1.3.1 Powered by PoE Switch 1.3.2 Connect Outdoor CPE with PCby wireless CHAPTER 2 Login CHAPTER 3 WEB GUI interface Setting 3.1 Status 3.2 Wizard Configuration... -
Page 4: Ap Interface
CHAPTER 1 HARDWARE INSTRUCTION AP Setup AP Interface RST: Reset Button, it make AP revert to default data after press it 15 seconds. WAN/PoE: Gigabit WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Outdoor Access Point and WiFi Repeater operation mode. -
Page 5: Login
3. Input 192.168.188.253 into IE browser, then pop up the login page, the default login user name: Admin, Passwords: admin, pls do following next image: CHAPTER 3 WEB GUI INTERFACE SETTING Status After login, then Device Status will be showed: In this ceiling Outdoor CPE, the default operation mode is AP mode. - Page 6 5.8G Wireless Setting GUI configuration setting showed as previus image: LAN Setting to configure the DHCP or Fix IP...
-
Page 7: Status
AP location setting: can mark where the AP set up, and AP name as next image Wizard Configuration Click Wizard in Status page, will pop up following page to configure the operation mode: There are four operation mode of this ceiling Outdoor CPE, and there are explanation for each operation mode for better application 3.2.1 Gateway Mode Click Gateway mode, will pop up following pictures:... -
Page 8: Wifi Repeater Mode
When click Next, then will complete the Gateway mode setting and show following picture: When return to Status, the page showed as follow: 3.2.2 WiFi Repeater mode Click WiFi Repeater operation mode in Wizard, then following page will pop up, and choose the right SSID to bridge, then next. - Page 9 After click Next button, then should configure the wireless settig as follow, then click Next to finish: Click Return button, will back to Status, show Repeater mode data, show fail or success, and user can configure this data in this page if required. Please note, when click wireless relay setting, following page will pop up, you can make change from here easy...
-
Page 10: Wisp Operation Mode
3.2.3 WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the stepes showed in picture Configure the right WAN setting in WISP operation mode, then next. Configure wireless data showed as follow:... -
Page 11: Ap Operation Mode
Then complete and back to status, will show the connection fail or success, then can configure the data based on request: Remark: When click WAN Setting, will pop up following picture: 3.2.4 AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting. After LAN setting, complete the AP mode configuration and back to Status:... -
Page 12: Advanced Setting
Advanced Setting In advanced setting, user can check the Outdoor CPE’s firmware version, working status, 2.4G wireless, 5.8G Wireless, LAN Status, upgrade firmware, Reset... Let’s Click Advanced Setting in status page, will show return home, Setup Wizard which we showed before. Let’s shown mode in Device Status, 2.4G Wireless, 5.8G Wireless, Network and Management. - Page 13 3.3.1 Device Status In this page, mainly to check the Outdoor CPE’s status in firmware version, 2,4G Wireless, 5.8G Wireless and LAN status: 3.3.2 2.4G Wireless Setting In this part, will show the 2.4G Basic Setting, Virtual AP, Access control and Advanced Setting:...
-
Page 14: Virtural Ap
3.3.3 2G Wireless Analyzer Mainly to analyze the AP’s singal strength in some channel, to make user more easy to choose the right channel and avoid the wifi interface. 3.3.4 Virtural AP There are 3 virtural AP in 2.4G wireless, if need virtural SSID, then users can configure it showed in following picture:... -
Page 15: Network Setting
3.3.5 2.4G Access Control Mainly show MAC allow or deny 3.3.6 2.4G Advanced Settings In this page, will show the regional, RF Power, Max user access. 3.3.7 5.8G Wireless Setting Almost same as 2.4G Wireless 3.3.8 Network setting In this page, mainly to show the LAN setting and VLAN as follow:... -
Page 16: Management
3.3.9 Management In this part, show the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware and system page to users:... -
Page 17: Share Internet & Obtain Ip Address Automatically
CHAPTER 4 SHARE INTERNET & OBTAIN IP ADDRESS AUTOMATICALLY Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet. -
Page 18: Trouble Shooting
CHAPTER 5 TROUBLE SHOOTING The Failure phenomenon and solution Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port connect with AP, LAN SYS Indicator off port connect with computer Pls check the IP address of computer and Outdoor CPE to see whether they are in same networking segment, The method is click “start”-“Run”... -
Page 19: Smb Products
PER WIRELESS AP ACCESS POINT DUAL BAND SUPPORTA E GESTISCE 5GHz / 2.4GHz FINO A 200 AP 1200Mbps WL-ICDBG24-051 WL-APODB48-056 IN CEILING DUAL BAND OUTDOOR WIRELESS POE48V ACCESS POINT ACCESS POINT DUAL BAND 5GHz / 2.4GHz 5GHz / 2.4GHz 750Mbps... - Page 20 Mach Power ® is a registered trademark All Rights Reserved > visit our website www.machpower.it...
