THSCM101 Start Guide
Rev. 1.20

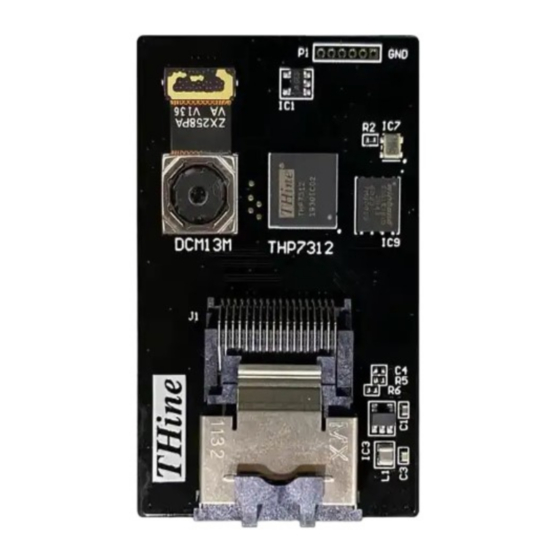

THSCM101
Start Guide
Rev. 1.20
www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THSCM101 and is the answer not in the manual?

Questions and answers

Related Manuals for THine THSCM101

Summary of Contents for THine THSCM101

  • Page 1 THSCM101 Start Guide Rev. 1.20 THSCM101 Start Guide Rev. 1.20 www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 2: Table Of Contents

    2.2 i.MX 8M EVK SD card preparation 2.3 i.MX 8M EVK hardware setup 2.4 Login to Linux on i.MX 8M EVK 2.5 THSCM101 firmware update (optional) 2.6 Stream camera images with i.MX 8M EVK www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 3: What You Need For I.mx 8M Mini Evk

    • CPU board • Power supply • USB micro-B cable • Micro SD card • 32GByte • i.MX 8M mini Linux SD card image for THSCM101 • Request the latest SD card image to THine Solutions. https://www.thinesolutions.com/support-request • THSCM101 • Camera board •...

  • Page 4: I.mx 8M Mini Evk Sd Card Preparation

    Step 3 : Write • Write the SD card image file, .sdcard to the micro SD card by using disk image writer application software such like “Win32 Disk Imager”. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 5 THSCM101 Start Guide Rev. 1.20 1.3 i.MX mini EVK hardware setup (1/2) ① Connect THSCM101 to i.MX 8M mini EVK via Mini SAS cable ② Insert the micro SD card ③ Set BOOT switches (SW1101 and SW1102). See next page.
  • Page 6 Hardware setting is completed. THSCM101 HDMI Display Mini SAS cable Mini SAS cable HDMI cable I.MX 8M mini EVK Windows 10 PC USB2 cable MIPI DSI to HDMI adaptor card www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 7: Login To Linux On I.mx 8M Mini Evk

    • You may need to install VCP driver. http://www.ftdichip.com/Drivers/VCP.htm • Select "Serial" and “COM<n>: USB Serial Step 3: Port (COM<n>)”. <n> is the bigger number port of “USB Serial Port”. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 8 Step 4: Setup → Serial Port... to open port setup window, then select the Speed as 115200. Then click "New setting". Step 5: Press enter key, then Tera Term displays following message. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 9 THSCM101 Start Guide Rev. 1.20 1.4 Login to Linux on i.MX 8M mini EVK (3/3) Step 6: Login as "root“ • Enter “root”, then press enter key. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 10: Thscm101 Firmware Update (Optional)

    • v4l2-ctl --get-ctrl=thp7312_firmware_version thp7312_firmware_version: 'THSCM101:THP7312 firmware version = xx.xx(*)‘ (*) xx.xx is the firmware version Update THSCM101 firmware if the version is not the latest. THSCM101 firmware version is expressed as the numbers(xx.xx) follows after "THSCM101-v" in the file name.
  • Page 11 Step 6: Shutdown and power off i.MX 8M mini EVK Step 7: Disconnect P1(#3) from P1(#1) : GND of THSCM101 Step 8: Power on i.MX 8M mini EVK and login as root. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 12: Stream Camera Images With I.mx 8M Mini Evk

    Step 1: Enter the following command to stream 4K 30fps image. gst-launch-1.0 v4l2src device=/dev/video0 ! video/x- raw,format=YUY2,width=3840,height=2160,framerate=30/1 ! queue max-size-time=0 ! waylandsink enable-tile=true sync=false You can see the streaming images on the display. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 13: What You Need For I.mx 8M Evk

    2.1 What you need for i.MX 8M EVK • i.MX 8M EVK • MCIMX8M-EVKB • CPU board • Please contact to THine Solutions if the EVK is EVK Revision B3 Board or older revision. • Power supply • USB micro-B cable •...

  • Page 14: I.mx 8M Evk Sd Card Preparation

    Step 3 : Write • Write the SD card image file, .sdcard to the micro SD card by using disk image writer application software such like “Win32 Disk Imager”. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 15: I.mx 8M Evk Hardware Setup

    ④ Connect AC adaptor to the power ⑤ Connect the PC to i.MX 8M EVK via USB2 cable ⑥ Connect the monitor to HDMI port of i.MX 8M EVK www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 16 (from 1-4 bit) Hardware setting is completed. THSCM101 HDMI Display Mini SAS cable USB2 cable HDMI cable Windows 10 PC micro SD card AC adaptor cable I.MX 8M EVK www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 17: Login To Linux On I.mx 8M Evk

    Step 2: Launch “Tera term” on your Windows PC • You may need to install VCP driver. http://www.ftdichip.com/Drivers/VCP.htm • Select "Serial" and COM<n>:Silicon Step 3: Labs Dual CP2105 USB to UART Bridge: Enhanced COM Port (COM<n>) www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 18 Step 4: Setup → Serial Port... to open port setup window, then select the Speed as 115200. Then click "New setting". Step 5: Press enter key, then Tera Term displays following message. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
  • Page 19 THSCM101 Start Guide Rev. 1.20 2.4 Login to Linux on i.MX 8M EVK (3/3) Step 6: Login as "root“ • Enter “root”, then press enter key. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 20: Thscm101 Firmware Update (Optional)

    • v4l2-ctl --get-ctrl=thp7312_firmware_version thp7312_firmware_version: 'THSCM101:THP7312 firmware version = xx.xx(*)‘ (*) xx.xx is the firmware version Update THSCM101 firmware if the version is not the latest. THSCM101 firmware version is expressed as the numbers(xx.xx) follows after "THSCM101-v" in the file name.
  • Page 21 Step 6: Shutdown and power off i.MX 8M EVK Step 7: Disconnect P1(#3) from P1(#1) : GND of THSCM101 Step 8: Power on i.MX 8M EVK and login as root. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...

  • Page 22: Stream Camera Images With I.mx 8M Evk

    Step 1: Enter the following command to stream the 3Mpixel 30fps image. gst-launch-1.0 v4l2src device=/dev/video0 ! video/x- raw,format=YUY2,width=2048,height=1536,framerate=30/1 ! queue max-size-time=0 ! waylandsink enable-tile=true sync=false You can see the streaming images on the display. www.thinesolutions.com | © THine Solutions, Inc. All rights reserved | inquiries@thinesolutions.com...
