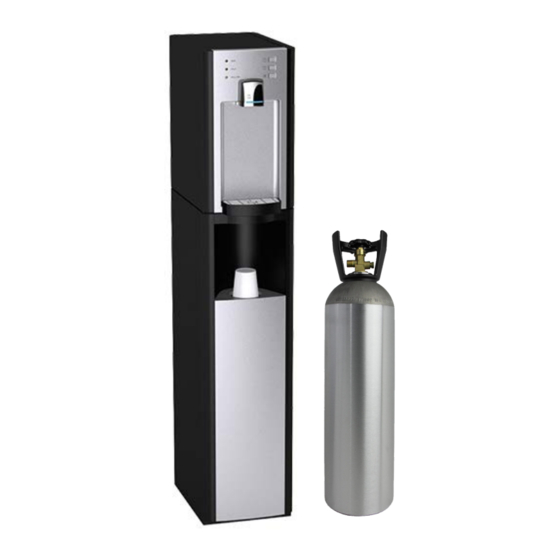

Sparkling Plumbed In
Sparkling, Boil, Chill Benchtop Unit
(Freestanding Cabinet Optional)
INSTALLATION AND OPERATION GUIDE
Please read these instructions completely before operating this unit
+ 6 4 0 9 6 3 6 - 7 0 7 0 | W W W . S P R I N G N Z . C O . N Z | S A L E S @ S P R I N G N Z . C O . N Z
CONTENTS
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NeoTap and is the answer not in the manual?

Questions and answers

Related Manuals for Spring NeoTap

Summary of Contents for Spring NeoTap

  • Page 1: Table Of Contents

    Sparkling Plumbed In Sparkling, Boil, Chill Benchtop Unit (Freestanding Cabinet Optional) INSTALLATION AND OPERATION GUIDE CONTENTS Preface/Parts Piping Installation - Diagram Piping Installation Push Lock Fitting and Plumbers Delight - Installation Co2 Bottle Installation HOT, SPARKLING, COLD - Water Operation Trouble Shooting Leakage Detection Diagram and Swivel Tap - Warning Specification Sheet...

  • Page 2: Preface/Parts

    Before using this machine, we advise you to read this manual thoroughly. Please follow the instructions to ensure proper operation and the lasting of the machine Brass Tee-Off Valve Co2 Bottle Neotap - Freestanding Regulator (Plumbers Delight) KDF30 1/4" Pipe Power Cord Pressure Reducing Valve + 6 4 0 9 6 3 6 - 7 0 7 0 | W W W .

  • Page 3: Piping Installation - Diagram

    PIPING INSTALLATION - DIAGRAM 2. Using the 1/4" Pipe provided connect the 1/4" Inlet ball valve to the Pressure Reducing Valve. The PRV is then connected to the KDF30 Filter and finally into the Water inlet. Please ensure the filter has been flushed before cnnecting. The PRV and Filter have a directional water flow, please connect as marked.

  • Page 4: Piping Installation

    We recommend the instructions specified in this guide be followed in sequence by a qualified tradesperson for successful installation. This Neotap has a 12 month warranty from purchase, but this may be voided if unsatisfactory installation results in damage to the unit.

  • Page 5: Push Lock Fitting And Plumbers Delight - Installation

    PUSH LOCK FITTING - INSTRUCTIONS 1. Cut the 1/4" Pipe square and push into the fitting. You must remove burrs and chamfer tube end for metal pipes to prevent the 0-ring seal being damaged. 2. The Push lock fitting will grip before it seals. Ensure the pipe is pushed into the fitting completely 3.

  • Page 6: Co2 Bottle Installation

    Co2 BOTTLE - INSTALLATION 1. Ensure the Co2 bottle is connected firmly to the regulator and the Co2 tube is fitted correctly. 2. Slowly turn the dial on the regulator clockwise until the gauge reads 3BAR (Note: If you want to reduce the pressure you must first turn the dial anticlockwise and then vent to relieve existing pressure.

  • Page 7: Hot, Sparkling, Cold - Water Operation

    Water Operation Method HOT OPERATION 1. Turn on the Power supply 2. Push the HOT button on the machine and make sure the water flows before you turn on the HOT switch at the back of the unit (This will ensure the HOT tank is full to prevent burning out the element 3.

  • Page 8: Trouble Shooting

    Trouble Shooting + 6 4 0 9 6 3 6 - 7 0 7 0 | W W W . S P R I N G N Z . C O . N Z | S A L E S @ S P R I N G N Z . C O . N Z...

  • Page 9: Leakage Detection Diagram And Swivel Tap - Warning

    LEAKAGE DETECTION - DIAGRAM This device has a leakage detection probe fitted for safety purposes. When the probe detects moisture you may notice the LED on the machine flashing accompianied by a beeping noise We recommend turning off the electricity at the power supply and calling a qualified technician to carry out this work for your safety.

  • Page 10: Specification Sheet

    PRODUCT DATA SHEET Spring NeoTap INSTANT TAP Overview Underbench filter with integrated unit for boiling, chilled, sparkling and ambient drinking water. Model Sparkling, Boiling & Chilled, Boiling, Chilled & Ambient, Sparkling, Chilled & Ambient Filtration Premium KDF/GAC 30, 1 Micron Filtration...
