Summary of Contents for Bee-Ball Pro Bound

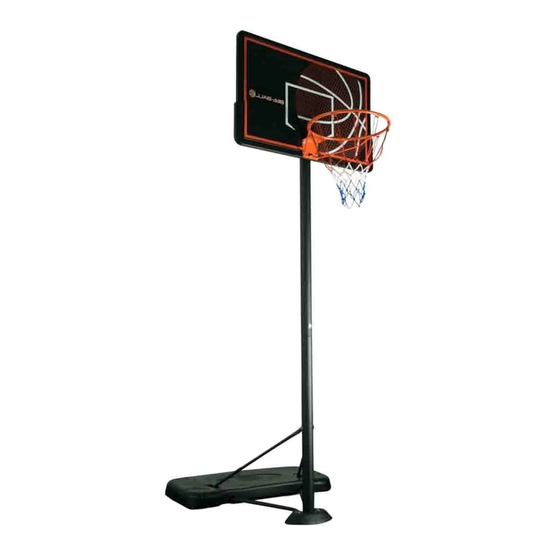

- Page 1 Bee Ball Pro-Bound Bee Ball Pro-Bound Instruction Manual Instruction Manual...
- Page 2 Before Installation Check all parts are present! Our factory takes every effort to make sure everything is packed in its proper place. But just in case a small part has gone astray please make sure you check every piece is present before you begin installing - right down to the nuts and bolts. Assemble with Care Installation should be completed by two adults.
- Page 3 Tools Required Benötigtes Material / Accessoires / Herramientas Strumenti da lavoro / Benodigdheden Identifying Two pairs of Bolts hands Spanner and Socket Set Parts Included Unterteile / Liste des pièces / Lista de partes Elenco degli elementi / Onderdelen Bolt, Nut & Washer A Bolt &...
- Page 4 A note on the bolts A note on the bolts Our nuts feature a blue seal for a tight and secure fit (please see pictures). Secure the bolt head in place using a spanner or socket set. Then tighten the nut using a second spanner or socket set. When you turn the nut it will force the blue seal to conform to the shape of the threads on the bolt.
- Page 5 Attach Top Pole to Backboard Struts You will need: Secure the Backboard struts (part 4) into the top pole (part 6) Parts as assembled in Step 1 with the use of 1 Bolt C. It may help to loosen Bolt B already in 1 x Bolt, Nuts &...
- Page 6 Attach the Base Struts to the Lower Pole You will need: Parts as assembled in Step 4 Bottom Pole (Part 8) Base Tee (Part 12) Plastic Bolt Cap 1 x Bolt, Nut & Washers C (M8 x 90mm) 2 x Bolts, Nut & Washers E (M8 x 20mm) 1 x Bolt, Nut &...
- Page 7 Warning! Failure to comply with these warnings can lead to injury and/or damage of the basketball equipment. • Do not allow children to hang from the hoop/rim, climb on the basketball base or up the pole • Do not perform ‘dunk’ moves on this basketball stand as it is not designed for this purpose. During play ensure face does not come close to the backboard, rim or net as this could result in injury.
- Page 8 Not just Basketball & Netball... Not just Basketball & Netball... You may or may not be aware that Bee-Ball is exclusive to the retailer Big Game Hunters who not only have a huge range of high quality basketball and netball equipment but are also owners of the UK’s leading sports ball retailer.
