Summary of Contents for Bee-Ball Champion
- Page 1 Bee Ball Champion Instruction Manual...
- Page 2 Tools Required Benötigtes Material / Accessoires / Herramientas Strumenti da lavoro / Benodigdheden Identifying Bolts Two pairs of hands Spanner or Socket Set Parts Included Unterteile / Liste des pièces / Lista de partes Elenco degli elementi / Onderdelen Bolt, Nut & Bolt D (x1) Bolt, Nut &...
- Page 3 Before Installation Check all parts are present! Our factory takes every effort to make sure everything is packed in its proper place. But just in case a small part has gone astray please make sure you check every piece is present before you begin installing - right down to the nuts and bolts. Assemble with Care Installation should be completed by two adults.

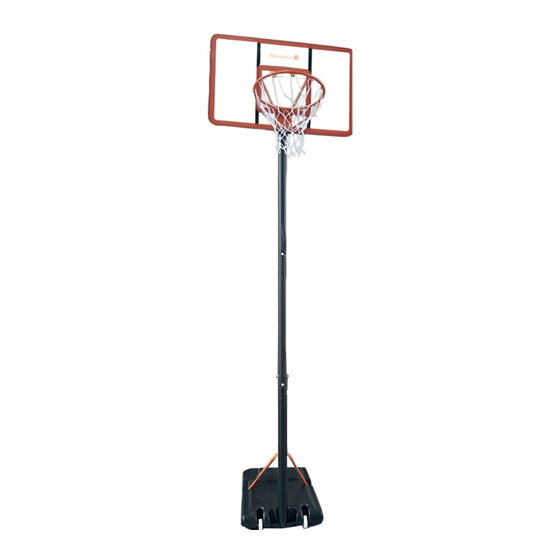

- Page 4 Assembling Your Stand Attach Ring and Rear Bracket to Backboard You will need: Hoop/Ring (part 2) Backboard (part 1) Backboard Bracket (part 4) - ensure you have bent the top struts outwards ready for the first step 4 x Bolts, Nut & Washers A (M8 x 50mm) 2 x Bolts &...
- Page 5 Join the Top Pole and Middle Pole You will need: Parts as assembled in Step 1 & 2 Middle Pole (part 7) 1 x Bolt D (plastic handle) 1 x Bolt, Nut & Washers E (M10 x 90mm) Fix the Middle Pole (part 7) to the Top Pole (which is al- ready attached to the assembled backboard and ring).
- Page 6 Attach the Base Struts You will need: Parts as assembled in Step 4 (base with wheels and bottom pole) 2 x Base Struts (parts 12) 1 x Bolt, Nut & Washers F (M10 x 100mm) - and plastic bolt cap. 2 x Bolts, Nut &...
- Page 7 Warning! Failure to comply with these warnings can lead to injury and/or damage of the basketball equipment. • Do not allow children to hang from the hoop/rim, climb on the basketball base or up the pole • Do not perform ‘dunk’ moves on this basketball stand as it is not designed for this purpose. During play ensure face does not come close to the backboard, rim or net as this could result in injury.
- Page 8 Not just Basketball... You may or may not be aware that Bee-Ball is exclusive to the retailer Big Game Hunters who not only have a huge range of high quality basketball equipment but are also owners of the UK’s leading sports ball retailer.
