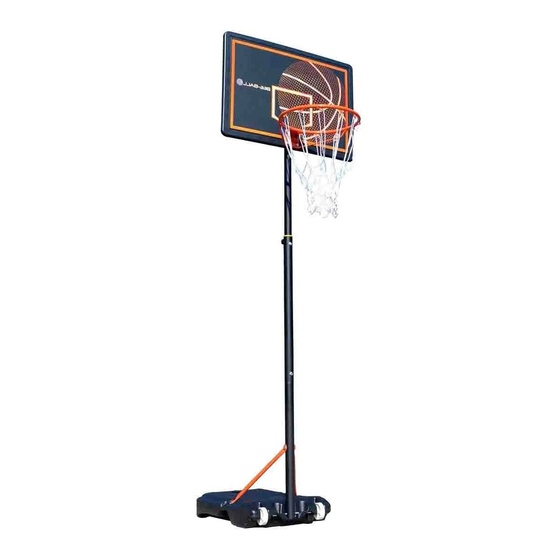

- Page 1 Bee Ball BB-05 Basketball Stand Bee Ball BB-05 Basketball Stand Instruction Manual Instruction Manual...
-
Page 2: Tools Required
Tools Required Benötigtes Material / Accessoires / Herramientas Strumenti da lavoro / Benodigdheden Identifying Parts Included Bolts Unterteile / Liste des pièces / Lista de partes One pair of Spanner & hands Elenco degli elementi / Onderdelen Socket Set Bolt, Nut & Bolt, Nut &... - Page 3 A Note on Bolts Our nuts feature a blue seal for a tight and secure fit (please see below). Secure the bolt head in place using a spanner or socket set. Then tighten the nut using a second spanner or socket set. When you turn the nut it will force the blue seal to conform to the shape of the threads on the bolt.
-
Page 4: Before Installation
Before Installation Check all parts are present! Our factory takes every effort to make sure everything is packed in its proper place. But just in case a small part has gone astray please make sure you check every piece is present before you begin installing - right down to the nuts and bolts. Assemble with Care Installation should be completed by an adult. - Page 5 Assembling Your Stand Assembling Your Stand Attach Ring to Backboard & Top Pole You will need: Backboard (part 1) Ring (part 2) Top Pole (part 5) 4 x Bolts, Nuts & Washers A (M8 x 35mm) Fix the Ring (part 2) to the Backboard (part 1) and the square metal plate at the top of the Top Pole (part 5) simultaneously using four Bolts, Nuts &...
- Page 6 Attach the Base Struts You will need: Parts as assembled in Step 2 (base attached to bottom pole) 2 x Base Struts (part 3) 2 x Bolts, Nuts & Washers B (M8 x 20mm) 1 x Bolt, Nut & Washers C (M8 x 65mm) - and plastic bolt cap Attach one end of each of the Base Struts (part 3) to the base itself using Bolts B (one for each side).
- Page 7 Join Top and Middle Poles You will need: Pre-assembled parts from Step 1 (ring + backboard + top pole) Pre-assembled parts from Steps 2 - 4 (assembled base + bottom pole + middle pole) 1 x Bolt, Nut & Washers D (M8 x 60mm) 1 x Plastic Handle (Bolt E) Be careful as your base is not yet weighed down.
- Page 8 Warning! Failure to comply with these warnings can lead to injury and/or damage of the basketball equipment. • Do not allow children to hang from the hoop/rim, climb on the base or up the pole • Do not perform ‘dunk’ moves on this basketball post as it is not designed for this purpose. During play ensure face does not come close to the ring or net as this could result in injury.
-
Page 9: Inspection And Maintenance
Inspection & Maintenance We recommend the following inspection and maintenance. Looking After Your Basketball Stand Your basketball stand - just like any other outdoor play equipment - is designed to be used outside but without proper care and maintenance will not last as long as you might want. Weekly to monthly / routine visual inspection Check all nuts and bolts - if any are loose, tighten them where necessary. - Page 10 Not just Basketball & Netball... Not just Basketball & Netball... You may or may not be aware that Bee-Ball is exclusive to the retailer Big Game Hunters who not only have a huge range of high quality basketball and netball equipment but are also owners of the UK’s leading sports ball retailer.
