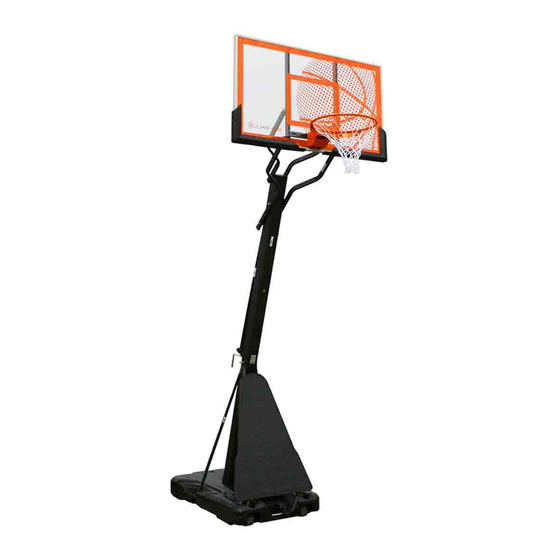

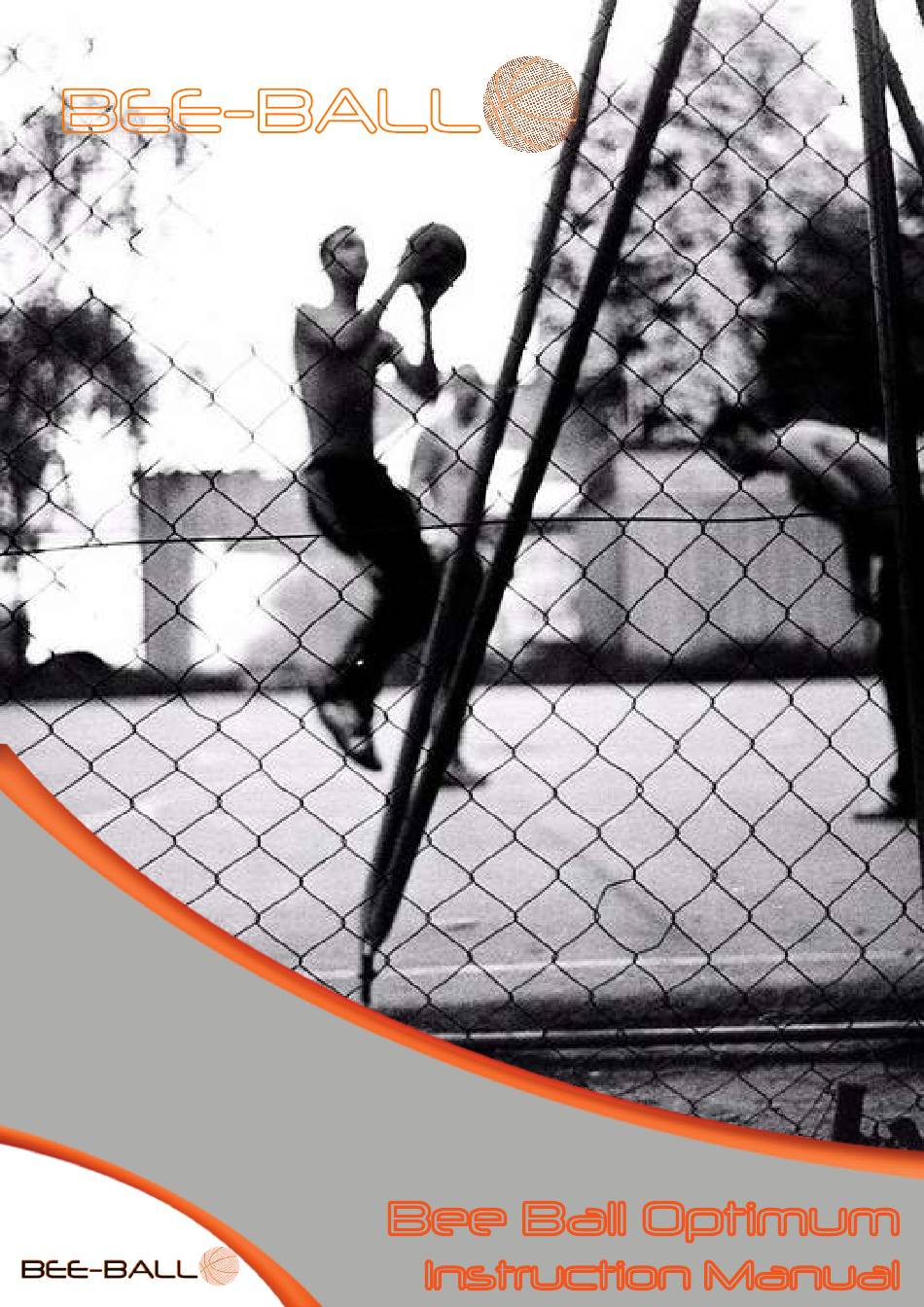

- Page 1 Bee Ball Optimum Instruction Manual...
-
Page 2: Tools Required
Bolt, Nut & Bolt & Washer Washer I (x4) J (x1) M8 / 25mm M8 / 30mm Part 2 Part 3 BEE-BALL Hoop/Ring Part 1 Backboard Bracket Q & Handle R Plates L1 & L2 Part 6 (W) Top Pole... -
Page 3: Before Installation
Before Installation Check all parts are present! Our factory takes every effort to make sure everything is packed in its proper place. But just in case a small part has gone astray please make sure you check every piece is present before you begin installing - right down to the nuts and bolts. Assemble with Care Installation should be completed by two adults. - Page 4 Assembling Your Stand Attach Ring to Backboard You will need: Hoop/Ring (part 2) Backboard (part 1) 4 x Bolts, Nut & Washers D (M10 x 40mm) First, remove the metal case from the back of the ring using a crosshead screwdriver. Fix the Hoop/Ring (part 2) to the front of the Backboard (part 1) using Bolts, Nuts &...
- Page 5 Join the Top Pole and Braces You will need: Parts as assembled in Step 1 & 2 Top Pole (part 6 - W) 2 x Bolts, Nuts & Washers B (M12 x 160mm) Making sure the Top Pole is the right way round (highest hole must be furthest from backboard), fix the ends of the Backboard Braces (parts 4 &...
- Page 6 Attach the Base & Bottom Pole Attach the Base Struts You will need: You will need: Bottom Pole (part 8 - Y) and Pre-assembled Backboard, Pre-assembled parts from Step 1 - 5 Top Pole and Middle Pole from Steps 1 - 4 1 x Bolt, Nut &...
-
Page 7: Inspection And Maintenance
Warning! Failure to comply with these warnings can lead to injury and/or damage of the basketball equipment. • Do not allow children to hang from the hoop/rim, climb on the basketball base or up the pole • Do not perform ‘dunk’ moves on this basketball stand as it is not designed for this purpose. During play ensure face does not come close to the backboard, rim or net as this could result in injury. - Page 8 Not just Basketball... You may or may not be aware that Bee-Ball is exclusive to the retailer Big Game Hunters who not only have a huge range of high quality basketball equipment but are also owners of the UK’s leading sports ball retailer.
