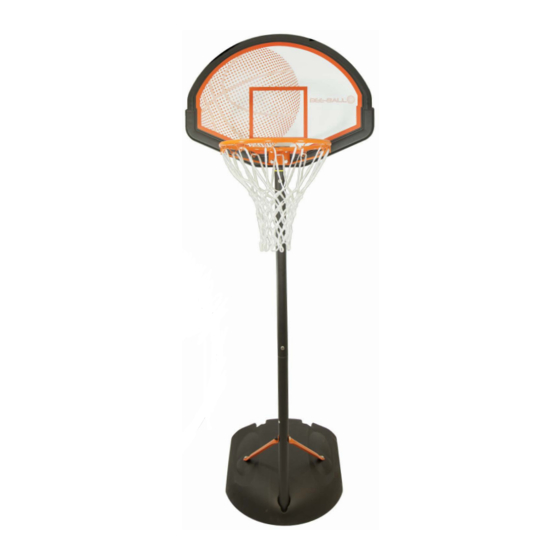

Bee Ball Junior Basketball Stand
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Junior Basketball Stand and is the answer not in the manual?

Questions and answers

Summary of Contents for Bee-Ball Junior Basketball Stand

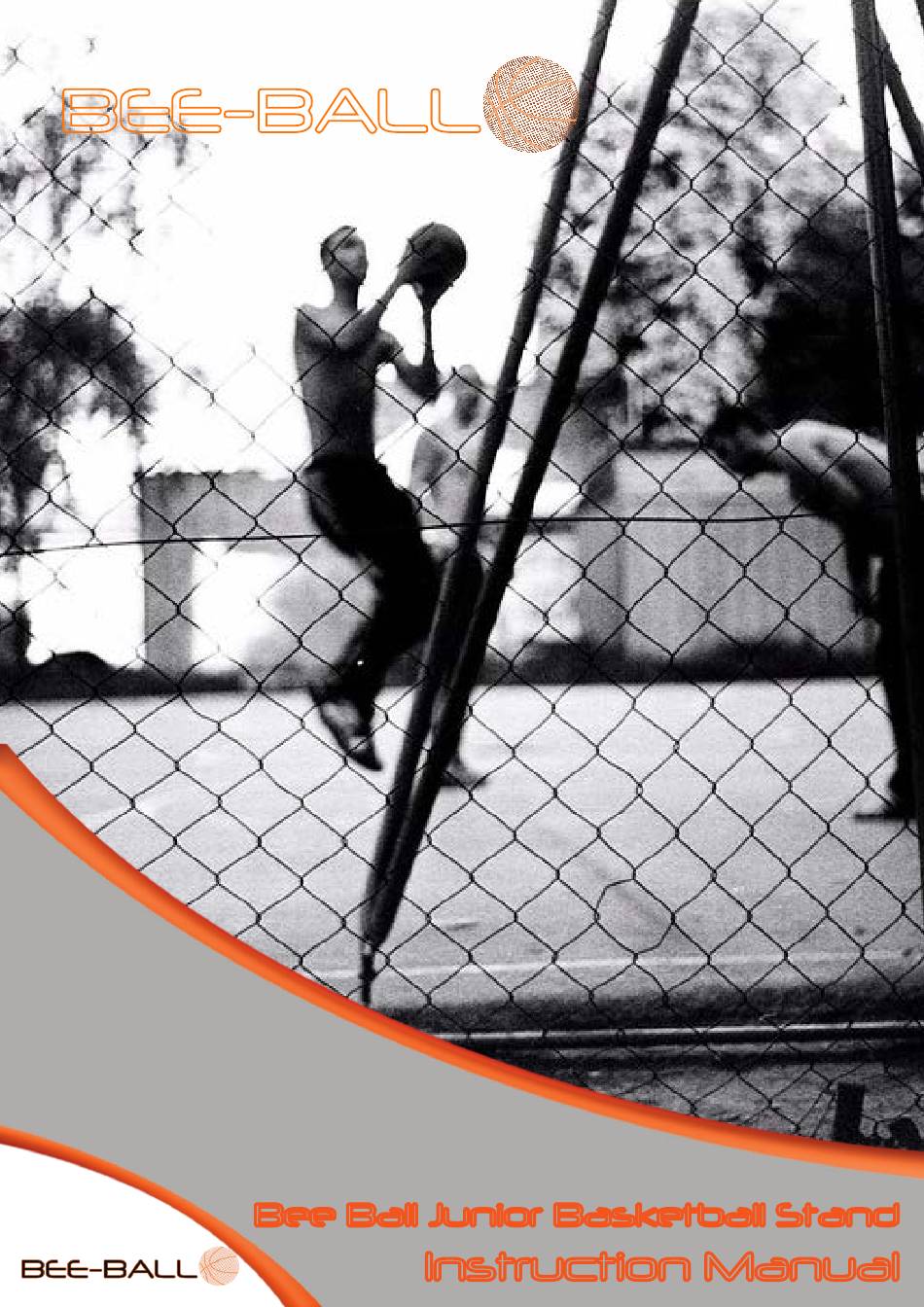

  • Page 1 Bee Ball Junior Basketball Stand Instruction Manual...
  • Page 2: Tools Required

    Tools Required Benötigtes Material / Accessoires / Herramientas Strumenti da lavoro / Benodigdheden Identifying Parts Included Bolts Unterteile / Liste des pièces / Lista de partes One pair of Spanner & hands Elenco degli elementi / Onderdelen Socket Set Bolt, Nut & Bolt, Nut &...
  • Page 3: Before Installation

    Before Installation Check all parts are present! Our factory takes every effort to make sure everything is packed in its proper place. But just in case a small part has gone astray please make sure you check every piece is present before you begin installing - right down to the nuts and bolts. Assemble with Care Installation should be completed by an adult.
  • Page 4 Assembling Your Stand Attach Ring to Backboard & Top Pole You will need: Backboard (part 1) Ring (part 2) Top Pole (part 5) 4 x Bolts, Nuts & Washers A (M8 x 35mm) Fix the Ring (part 2) to the Backboard (part 1) and the square metal plate at the top of the Top Pole (part 5) simultaneously using four Bolts, Nuts &...
  • Page 5 Attach the Base Struts You will need: Parts as assembled in Step (base attached to bottom pole) 2 x Base Struts (part 3) 2 x Bolts, Nuts & Washers B (M8 x 20mm) 1 x Bolt, Nut & Washers D (M8 x 65mm) - and plastic bolt cap. Attach one end of each of the Base Struts (part 3) to the base itself using Bolts B (one for each side).
  • Page 6 Join Top and Middle Poles You will need: Pre-assembled parts from Step 1 (ring + backboard + top pole) Pre-assembled parts from Steps 2 - 4 (assembled base + bottom pole + middle pole) 1 x Bolt, Nut & Washers E (M8 x 60mm) 1 x Plastic Handle (Bolt F) Now join the Top and Middle Pole inserting one Bolt, Nut &...
  • Page 7: Inspection And Maintenance

    Warning! Failure to comply with these warnings can lead to injury and/or damage of the basketball equipment. • Do not allow children to hang from the hoop/rim, climb on the base or up the pole • Do not perform ‘dunk’ moves on this basketball post as it is not designed for this purpose. During play ensure face does not come close to the ring or net as this could result in injury.
  • Page 8 Not just Basketball & Netball... You may or may not be aware that Bee-Ball is exclusive to the retailer Big Game Hunters who not only have a huge range of high quality basketball and netball equipment but are also owners of the UK’s leading sports ball retailer.
