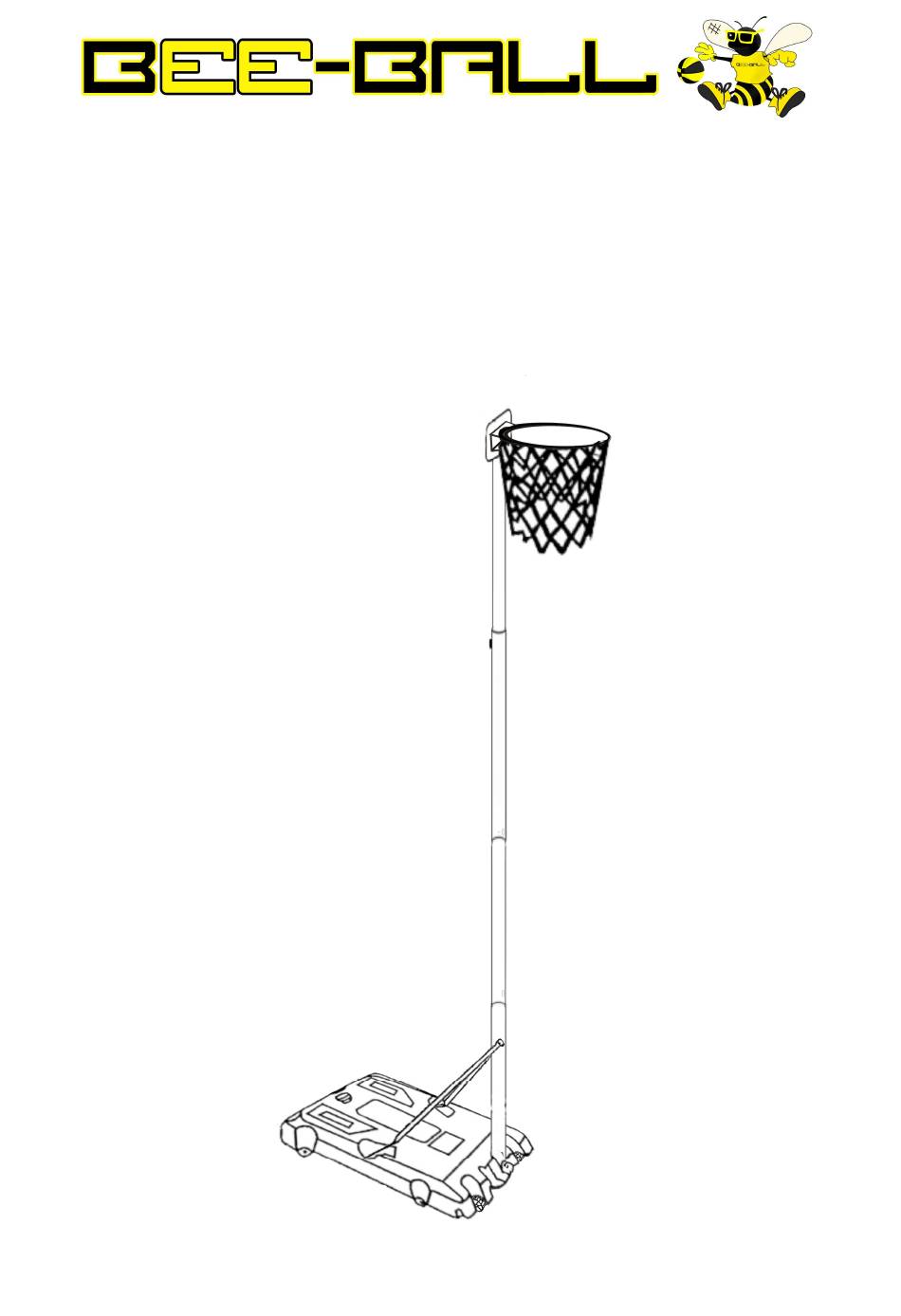

- Page 1 Instruction Manual for Bee-Ball Netball Stand 88101 WARNING: IMPROPER INSTALLATION OR SWINGING ON THE RING MAY CAUSE SERIOUS INJURY OR DEATH...
- Page 2 Base #1 Rim #2 Struts # 3 Net #4 Wheel #6 Wheel Axle #5 1 x 50mm Bolt #A 2 x 45mm Bolt #B 2 x 20mm Bolt #C 4 x 16mm Bolt #D Top Pole Adjustment Middle Bottom Pole #8 Pole #9 Pole #10 Hand Screw...
- Page 3 Overview, please see following pages for step by step instructions.
- Page 4 Tools Required: Spanner Set Socket set Please see advice below for correct nut and bolt assembly. Assembly Instructions: Step 1. Begin by putting the wheel axel (#5) through the base (#1) and the bottom pole (#10) and wheels (#6).
- Page 5 Step 2. Now fix the support struts (#3) into the base and on to the bottom pole. Use the M8*20cm screws to attach struts to base. Step 3. Now attach the uprights to the bottom pole using the M8*50mm bolt to fix into the pole.
- Page 6 Step 4. Assemble the next two upright poles as shown below using the M8*45mm bolts, the top pole is attached using the M8*20mm hand screw.
- Page 7 Tip. For the next step you might find it easier to lay the Netball Stand, it is always recommended to make sure the stand is secure to avoid injury. Step 5. Fix the rim to the plate on the top pole using the 4 x M6*16cm bolts. At this stage it is best to attach the net too.
- Page 8 *Please note – Height of stand can be adjusted by turning the adjustment screw on the second from top pole and sliding the top pole up or down. Height can also be adjusted by removing one pole section. Attaching the Net: Step 6: Fit the net from the outside in, loop the net over the hook and then pull.
-
Page 9: Safety Instructions
Safety Instructions Owner must ensure that all players know and follow the rules for safe operation of the • system. Do not hang on the rim or any part of the system including the backboard, rim, support • braces or net. During play, especially when performing dunk type activities, keep players face away from •... - Page 10 Big Game Hunters, Holly House, Pinewoods Road, Longworth, Oxon, OX13 5HG Tel: 01865 392439 sales@biggamehunters.co.uk www.biggamehunters.co.uk @thePlayExperts We like to ensure our products are quick and easy to assemble so you can start enjoying your purchase as soon as possible. If you have any recommendations on how the assembly instructions could be improved, please let us know.
