Getting started with BlueNRG-LP, BlueNRG-LPS evaluation platforms
Introduction
This document provides basic information on
hardware and software setup operations. It also describes the key information about the
associated software development package
troubleshooting cases.
The
BlueNRG-LP, BlueNRG-LPS
systems-on-chip, compliant with the Bluetooth® specification v5.x and supports master,
slave and simultaneous master-and-slave roles. The devices also support the Bluetooth Low
Energy data length extension, 2 Mbps, Long Range, extended advertising, GATT caching,
LE Ping procedure, Periodic advertising and periodic advertising sync transfer, LE L2CAP
connection-oriented channel, LE power control and path loss monitoring features.
The
BlueNRG-LPS
•
Angle of Arrival (AoA)
•
Angle of Departure (AoD).
The following
BlueNRG-LP, BlueNRG-LPS
•
STEVAL-IDB011V1,
platforms.
•
STEVAL-IDB012V1, BlueNRG-LPS
devices are low power Bluetooth® Low Energy (LE)
device also supports the Bluetooth LE direction findings features:
STEVAL-IDB011V2 BlueNRG-LP
BlueNRG-LP, BlueNRG-LPS
STSW-BNRGLP-DK
kits are available:
(QFN48 package) evaluation
(QFN32 package) evaluation platform.
Quick Start
Guide
evaluation kits
and some common
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueNRG-LP and is the answer not in the manual?

Questions and answers

Related Manuals for ST BlueNRG-LP

Summary of Contents for ST BlueNRG-LP

  • Page 1 Quick Start Guide Getting started with BlueNRG-LP, BlueNRG-LPS evaluation platforms Introduction This document provides basic information on BlueNRG-LP, BlueNRG-LPS evaluation kits hardware and software setup operations. It also describes the key information about the associated software development package STSW-BNRGLP-DK and some common troubleshooting cases.

  • Page 2: Table Of Contents

    Evaluation platforms ................... 3 Getting Started ..................... 4 Powering up the evaluation board ..............4 Install the ST BLE Sensor app for smartphones (central role) ....... 5 Run ST BLE Sensor app for smartphones ............ 5 Software demonstration applications ............7 Troubleshooting ...................

  • Page 3: Evaluation Platforms

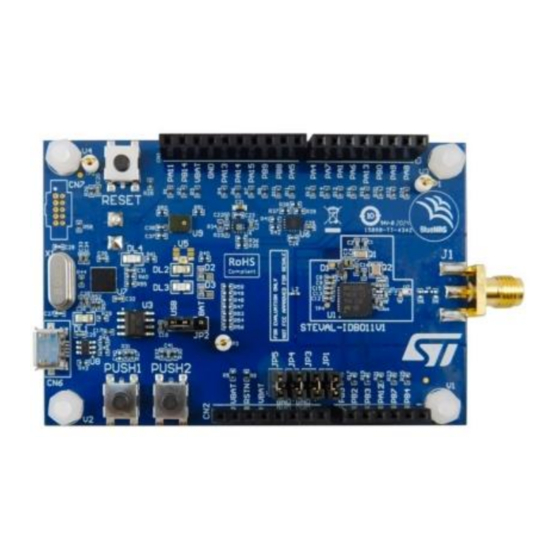

    Evaluation platforms STEVAL-IDB011V1, STEVAL-IDB011V2, STEVAL-IDB012V1 evaluation platforms embed a CMSIS-DAP programming/debugging interface and features hardware resources for a wide range of application scenarios: sensor data (accelerometer, pressure and temperature sensor), human interface (buttons and LEDs), digital MEMS microphone and serial communication through USB virtual COM. Figure 1 STEVAL-IDB011V1 evaluation platform Figure 2 STEVAL-IDB011V2 evaluation platform...
