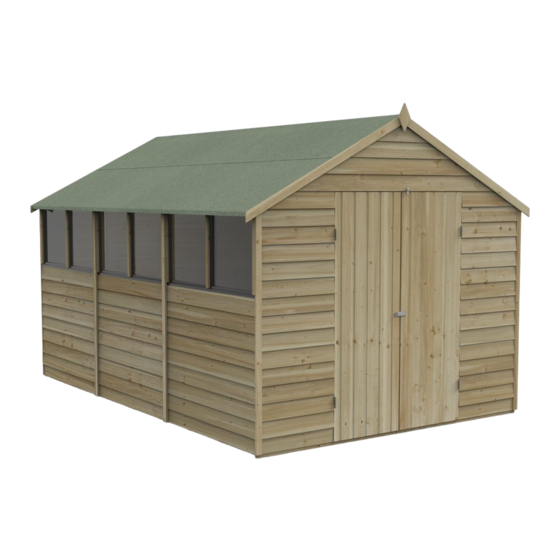

8' x 12'
Overlap Workshop
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not need additional
treatment.
- This product must be built on a solid level base.
- Please keep all plastic bags and small parts away from
children.
- The roof of this building is not a load bearing structure.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
0333 7777 089
Technical Helpline:
8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Fixing Pack (OPA812DDFP)
Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Turn Button
Qty 2
Flush Hinge
Qty 4
Z' bracket
10mm Felt tacks
Qty 16
Qty 110
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
TAPE MEASURE
SCISSORS
POZI DRIVE
FLAT HEAD
SCREWDRIVER
SCREWDRIVER
LADDER
HAMMER
Important : Assembly of
this shed requires a
Must Pre-drill for
minimum of two adults.
each screw used.
OPA812DD PARTS LIST
A
B
C
OPA8DE
OPA8PE
OPA812WS
WINDOW PANEL
DOOR END
PLAIN END
H
J
60151710PTR
1710mm CORNER STRIP QTY 6
M
45281835PTR
1835mm BATTEN QTY 4
Q
R
56120675PARPTR
60360200A1
675mm STRIP QTY 4
TRUSS SUPPORT QTY 2
1
B
D
A
C
Place the panels on top of the completed floor. Make sure that all the panels are tight and flush before fixing them to each
other using 3x50mm screws.
On the window panels use an 80mm screw to fix the top of the panels and 2 x 50mm screws for the middle and bottom.
When the panels are secured to each other, make sure they are square and fix to the floor using 3x50mm screws for
each panel making sure the screws are located in to the bearers underneath.
3
N
Fix the 1630mm batten against the end of the door using
3x70mm screws. Make sure it is flush with the door end's
framework.
Fix a turn button to the top and bottom of the batten using
1x30mm (zinc) screw for each.
D
E
OPA812PS
183513408
PLAIN PANEL
ROOF SHEET
QTY 2
QTY 2
QTY 4
K
45281757PTR
1757mmm BATTEN QTY 8
N
45451630PTR
1630mm BATTEN QTY 1
S
FIN20010512PT
FINIAL QTY 2
PLAN VIEW
Floor
Screws
A
4
Q
H
P
O
Q
Place the window from the outside so that the lip sits on the bottom board as shown.
Place the plastic strips at the top and bottom of the window so that one side butts up
against the cladding. Fix each strip in place using 2 x security screws.
Position the 675mm strips vertically on either side of each window, so that it overlap
both windows equally, and fix each with 2 x 25mm security screws.
H
F
G
DDRPT
WS12X8BRDFL
PCWIN1
DOOR QTY 2
FLOOR QTY 2
WINDOW QTY 6
The windows are packed
L
together tightly, separate before
assembly.
90121375PAII74PT
1375mm BARGE BOARD QTY 4
O
P
28120675PARPTR
675mm STRIP QTY 4
2
F
Place the hinge against the inside of the door frame and position the large section of the hinge so
that it is flush with the inside of the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make sure that the hinge is
flush and that the holes are positioned so that the 25mm screws locate correctly into the batten.
5
H
P
Lip
Board
Attention:
Take care when
placing the
screws. These
can not be
backed out.
You may need to
cut the plastic
strips to size using
a pair of scissors
Place and secure each angled block using 2x70mm screws.
Make sure these are 1470mm from the floor level and are
tight against the framework.
Place the truss so that is sits on the angled blocks. Secure
this in place by screwing down through the truss into the
blocks using 2 x 90mm screws for each end.
I
OPA8TRUSS
TRUSS
84996
675mm PLASTIC STRIP QTY 6
85052 QTY 3
I
R
