Forest garden Overlap Apex Shed Quick Start Quide

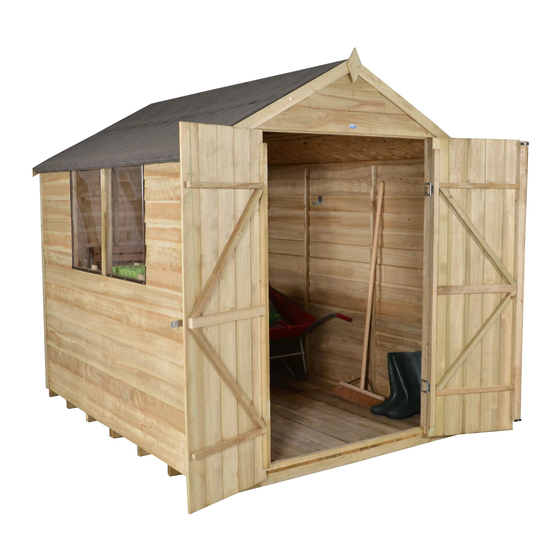

8' x 6' Overlap Apex Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pre-treated with a factory base coat for
protection during storage and transit. We recommend that
you treat your new building as soon as possible after
assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Fixing Pack (OPA68DDFP)
Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Hasp & Turn Button
Staple Qty 2
Flush Hinge
Qty 4
Ridge Plate
Z' bracket Qty 8
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
minimum of two
MUST PRE-DRILL
adults.
ODA68DD PARTS LIST
C
A B
ODA6DDE ODA6PE ODA8WS
DOOR END PLAIN END WINDOW PANEL
J H
37282365
2365mm BATTEN QTY 2
N
44121570DT
1570mm CORNER STRIP QTY 4
1
E

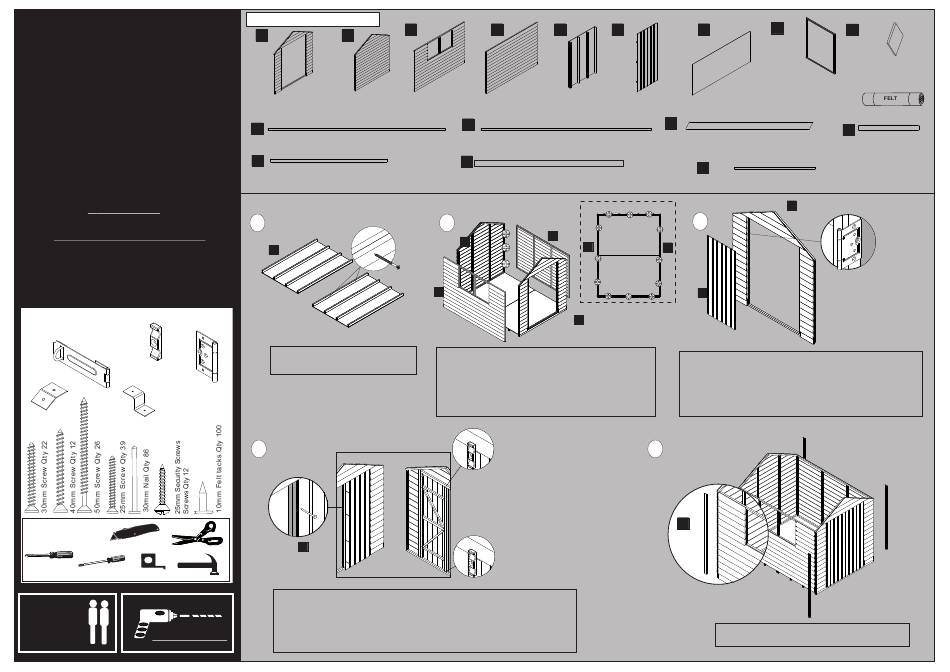

Fix both of the floors together using 2x50mm
screws screwing through the floor bearers as
shown.
4
O
Place the 1630mm batten against the inside of the door so that it is tight against the battens
on the reverse and leaves a small gap at the top and bottom. Fix the batten in place with 4 x
30mm Nails hammering through the door into the batten. (make sure the batten is supported
from the other side when fixing)
Fix a turn button to the top and bottom of the batten so that the door will be held closed when
fixed. Use a 30mm screw for each turn button.
D E F
ODA8PS SFL46 FLOOR
PLAIN PANEL QTY 2
K
37282275
2275mm BATTEN QTY 4
O
45281630DTR
45 x 1630mm BATTEN QTY 1
2
D
B
C
C
A
Place the panels on top of the completed floor. Make sure that all
the panels are tight and flush before fixing them to each other using
3x50mm screws.
When the panels are secured to each other, make sure they are
square and fix them to the floor using 3x50mm screws for each
panel. Make sure the screws are positioned so that they locate into
the bearers underneath.
H
G
PCWIN1
WINDOW QTY 2
The windows are packed
236510708
DDRDT
together tightly, separate
ROOF BOARD
DOOR QTY 2
QTY 2 before assembly.
L
59121110PAII62DT
1110mm ANGLED BARGE BOARD QTY 4
P
84996
675mm PLASTIC STRIP QTY 4
A
Top View
3
D
F
Place the hinge against the inside of the door frame and position the large
section of the hinge so that it is flush with the inside of the framing as
shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make
sure that the hinge is flush and that the holes are positioned so that the
25mm screws locate correctly into the batten.
5
M N
Place the corner strips so that they cover the joins between
the panels. Fix each in place using 3x30mm screws.
I
FIN20010512DTR
FINIAL
QTY 1
FELT78BL QTY 1
M
45120675PDT
675mm STRIP QTY 1
Issue 0215
