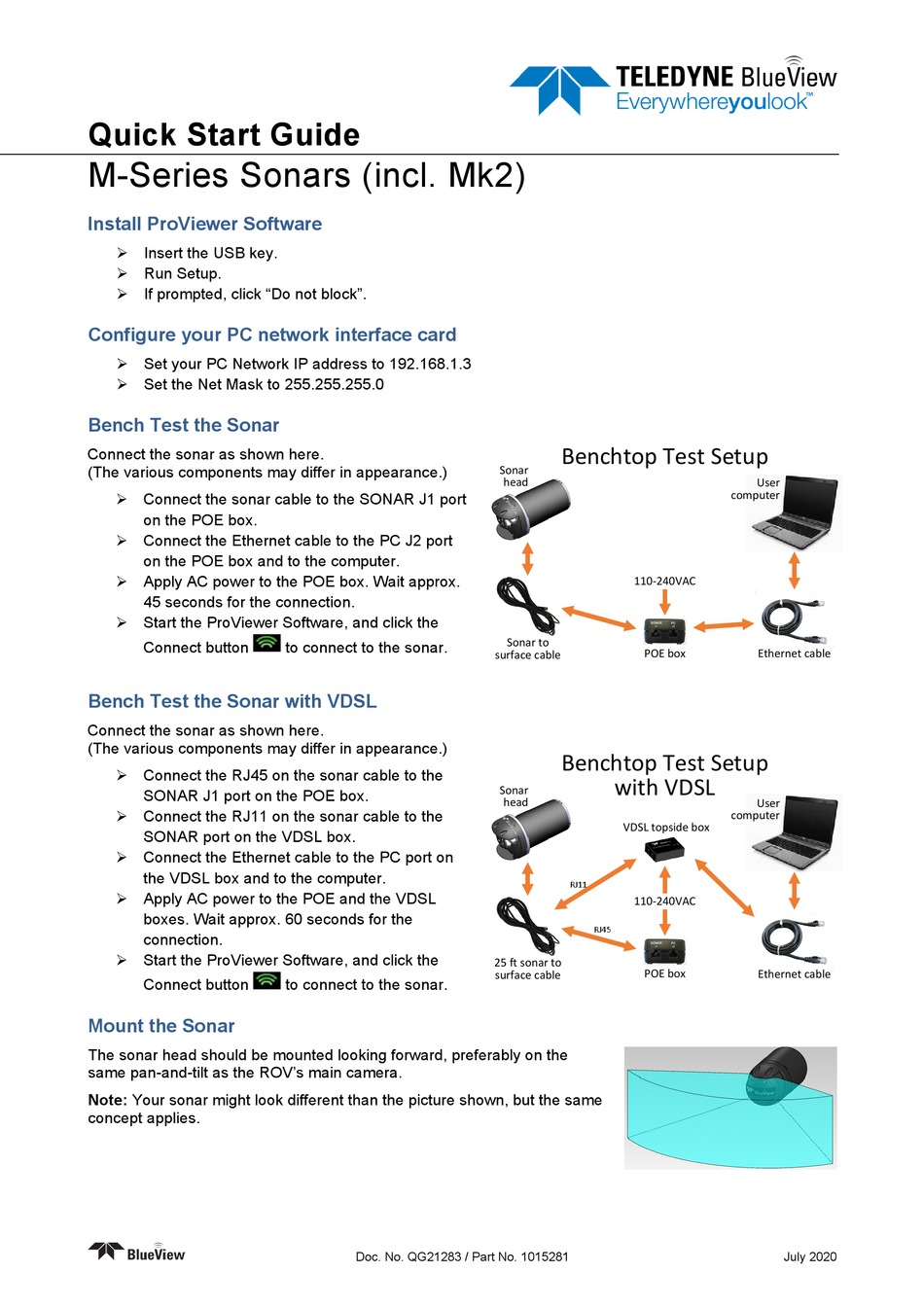

Quick Start Guide

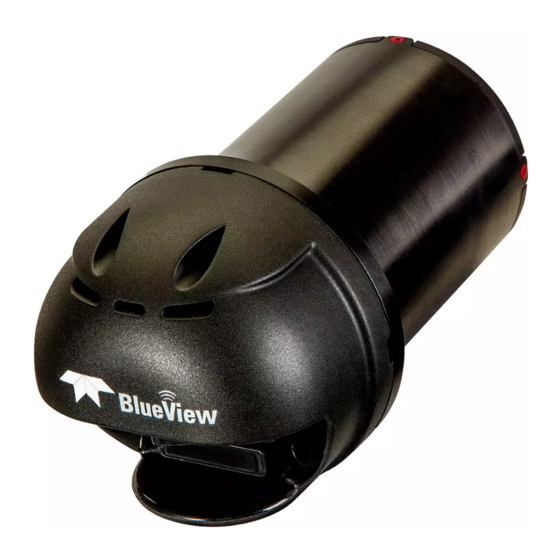

M-Series Sonars (incl. Mk2)

Install ProViewer Software

 Insert the USB key.
 Run Setup.
 If prompted, click "Do not block".

Configure your PC network interface card

 Set your PC Network IP address to 192.168.1.3
 Set the Net Mask to 255.255.255.0

Bench Test the Sonar

Connect the sonar as shown here.
(The various components may differ in appearance.)
 Connect the sonar cable to the SONAR J1 port
on the POE box.
 Connect the Ethernet cable to the PC J2 port
on the POE box and to the computer.
 Apply AC power to the POE box. Wait approx.
45 seconds for the connection.
 Start the ProViewer Software, and click the
Connect button

Bench Test the Sonar with VDSL

Connect the sonar as shown here.
(The various components may differ in appearance.)
 Connect the RJ45 on the sonar cable to the
SONAR J1 port on the POE box.
 Connect the RJ11 on the sonar cable to the
SONAR port on the VDSL box.
 Connect the Ethernet cable to the PC port on
the VDSL box and to the computer.
 Apply AC power to the POE and the VDSL
boxes. Wait approx. 60 seconds for the
connection.
 Start the ProViewer Software, and click the
Connect button

Mount the Sonar

The sonar head should be mounted looking forward, preferably on the
same pan-and-tilt as the ROV's main camera.
Note: Your sonar might look different than the picture shown, but the same
concept applies.
to connect to the sonar.
to connect to the sonar.
Doc. No. QG21283 / Part No. 1015281
Benchtop Test Setup
Sonar
head
110-240VAC
Sonar to
POE box
surface cable
Benchtop Test Setup
with VDSL
Sonar
head
VDSL topside box
RJ11
110-240VAC
RJ45
25 ft sonar to
POE box
surface cable
User
computer
Ethernet cable
User
computer
Ethernet cable
July 2020
