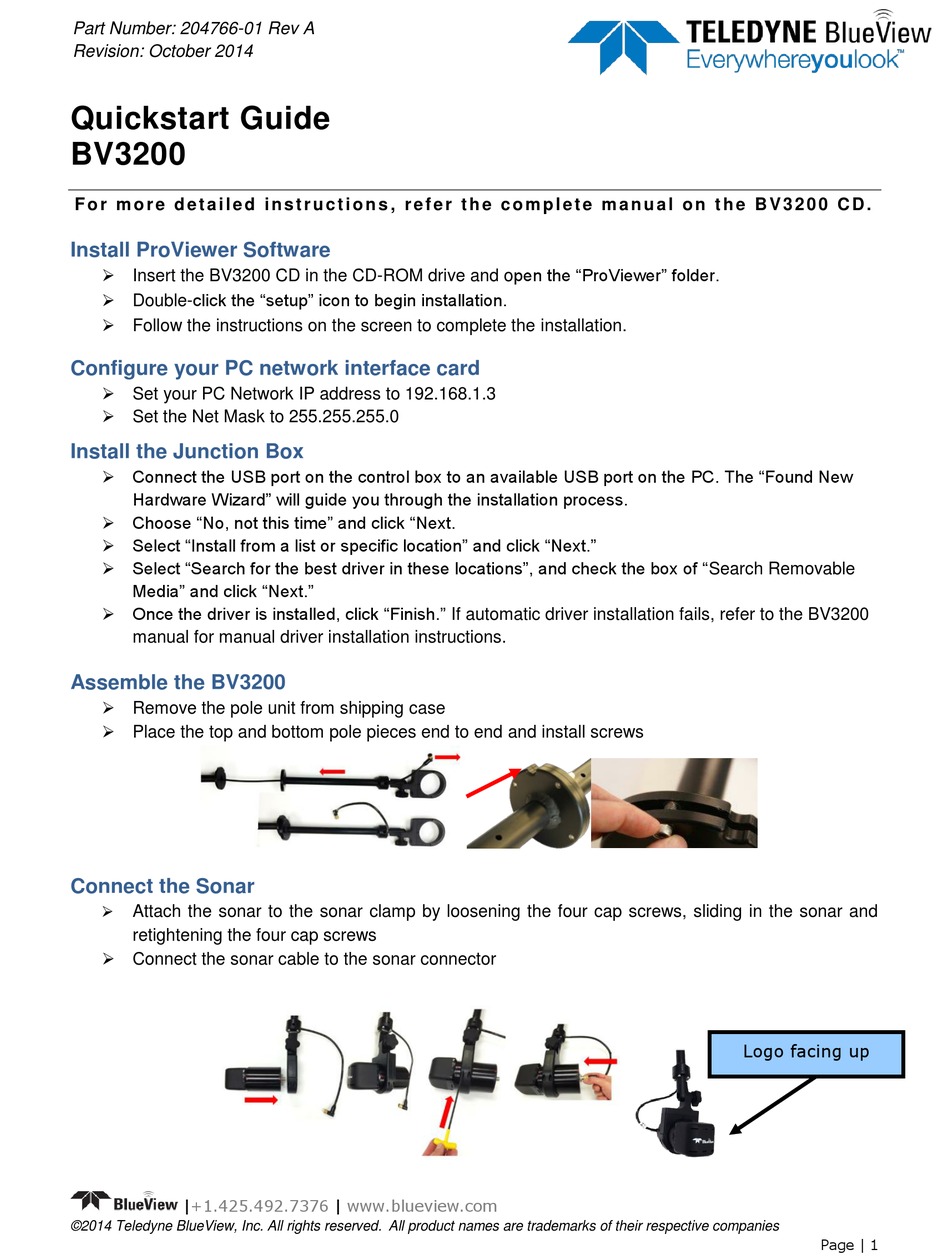

Teledyne BlueView BV3200 Quick Start Manual

Part Number: 204766-01 Rev A
Revision: October 2014
Quickstart Guide
BV3200
F o r m o r e d e t a i l e d i n s t r u c t i o n s , r e f e r t h e c o m p l e t e m a n u a l o n t h e B V 3 2 0 0 C D .
Install ProViewer Software
 Insert the BV3200 CD in the CD-ROM drive and open the "ProViewer" folder.
 Double-click the "setup" icon to begin installation.
 Follow the instructions on the screen to complete the installation.
Configure your PC network interface card
 Set your PC Network IP address to 192.168.1.3
 Set the Net Mask to 255.255.255.0
Install the Junction Box
 Connect the USB port on the control box to an available USB port on the PC. The "Found New
Hardware Wizard" will guide you through the installation process.
 Choose "No, not this time" and click "Next.
 Select "Install from a list or specific location" and click "Next."
 Select "Search for the best driver in these locations", and check the box of "Search Removable
Media" and click "Next."
 Once the driver is installed, click "Finish." If automatic driver installation fails, refer to the BV3200
manual for manual driver installation instructions.
Assemble the BV3200
 Remove the pole unit from shipping case
 Place the top and bottom pole pieces end to end and install screws
Connect the Sonar

Attach the sonar to the sonar clamp by loosening the four cap screws, sliding in the sonar and
retightening the four cap screws
 Connect the sonar cable to the sonar connector
|+1.425.492.7376
©2014 Teledyne BlueView, Inc. All rights reserved. All product names are trademarks of their respective companies
| www.blueview.com
Logo facing up
Page | 1
