Quickstart Guide
P-Series Sonar with VDSL

Install ProViewer Software

Insert the CD and run the Setup.
 If prompted by a firewall, click "Do not block."

Configure your PC network interface card

Set your PC Network IP address to 192.168.1.3.
Set the Net Mask to 255.255.255.0.

Bench Test the Sonar

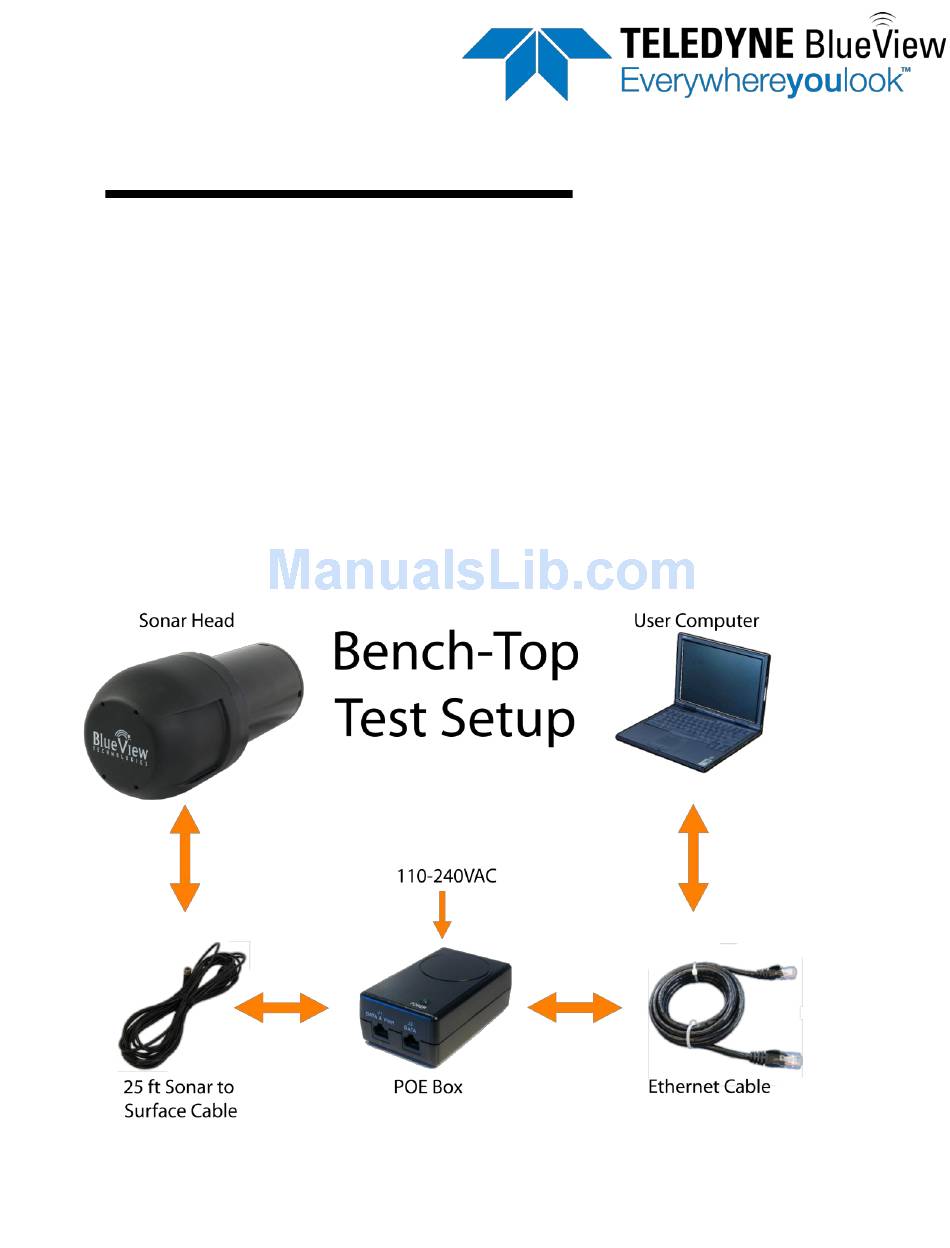

Connect the sonar as shown below.
1) Connect the RJ45 on the Sonar cable to port labeled "Sonar" on POE box.
2) Connect the Ethernet cable to the port labeled "PC" on the POE box and
connect to the computer.
3) Apply AC power to the POE box. The connection will be made in
approximately 60 seconds.
4) Start the ProViewer Software. Click the "Connect" button to connect to sonar.
Part Number 203359-01
REV: C
October 2013
© 2013 Teledyne BlueView, Inc. All rights reserved. Printed in USA
All product names are trademarks of their respective companies.
