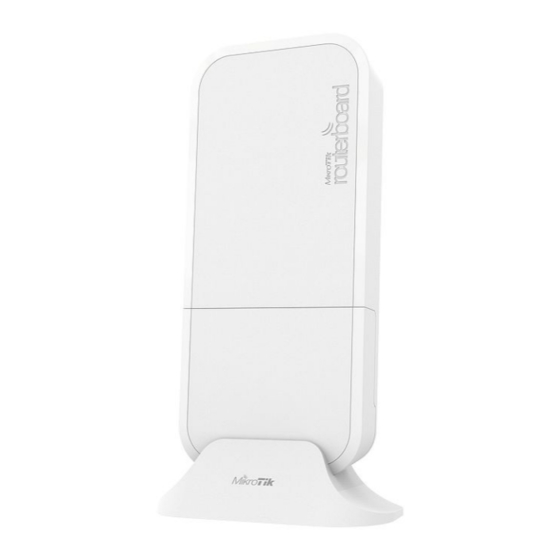

MikroTik wAP ac kit Series Manual
Hide thumbs Also See for wAP ac kit Series:

Advertisement

Quick Links

wAP ac kit-series
This manual cover wAP ac series models:
wAP ac LTE kit
wAP ac 4G kit
wAP ac LTE6 kit
This device needs to be upgraded to RouterOS v6.46. or the latest version to ensure compliance with local authority regulations.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Note. The information contained here is subject to change. Please visit the product page on
document.
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
All installation methods for mounting an access point on any wall surface is subject to the acceptance of local jurisdiction.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before
beginning installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation to
people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
www.mikrotik.com
for the most up to date version of this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wAP ac kit Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik wAP ac kit Series

  • Page 1 It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Note. The information contained here is subject to change. Please visit the product page on www.mikrotik.com...
  • Page 2: Quick Start

    Click on the "Apply Configuration" to save changes. MikroTik mobile app Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point. Scan QR code and choose your preferred OS.
  • Page 3 Mounting The device can be mounted in several ways: pole, wall, ceiling or it can be placed in a specially designed Mikrotik holder which comes with the package. The package also includes a drill hole template with detailed mounting instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall.
  • Page 4  It's recommended to secure Ethernet cable to the pole using zip ties. With the distance from the device approximately 30 cm. Mounting unit on the wall: Use included a template to mark spots for drilling holes. And if needed for Ethernet cable. Align accordingly, it will depend on how the device will be mounted finally.
  • Page 5 Avoid mounting the device on the low ground spot, as you won't be able to attach and close the bottom latch. Mounting on the ceiling: A Special bracket is included in the package to mount on the drop ceiling. As it consists of two parts, to be attached on both sides of the ceiling tile. Use the template to mark spots for holes.
  • Page 6: Expansion Slots And Ports

    Pull the cover in the opposite direction from the device to remove it. Reassemble. Expansion slots and ports Integrated two Wireless modules operating at 2.4 GHz and 5 GHz, supporting AP/CPE/P2P/repeater modes. Two Gigabit Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for connecting to other network devices.
  • Page 7 Remove both screws below the power jack and slide out the wAP PCB board; Disconnect the grey uFL connector from the MAIN antenna connector of the modem, disconnect the black cable from the other (or AUX) connector; Remove two plastic doors using a flat screwdriver or similar tool and feed antenna wires through the holes and connect to the LTE6 card installed; After you have reinserted the wAP board into the case and secured it with the screw that was removed earlier;...
  • Page 8: Buttons And Jumpers

    SIM slot usage SIM card slot is designed to use with Micro SIM cards. Nano SIM cards have different thickness, usage with adapter are not recommended. Buttons and jumpers The reset button has three functions: Hold this button during boot time until the LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds). Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode.
  • Page 9: Operating System Support

    Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed. To avoid pollution of the environment, please separate the device from household waste and dispose of it in a safe manner, such as in designated waste disposal sites.
  • Page 10: Innovation, Science And Economic Development Canada

    Model FCC ID Contains FCC ID wAP ac LTE6 kit TV7WAPGR5AC2D TV7R11ELTE6 wAP ac LTE kit TV7WAPGR5AC2D TV7R11ELTE wAP ac 4G kit TV7WAPGR5AC2D TV7R11E4G This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 11 Информация о дате изготовления устройства указана в конце серийного номера на его наклейке через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке.
  • Page 12: Ce Declaration Of Conformity

    Hereby, Mikrotīkls SIA declares that the radio equipment type RouterBOARD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/product WLAN / WCDMA / LTE / 5G 2400-2483.5 MHz / 20 dBm...
  • Page 13 WLAN et LTE conformément aux réglementations ETSI. Pour plus d'informations, voir la déclaration de conformité ci-dessus / Questo dispositivo MikroTik è conforme ai limiti massimi di potenza di trasmissione WLAN e LTE in conformità con le normative ETSI. Per ulteriori informazioni, consultare la dichiarazione di conformità...
