MikroTik LDF LTE6 kit Quick Start Manual

LDF LTE6 kit

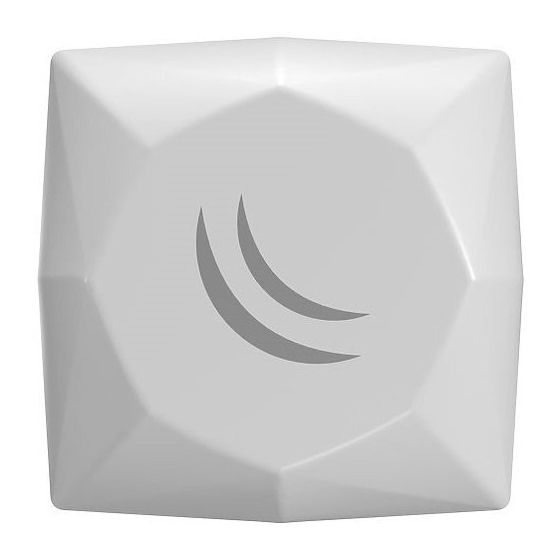

LDF LTE6 kit (RBLDFR&R11e-LTE6)
The LDF (Lite dish feed) is an outdoor LTE system, meant to be installed on an offset dish. The device comes with a modem and is ready to use.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be mounted on a pole. Please read the wall mounting instructions carefully before beginning installation. Failure to use the correct
hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Read the installation instructions before connecting the system to the power source.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Quick start
Open the Ethernet port door;
Insert the SIM card into the slot, with the chip facing UP;
Connect the device to the included PoE injector with Ethernet cable to the data+power end;
Connect the data end of PoE injector into the computer;
Connect the power adapter to the PoE injector;
Open the https://192.168.88.1
User name:
Use check for update option to upgrade the device to the latest version. You must have an active SIM card with available data;
The device will reboot;
Connect again and in
Secure your device and set a strong password.

Powering

The device accepts 10-28 V DC input from passive Power over Ethernet injectors. The device does not work with IEEE802.3af compliant 48 V power
injectors. A PoE injector is included in the package.
Maximum power consumption 8 W.
Connecting to a PoE Adapter:
1. Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter.
2. Connect an Ethernet cable from your local network (LAN) to the PoE adapter.
3. Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Assembly and Mounting

in your web browser;
admin , and there is no password;
QuickSet menu set your country, to apply country regulation settings;
