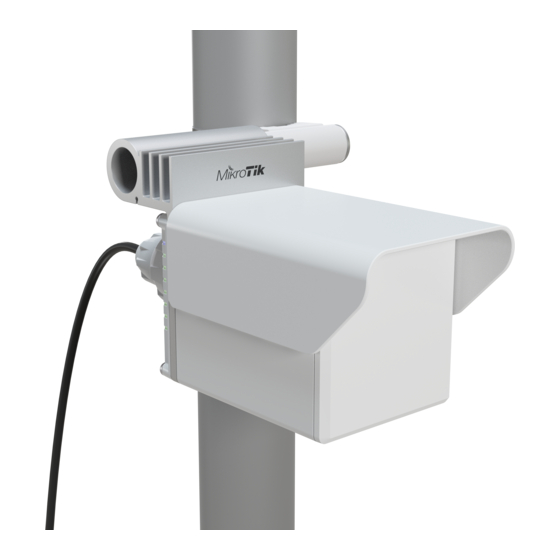

Wireless Wire Cube Pro, Cube 60Pro ac
Wireless Wire Cube Pro
Cube 60Pro ac
(CubeG-5ac60ay)
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Note. The information contained here is subject to change. Please visit the product page on
of this document.
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
This is a class A device. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
(CubeG-5ac60aypair)
www.mikrotik.com
for the most up-to-date version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Wire Cube Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik Wireless Wire Cube Pro

  • Page 1 It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Note. The information contained here is subject to change. Please visit the product page on www.mikrotik.com...
  • Page 2: Quick Start

    Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 21 centimeters from your body, occupational user, or the general public.
  • Page 3: Extension Slots And Ports

    Wireless Chains 1 Antenna gain (dBi) 11.5 5 GHz Antenna beamwidth 35° 5 GHz Antenna beamwidth at 60 GHz 11° (CubeG-5ac60ay); 60° (CubeG-5ac60ay-SA) GPS MT3337V WiGig chipset QCA6438 WiGig antenna module SWL-QD46 Supported protocol MikroTik 802.11ad / 802.11ay Max EIRP (dBm) 40...
  • Page 4: Reset Button

    Dimensions 115 x 95 x 82 mm (CubeG-5ac60ay) 115 x 211 x 90 mm (Cube G-5ac60ay-SA) Operating temperature -40°C to +70°C Operating system RouterOS, License level 4 Reset button The routerBOOT reset button has the following functions. Press the button and apply the power, then: Release the button when green LED starts flashing, to reset RouterOS configuration to defaults.
  • Page 5 Federal Communication Commission Interference Statement FCC ID: TV7CB5A60Y This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 6 BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение CubeG-5ac60ay, CubeG-5ac60ay-SA е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com /products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení CubeG-5ac60ay, CubeG-5ac60ay-SA je v souladu se směrnicí 2014/53/EU. Úplné znění...
  • Page 7 NL Hierbij verklaar ik, Mikrotīkls SIA , dat het type radioapparatuur CubeG-5ac60ay, CubeG-5ac60ay-SA conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: https://mikrotik.com/products NO Mikrotīkls SIA erklærer herved at utstyret CubeG-5ac60ay, CubeG-5ac60ay-SA er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU.
  • Page 8 Операционные каналы / максимальная выходная мощность 62.64 GHz / <40 dBm WLAN Operating Frequency / Maximum output power Betriebsfrequenz / maximale Ausgangsleistung Fréquence de fonctionnement / puissance de sortie maximale Frequenza operativa / massima potenza di uscita 5470-5725 MHz / 27 dBm (EN) Technical Specifications / (DE) Technische Spezifikationen / (FR) Spécifications Frecuencia de funcionamiento / potencia de salida máxima techniques / (IT) Specifiche tecniche / (ES) Especificaciones técnicas / (RU) Технические...
