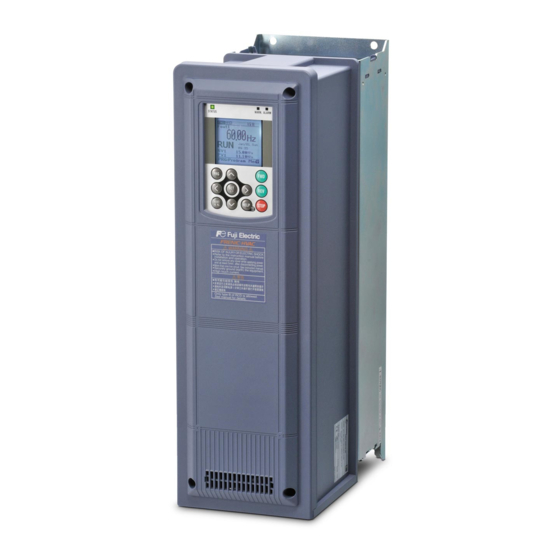

- Page 1 STARTING GUIDE HYDRAULIC SOLUTION Frequency inverter for hydraulic elevator SG_FUJI_Hydaulic_EN_1.0.9...
- Page 2 M.A. Gómez S. Ureña S. Ureña 1.0.8 Logos are updated 12/09/13 S. Ureña S. Ureña S. Ureña 1.0.9 Auto Power Limitation function is revised 22/11/13 M. A. Gómez S. Ureña S. Ureña Fuji Electric Europe GmbH Page 2 of 26...
-
Page 3: Table Of Contents
APL acceleration/deceleration ramps ..................19 9.4.2 Deceleration holding time during APL ..................19 9.4.3 Parameters to enable Auto Power Limit function (APL) ............21 10 RECOMENDED SETTING ........................23 11 ALARM MESSAGES ..........................25 Fuji Electric Europe GmbH Page 3 of 26... -
Page 4: About This Manual
ABOUT THIS MANUAL Fuji Electric Europe GmbH, looking forward to bring on the market new solutions for energy saving, has developed a new starting guide for the implementation of FUJI - HYDRAULIC in hydraulic lift applications. The aim of this starting guide is to explain how to set basic functions of FUJI - HYDRAULIC useful for hydraulic lift applications. -
Page 5: Installation
Otherwise, a fire or an accident could occur. • Do not connect the power supply wires to the inverter output terminals (U, V, and W). Doing so could cause fire or an accident. Fuji Electric Europe GmbH Page 5 of 26... -
Page 6: Operation
• If any abnormality is found in the inverter or motor, immediately stop it and perform troubleshooting, referring to the FUJI - HYDRAULIC User’s Manual. An accident or injuries could occur. Fuji Electric Europe GmbH Page 6 of 26... -
Page 7: Technical Data
Table 1: Specifications A box ( ) replaces an alphabetic letter depending on the enclosure. Enclosure: M=IP21; L=IP55. Fuji Electric 4-pole standard motor When the inverter is connected to the power supply of 400 V, 50 Hz, Rsce = 120. -
Page 8: Conformity To The Low Voltage Directive In The Ue
3. When used with the inverter, a molded case circuit breaker (MCCB), residual-current-operated protective device (RCD)/earth leakage circuit breaker (ELCB) or magnetic contactor (MC) should conform to the EN or IEC standards. Table 3: Protections Fuji Electric Europe GmbH Page 8 of 26... -
Page 9: Wiring Size
C2 and 2º environment are fulfilled. Figure 2: Built-in EMC filter screws If leakage current problems persist, check that RCD installed is the appropriate one (300 mA – type B and/or super immunized). Fuji Electric Europe GmbH Page 9 of 26... -
Page 10: Multifunctional Keypad
If some doubt arises on the current screen, by pressing this key HELP screen is called up. Holding it down for 2 seconds toggles between modes. Table 6: Overview of keypad functions Fuji Electric Europe GmbH Page 10 of 26... -
Page 11: Setting
PRG>2>1 5. Use to select parameter which has to be F:Fundamental modified (in this case F03), and press 00:Data protection confirm. 01:Freq comm d 1 02:Opr method 03:Maximum freq 04:Base freq ↓ Fuji Electric Europe GmbH Page 11 of 26... -
Page 12: Wiring Example
In order to simplify wirings, to keep current connection is recommended (retrofit case). Mains supply Mains supply 3ph 400 V 3ph 400 V FRE NIC Hydraulic Motor Power wiring diagram without inverter Motor Power wiring diagram with inverter Figure 4: Power wiring connection example Fuji Electric Europe GmbH Page 12 of 26... -
Page 13: Valves Control
MAINTENANCE SPEED signal. Safety chain signal. • Basic wiring diagram In figure 5, a basic example of power and control (input/output) signals connection is shown. Figure 5: Example of basic wiring diagram Fuji Electric Europe GmbH Page 13 of 26... -
Page 14: Running The Motor
Auto tuning mode 1 (P04=1) is static, it means that motor will not turn. Auto tuning process will automatically finish. When it is finished parameter is shown. If inverter trips during auto tuning, please check chapter 11. Fuji Electric Europe GmbH Page 14 of 26... -
Page 15: Speeds Setting
20 Hz Table 10: Example of speed profile parameters NOTE: LOW and MAINTENANCE speed have to be high enough to be able to move the car in UP direction with full load. Fuji Electric Europe GmbH Page 15 of 26... -
Page 16: Acceleration/Deceleration Ramps
C16 / C17 / C18 / C19 10 Hz Soft start acc. ramp 15 s Soft start holding time 2.5 s /SS4 1002 6000 Additional Soft start setting Table 12: Soft start parameters Fuji Electric Europe GmbH Page 16 of 26... -
Page 17: Soft Stop
DC braking level 1.5 s Braking holding time 2.0 s Dec. ramp from LOW to stop Table 13: Soft stop parameters Time EN1, EN2 MC Control Figure 8: Soft stop speed profile Fuji Electric Europe GmbH Page 17 of 26... -
Page 18: Auto Power Limit
In order to have APL function activated, following conditions must be met: • X3= ON Command speed > 10 Hz • Output frequency > E31 • When one or more conditions are not met, APL function will be automatically disabled. Fuji Electric Europe GmbH Page 18 of 26... -
Page 19: Apl Acceleration/Deceleration Ramps
(limited output frequency due to APL) in order to not expend too much time in creep speed. By means of this function, creep speed time will be almost same independently of car load. Fuji Electric Europe GmbH Page 19 of 26... - Page 20 It is recommended to set U49 when car is half load and U59 when car is full load. Input limit power and holding times will depends on the installation, this is reason why each parameter can be programed by end user. Fuji Electric Europe GmbH Page 20 of 26...
-
Page 21: Parameters To Enable Auto Power Limit Function (Apl)
2003 2004 2055 2002 Power limit 0.10 APL configuration 2006 2003 2005 2071 8000 90.0 % 79.9 % 2008 2009 0.25 s 2071 8000 79.9 % 60 % 2008 2011 0.50 s Fuji Electric Europe GmbH Page 21 of 26... - Page 22 Inverter capacity 11 kW 0.22 15 kW 0.30 18.5 kW 0.37 22 kW 0.44 30 kW 0.60 37 kW 0.74 45 kW 0.90 55 kW Table 16: U94 setting Fuji Electric Europe GmbH Page 22 of 26...
-
Page 23: Recomended Setting
APL Configuration. See Step 4 Control Function 2056 chapter 9.4 Step 4 Input 1 8020 Step 4 Function 1 20.0 Step 5 Control Function Step 5 Input 1 2003 Step 5 Function 1 2004 Fuji Electric Europe GmbH Page 23 of 26... - Page 24 CLO04 (Function) APL Configuration. See chapter 9.4 CLO05 (Function) 8014 Coefficient (Mantissa KB1) See table 16 Language 1: English Shortcut function on key “<” Shortcut function on key “>” Table 17: Recommended setting Fuji Electric Europe GmbH Page 24 of 26...
-
Page 25: Alarm Messages
The Enable circuit was diagnosed as a circuit failure. Customizable logic error A customizable logic configuration error has caused an alarm. Mock alarm A mock alarm has been generated intentionally by keypad operation. Table.18 Alarm message codes Fuji Electric Europe GmbH Page 25 of 26... - Page 26 CONTACT INFORMATION Headquarters Europe Headquarters Japan Fuji Electric Europe GmbH Fuji Electric Co., Ltd. Goethering 58 Gate City Ohsaki East Tower, 63067 Offenbach/Main 11-2 Osaki 1-chome, Shinagawa-ku, Germany Chuo-ku Tel.: +49 (0) 69 669029 0 Tokyo 141-0032 Fax: +49 (0) 69 669029 58 Japan Info.inverter@fujielectric-europe.com...
