BLUETTI B230 - Portable Power Station Manual

BRIEF INTRODUCTION

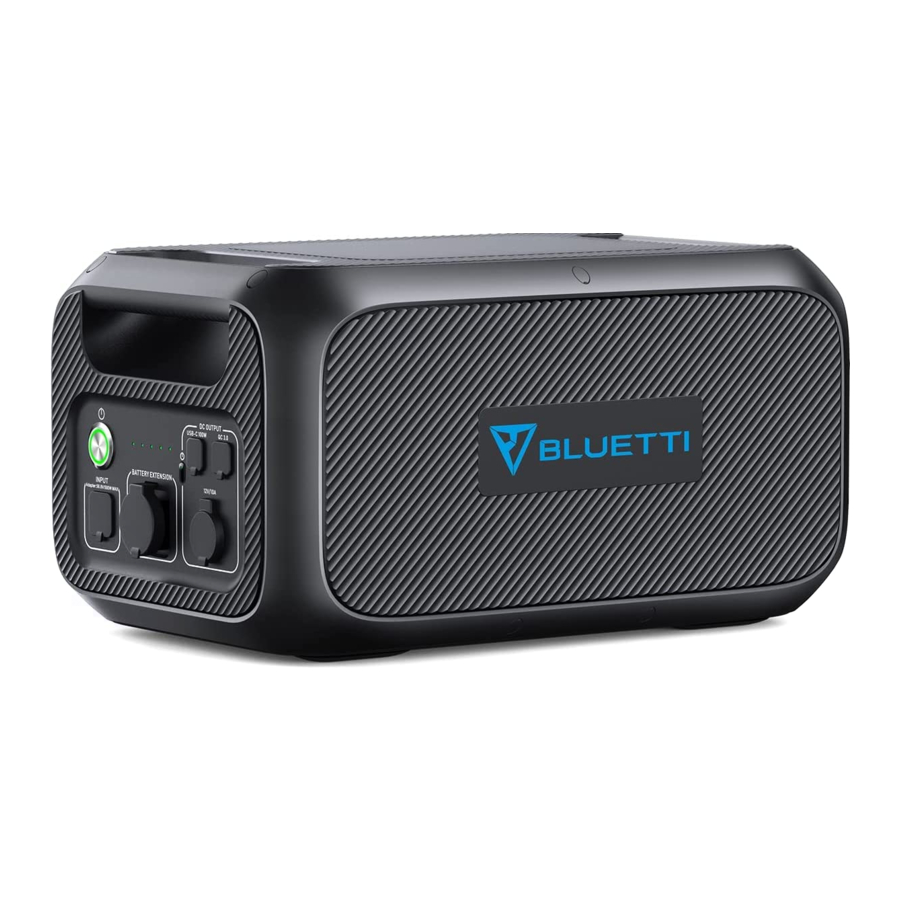

B230, expansion battery module owns 2048Wh capacity to support BLUETTI AC200MAX series. AC200MAX + B230 setup can be an emergency power center to run your home or travel essential appliances, or with enough solar panels, you can even live off-grid life on the way.

ABBREVIATION

• BMS: Battery Management System
• SOC: State of Charge
• AC: Alternating Current
• DC: Direct Current
• PV: Solar Panel(s) Charging (Photovoltaic)
• Grid: Home Power Supplied by Utility
• T500: 500W Additional Adapter
• DOD: Depth of Discharge

BLUETTI APP

With BLUETTI App, the remaining capacity of B230 can be viewed via Bluetooth or on the touchscreen of AC200MAX when B230 has been connected to AC200MAX already.

IN THE BOX

Standard Accessories

No.	Category	Quantity
1	B230 Battery Module	1
2	Battery Expansion Cable(P090A) For battery expansion, connect B230 with AC200MAX.	1
3	User Manual Please read the manual before use and follow its guidance, keep this manual for future reference.	1
4	Warranty Card Please keep this Warranty Card properly.	1
5	Certificate of QC PASS	1

Additional Purchase Accessories
Sold on BLUETTIPOWER.COM

Type	Category
Optional Input Cable	T500 Adapter
	D050S Charging Kit (Including D050S unit, PV Charging Cable, Car Charging Cable)
	D050S Lead-acid Charging Cable
	Cigarette Lighter Port to DC5521 (Support devices with DC5521 input port such as router, camera, laptop etc)
	P090D-7909 Connect B230/B300 with EB120, EB150, EB180, EB240
	P090D-XT90, XT90-Aviation Plug Connect B230/B300 with AC200/P, AC200MAX, EB200/P, PS200A
	P090D-MC4 Connect B230/B300 with EP500Pro

LET'S GET STARTED

• Power On: Long press on the power button. The power button indicator will illuminate.
• Power Off: Long press of the power button for 2 seconds. The power button LED indicator will turn off.

FEATURES

RECHARGE

AC Charging (Default)

(Charge B230 through T500 adapter)

Estimation of Charging Time: 2048Wh / 500W(T500 adapter) + (0.5–1 Hrs Trickle Charging) = 4.6-5.1Hrs for AC200MAX fully charged via T500 adapter only.

Estimation of Running Time: 2048Wh / 96W (MacBook Pro) *0.9(DoD) * 0.9(η) = 17 Times.

DoD indicates Depth of Discharge. η indicates efficiency.

Expansion Charging 01

(Recharge AC200MAX by T500 adapter)

SOC-A: the remaining capacity of AC200MAX

SOC-B: the remaining capacity of B230 battery pack

When SOC-A = SOC-B, both of the two units will be charged simultaneously.

When SOC-A

When SOC-A > SOC-B, only AC200MAX will be recharged.

Expansion Charging 02

(T500 adapter on B230)

When SOC-A = SOC-B, both of the two units will be charged simultaneously. When SOC-A

When SOC-A > SOC-B, B230 will be charged first by all power sources in the Capacity Fusion System until SOC-B = SOC-A, then both of the two units will be charged simultaneously.

AC200MAX + B230 EXTRA BATTERIES

Step 1: Turn ON/OFF B230.

Step 2: Press the button(a) and fully plug Battery Expansion Cable into the battery port of AC200Max.

Step 3: Push forward the switch(b) to lock the connection.

(Hotswap expansion battery easy setup.)

(AC200MAX + *1 B230 = 4096Wh Capacity)

(AC200MAX with *2 B230 = 6144Wh)

TECHNICAL SPECIFICATIONS

FAQ (Frequently Asked Questions)

• How to claim the warranty?
  Please refer to the warranty card you received from where you have ordered the product from.
• Can the unit be upgraded?
  When B230 has been connected to AC200MAX, the firmware including ARM, DSP, IoT and BMS can be upgraded online through OTA via BLUETTI APP.
• Can it be charged and discharged at the same time?
  Yes B230 supports simultaneous recharge&discharge.
• How to store B230?
  We recommend a 3-6 months charging to 80% capacity to extend the battery life, over-discharge will damage the battery cell.
