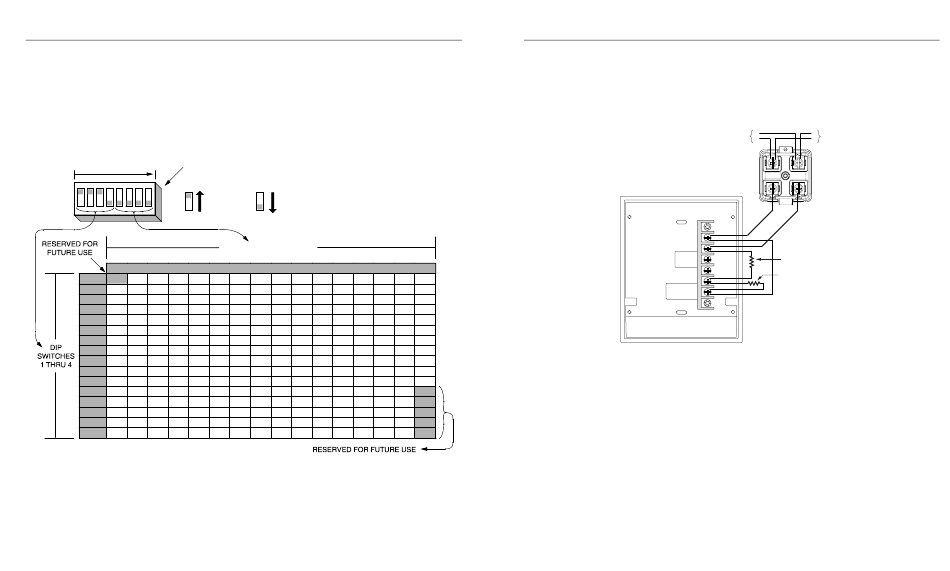

Setting the 2-Stage Station IAMs Address
Each 2-Stage Station IAM has a unique address (1 through 250). The address of the IAM is set by an eight
position dip switch (Figure 1), DIP switch position 1 is the least significant bit (LSB) and position 8 is the most
significant bit (MSB). Set the IAMs address using Figure 2 as reference. Use a small screwdriver or pen to set
the switches. The device address for the 2-Stage Station IAM should be written on the re-sealable label; this
information provides an aid in troubleshooting the system.
Note: DIP switch in "1" position is "ON" while DIP switch in "0" position is "OFF".
LSB MSB DIPSWITCH IS SHOWN SET AT ADDRESS 7.
1 2 3 4 5 6 7 8
ON
OFF
0000 1000 0100 1100 0010 1010 0110 1110 0001 1001 0101 1101 0011 1011 0111 1111
0000 0 16 32 48 64
1000 1 17 33 49 65
0100 2 18 34 50 66
3 19 35 51 67
1100
0010 4 20 36 52 68
1010 5 21 37 53 69
0110 6 22 38 54 70
1110 7 23 39 55 71
0001 8 24 40 56 72
1001 9 25 41 57 73
0101 10 26 42 58 74
1101 11 27 43 59 75
12 28 44 60 76
0011
1011 13 29 45 61 77
0111 14 30 46 62 78
1111 15 31 47 63 79
Figure 2. 2-Stage Station IAM Address Chart
Configure the 2-Stage Station IAM to the 4010 panel using the 4010 Fire Alarm – PC Programmer Installation
and Programming Instructions (574-187) and 4010 Fire Alarm – Front Panel Installing, Operating, and
Programming Instructions (574-052). Refer to 4010 panel label 526-444 for appropriate revision of the
instructions to be used.
1 = ON 0 = OFF
DIP SWITCHES 5 THRU 8
80 96 112 128 144 160 176 192 208 224 240
81 97 113 129 145 161 177 193 209 225 241
82 98 114 130 146 162 178 194 210 226 242
83 99 115 131 147 163 179 195 211 227 243
84 100 116 132 148 164 180 196 212 228 244
85 101 117 133 149 165 181 197 213 229 245
86 102 118 134 150 166 182 198 214 230 246
87 103 119 135 151 167 183 199 215 231 247
88 104 120 136 152 168 184 200 216 232 248
89 105 121 137 153 169 185 201 217 233 249
90 106 122 138 154 170 186 202 218 234 250
91 107 123 139 155 171 187 203 219 235
92 108 124 140 156 172 188 204 220 236
93 109 125 141 157 173 189 205 221 237
94 110 126 142 158 174 190 206 222 238
95 111 127 143 159 175 191 207 223 239
2
Making Electrical Connections to the 2-Stage Station IAM
The IDNet channel connects to the 2-Stage Station IAM via terminals 1 and 2. The manual station connects
to the 2-Stage Station IAM via terminals 3 and 4. Terminal connections are illustrated in Figure 3.
CAUTION: Do not loop wire under terminals. Break wire runs to provide supervision.
Notes:
251
1. When connecting two wires to one terminal, position one wire on each side of the terminal screw.
252
Maximum allowable run from 4010 FACP to farthest device not to exceed 2500 feet. Maximum
253
total wire (including all T-Taps) from 4010 FACP is 10000 feet. IDNet wiring is supervised and
254
power-limited.
255
2. Maximum wire length is 500 feet, #18 AWG.
3. Refer to Field Wiring Diagram 842-073 for further information. Refer to 4010 panel label 526-444
for appropriate revision of the Field Wiring Diagram to be used.
firealarmresources.com
-
IDNet
+
6
5
1.8 K 1/2 W
4 733-984
(4081-9005)
3
4.7 K 1/2 W
2 733-896
(4081-9003)
1
PRE-SIGNAL STATION
TYPE 2099-9107C, -9108C, -9759C
Figure 3. 2-Stage Station IAM Connections
3
- IDNet to
+
next device
2-STAGE
STATION
IAM
