Distance between drill holes
max 1000 mm
Divide the width between both outer drill holes into
equal sections (in accordance with possibilities).
Pay attention that the maximum distance of 1000
mm between two drill holes will not be exceeded.
Installation in recess
/HYHO WKH VLGH JXLGLQJ FKDQQHO ÀXVK ZLWK WKH EDFN-
side of the bracket. Fix the channel in this position
(with provided screws).
)L[ WKH OHIW VLGH JXLGLQJ FKDQQHO MXVW OLNH WKH ¿UVW
FKDQQHO 0DNH VXUH WKDW WKH ERWWRP UDLO ¿WV LQWR WKH
side guiding channels.
REV 08
October`10

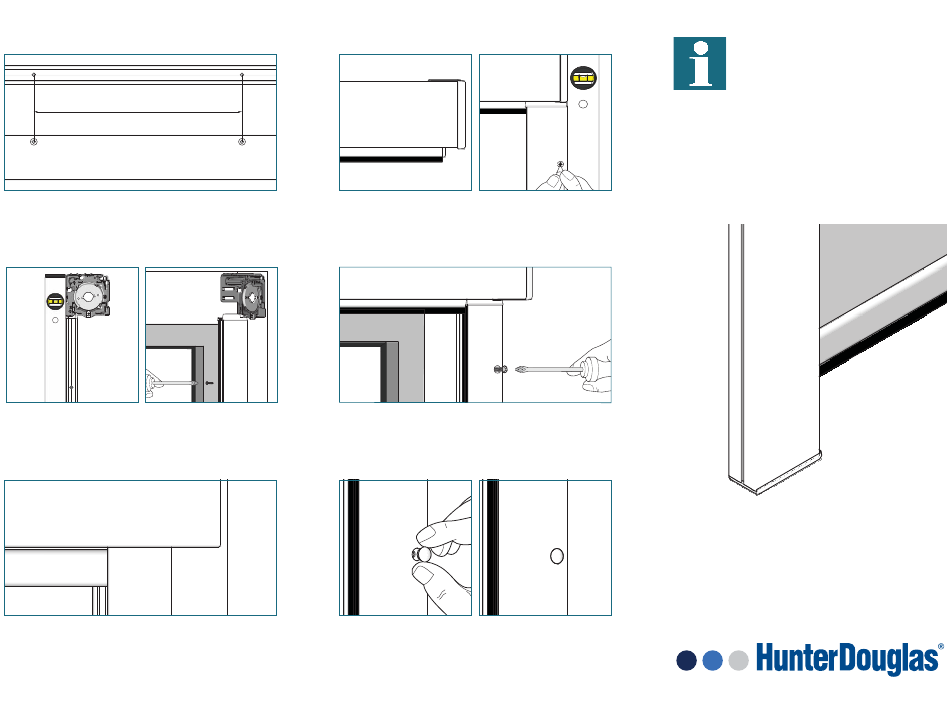

Installation with screw
Install the roller blind. Level the side guiding chan-
QHO ÀXVK ZLWK WKH HQG FDS DQG SRVLWLRQ WKH WRS RI WKH
channel against the bottom of the end cap. Mark the
drilling positions.
Fix the side guiding channel (with provided screws)
on the marked position.
Press the cover caps onto the drill holes.
Installation Instruction
Roller Blind
Side Channel Guiding
Type
SCG 64
