Unleashed T710s Access Point
Quick Setup Guide

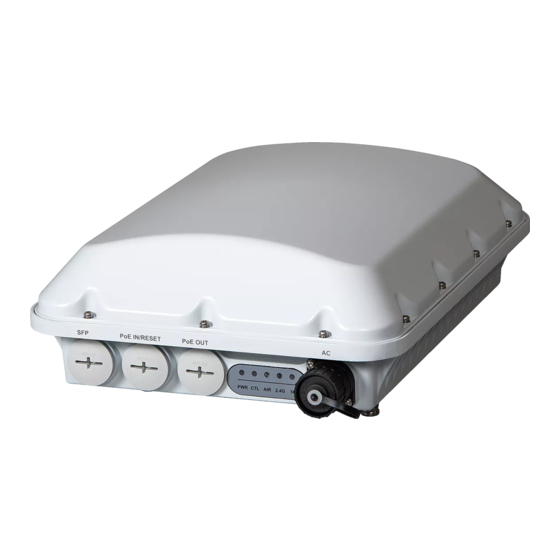

This Quick Setup Guide provides step-by-step instructions on how to install your
Ruckus Wireless Unleashed T710s access point (AP).
For detailed information on configuration and administration of your Unleashed T710s,
refer to the Unleashed Online Help, available at docs.ruckuswireless.com/
unleashed/200.2/index.html.
Only trained and qualified personnel should be allowed to
WARNING:
install, replace, or service this equipment.
WARNING: Installation of this equipment must comply with local and
national electrical codes.
Make sure that you form a 80mm - 130mm (3"-5") drip
CAUTION:
loop in any cable that is attached to the AP or the building. This will
prevent water from running along the cable and entering the AP or the
building where the cable terminates.
CAUTION: Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION: Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
Ruckus Wireless strongly recommends that you wear eye
WARNING:
protection before mounting the Unleashed T710s.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
.
https://support.ruckuswireless.com
Vous trouverez la version française de ce guide à l'adresse suivante
.
https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
( ) 에서 확인하시기 바랍니다 .
https://support.ruckuswireless.com
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
/support.ruckuswireless.com.
B Y B
EFORE OU EGIN
Before deploying your Ruckus Wireless Unleashed T710s, verify that all items listed in
Package Contents are included in the package. If any item is damaged or missing, notify
your authorized Ruckus Wireless sales representative. Also, make sure that you have the
required hardware and tools.
Copyright © 2016 Ruckus Wireless, Inc.
Published July 2016, Part Number 800-71269-001 Rev A
R H
EQUIRED ARDWARE AND
• Customer-supplied outdoor-rated three-wire (1-2mm
18AWG) AC cable
• 1/2" (13mm) flat-blade screwdriver or equivalent
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole --OR-- a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
• Four factory-supplied 1/2" (12.7mm) wide stainless steel
adjustable clamps, 2.5" (63.5mm) diameter, for main mounting
bracket on smaller poles
• Ruler
P C
ACKAGE ONTENTS
A complete Unleashed T710s field installation package includes all of the items listed
below (see Figure 1for illustrations):
• Unleashed T710s Access Point (A)
• M25 data cable gland extender (B)
• Three M25 data cable glands (C)
• Outdoor AP Mounting Bracket (D)
• AC Power Cable End Connector (E)
• Cable Gland Extender Flat Gasket (F)
• Safety cable kit (G)
• One ground wire with lug (H)
• Service Level Agreement/Limited Warranty Statement
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• Declaration of Conformity
• This Quick Setup Guide

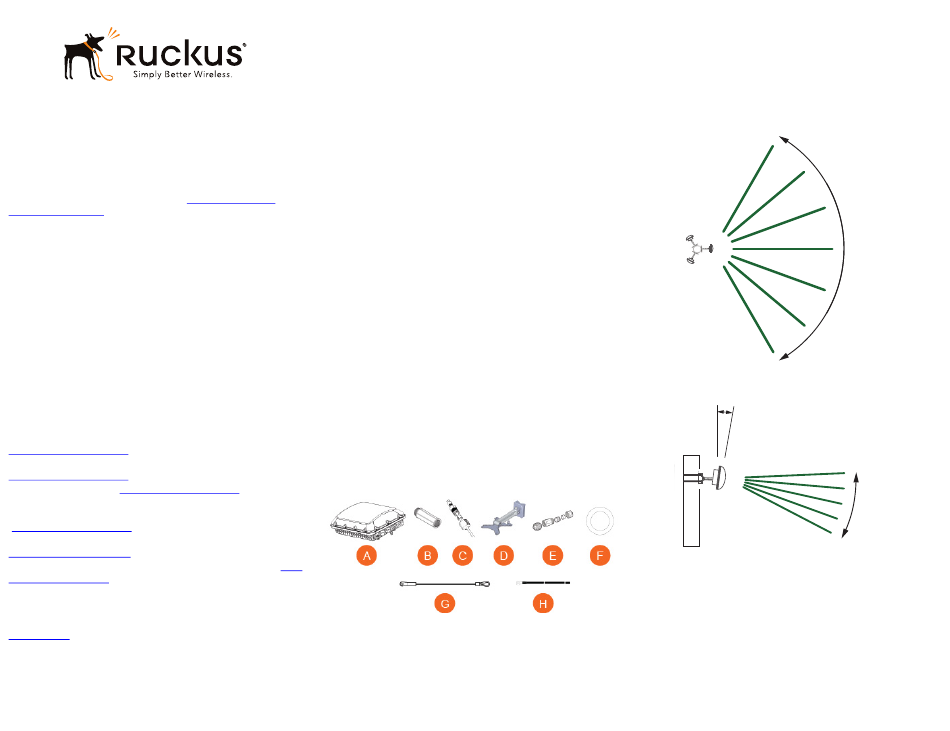

Figure 1: Package Contents
https:/
T U
OOLS NLEASHED
2
or 14- The Unleashed T710s 120-Degree Sector AP is best deployed
where internal-antenna beamforming can provide extended reach
and throughput to a 120-degree coverage area. See Figure 2 for
the azimuth coverage pattern, and see Figure 3 for the elevation
coverage pattern.
Figure 2:
Figure 3:
T710 S A C
S ECTOR NTENNA OVERAGE
Typical AP sector azimuth plane coverage, top view
Extended
120º Reach
Typical AP sector elevation plane coverage, side view
10º - 20º Downtilt
Recommended for
Extended Coverage
Extended
30º Vertical
Beamwidth
