XDS510USB JTAG Emulator has provided many typical emulate configuration. The user can
use them directly without modification.

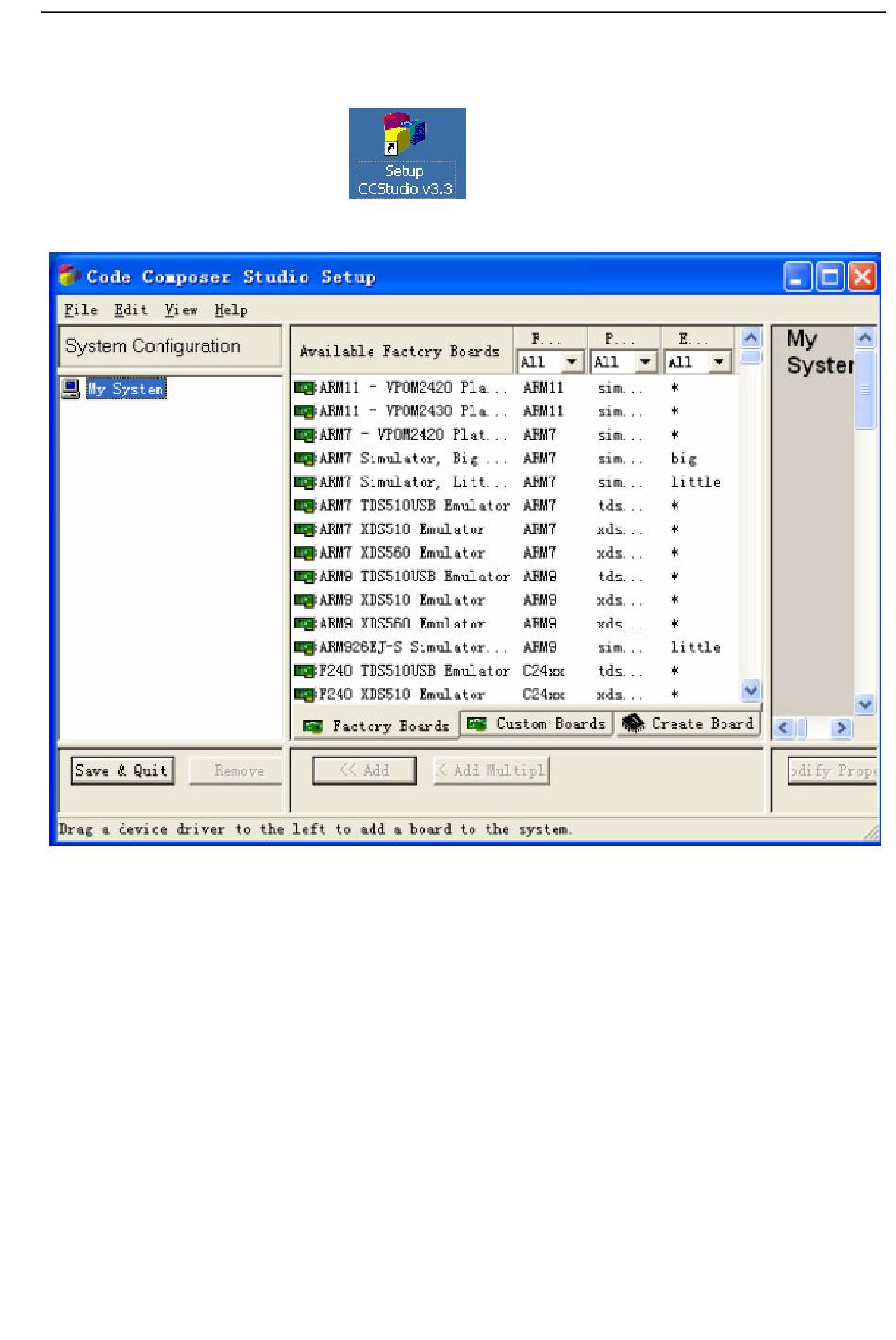

1. Launch the Setup CCStudio v3.3 , the program will display the window as shown
in figure C-1.
Figure C-1
2. Select xds510 emulator in the platform list; Select your DSP type in the family list. The
program will list some typical configuration.
3. Double-click the item according to your target board .The new configuration will appear in
My System list in the System Configuration window.Configure the properties of your target
board and Set the proper gel file. Save the configuration and exit the setup program.
4. Connect your target board to the emulator, then power on the target board, launch the CCS.
Now, you can debug your target system using XDS510USB JTAG Emulator.
