Important Note - Spectrum Digital XDS510USB Installation Manual

(Select "Auto-generator board data file with extra configure", Referring to the chapter "
XDS510USB software",
"cc\bin", Click "Next" button and Click "Finish" button in the next interface. )
It is very important to properly orient the connector on the DSP target system so that Pin
1 on THE cable matches Pin 1 on the DSP target system. Connecting the cable incorrectly
may cause damages on your DSP target system or the XDS510USB Jtag Emulator.
The JTAG interface flat cable comes with a keyed 2x7-socket connector that should match
your target DSP system hardware connector.

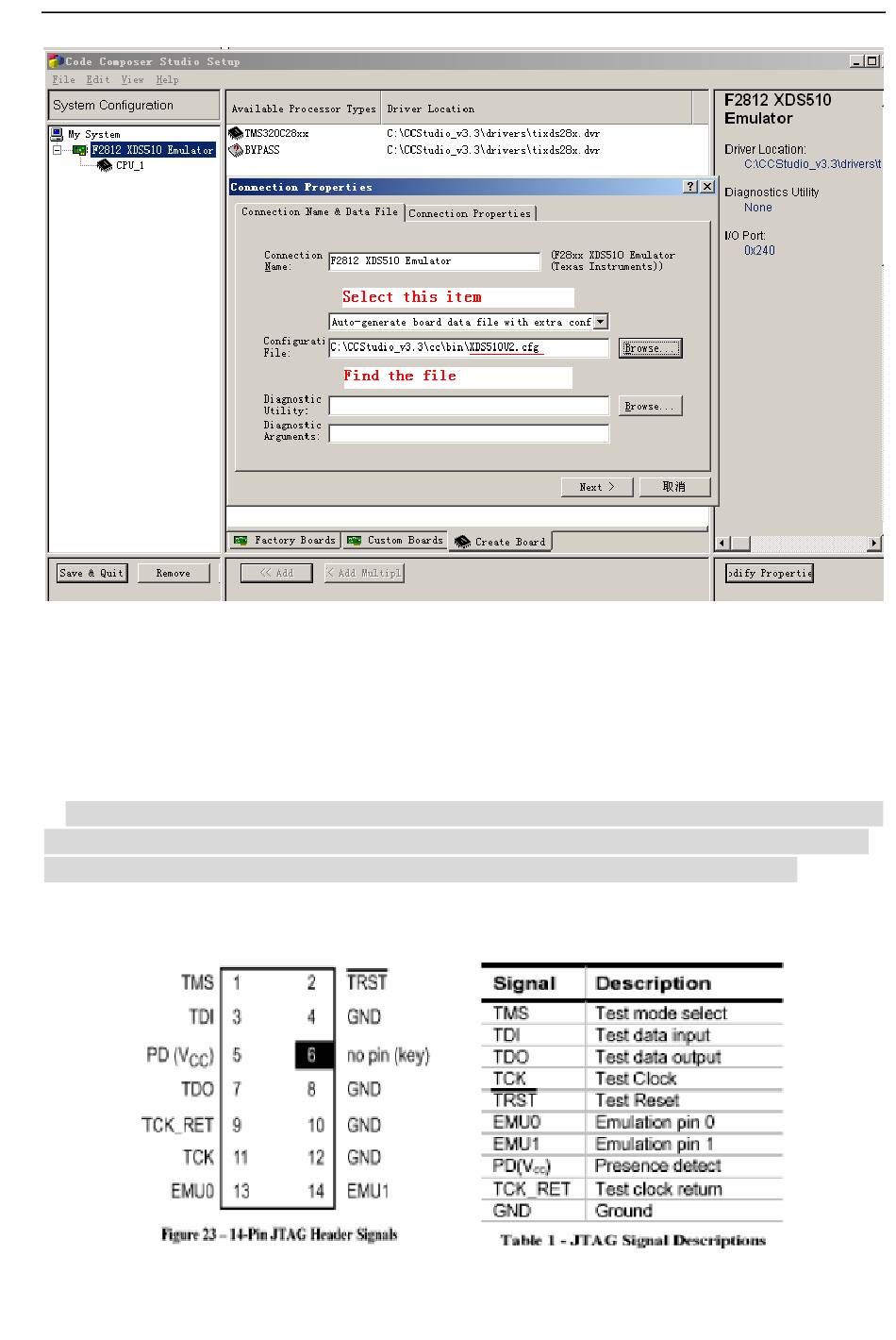

Figure C-4
select proper configuration file(XDS510U2.cfg) which has been included in the

IMPORTANT NOTE

11
Installing the
