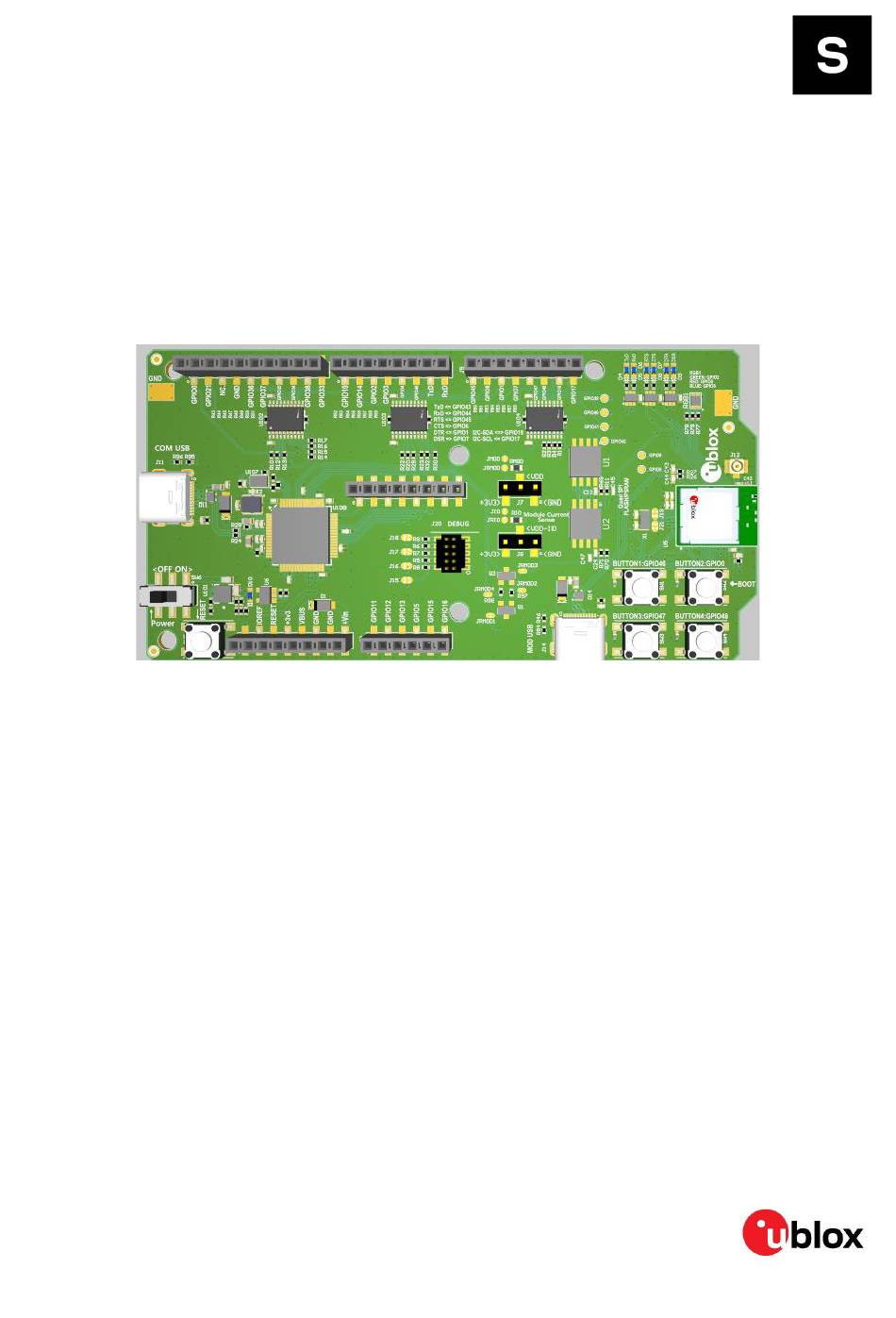

EVK-NORA-W10
Evaluation kit for NORA-W10 series modules
User guide
Abstract
The document describes how to set up the EVK-NORA-W101 and EVK-NORA-W106 evaluation kits
to evaluate the NORA-W10 series modules. To obtain the different options for debugging and the
development capabilities included in the evaluation board see NORA-W10 system integration
manual [2].
UBX-22002764 - R01
C1-Public
www.u-blox.com
Advertisement
Table of Contents
Related Manuals for Ublox EVK-NORA-W10
Summary of Contents for Ublox EVK-NORA-W10
- Page 1 EVK-NORA-W10 Evaluation kit for NORA-W10 series modules User guide Abstract The document describes how to set up the EVK-NORA-W101 and EVK-NORA-W106 evaluation kits to evaluate the NORA-W10 series modules. To obtain the different options for debugging and the development capabilities included in the evaluation board see NORA-W10 system integration manual [2].
-
Page 2: Document Information
EVK-NORA-W1 - User guide Document information Title EVK-NORA-W1 Subtitle Evaluation kit for NORA-W10 series modules Document type User guide Document number UBX-22002764 Revision and date 3-May-2022 Disclosure restriction C1-Public Product status Corresponding content status In development / Objective specification Target values. Revised and supplementary data will be published later. Prototype Engineering sample Advance information... -
Page 3: Table Of Contents
EVK-NORA-W1 - User guide Contents Document information ..........................2 Contents ................................3 Product description ..........................4 1.1 Key features ..............................4 1.2 Items included in kit............................ 5 1.2.1 EVK-NORA-W101 kit contents ......................5 1.2.2 EVK-NORA-W106 kit contents ......................5 Setting up the evaluation board ....................... 6 Hardware description ........................... -
Page 4: Product Description

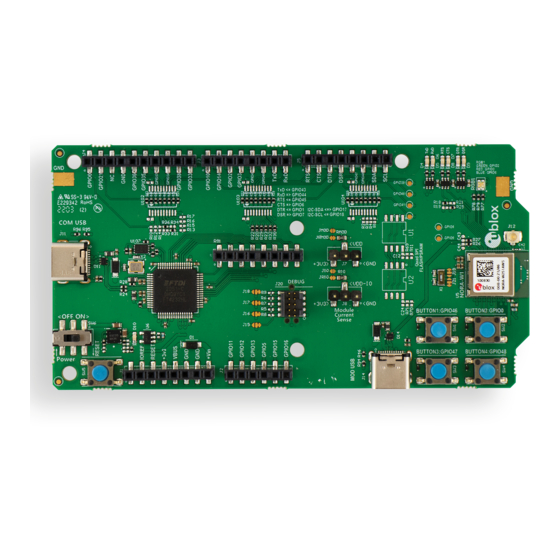

EVK-NORA-W1 - User guide Product description The EVK-NORA-W10 evaluation kit provides stand-alone use of the NORA-W10 series module. All features of the NORA-W10 series modules are easily accessed from the evaluation board. A simple USB connection provides power, programming, and COM ports. Four user buttons are available, as well as a USB peripheral connector, user LEDs, and a reset button. -
Page 5: Items Included In Kit
EVK-NORA-W1 - User guide 1.2 Items included in kit 1.2.1 EVK-NORA-W101 kit contents • EVK-NORA-W10 evaluation board with NORA-W101 module • USB-C to USB-A cable • 2.4 GHz U.FL antenna kit 1.2.2 EVK-NORA-W106 kit contents • EVK-NORA-W10 evaluation board with NORA-W106 module •... -
Page 6: Setting Up The Evaluation Board
EVK-NORA-W1 - User guide Setting up the evaluation board The EVK-NORA-W10 is delivered without any software (open CPU) and the software must be developed by the user. The following devices are applicable: • EVK-NORA-W101 • EVK-NORA-W106 The module is designed to be used only with the applicable software and only compatible software can be flashed on the module. -
Page 7: Hardware Description
EVK-NORA-W1 - User guide Hardware description Design files for the EVK-NORA-W10 PCB may be requested from your local u-blox support team. 3.1 Power The EVK-NORA-W1 has three possible power sources, as listed below: • USB from the debug interface • USB peripheral on the NORA-W1 itself •... -
Page 8: Reset
EVK-NORA-W1 - User guide 3.2 Reset The EVK-NORA-W10 provides a hardware reset to the NORA-W10 module. The Reset button is connected to the module RESETn signal. If the BOOTn button is held down during the EVK power on, it causes the module to enter its bootloader mode. -
Page 9: Buttons
EVK-NORA-W1 - User guide 3.3 Buttons The evaluation board has four user buttons that are active low and connect to ground when pressed. Table 2 associates the button number and corresponding components. The internal pull-up resistor of each NORA-W10 GPIO pin must be enabled for proper operation. Button Switch GPIO... -
Page 10: Leds
EVK-NORA-W1 - User guide 3.4 LEDs A RGB LED is provided on the evaluation board. It is powered by +3V3 and turned on by pulling the associated GPIO low. The RGB LED can be disconnected from the GPIO by removing the associated resistor R78 – R79. The evaluation board is also equipped with LEDs that shows the signal status of UART0 RGB LED Associated GPIO... -
Page 11: Serial Communication
EVK-NORA-W1 - User guide 3.5 Serial communication The evaluation board allows for easy serial communication with the NORA-W10 module and a connected computer. The EVK is using a single FTDI interface IC providing one COM port. • The single port is connected to module UART0 through 1K resistors. This allows for simultaneously connecting UART0 signals to pin sockets J3 and J5. -
Page 12: Khz Low Frequency Clock
EVK-NORA-W1 - User guide Figure 10: The FTDI drawing, 1 port default 3.6 32.768 kHz low frequency clock The evaluation board has a 32.768 kHz crystal connected to the NORA-W10 module to allow use of the external crystal oscillator option If the signals GPIO15/ADC2-CH4 and GPIO16/ADC2-CH5 want to be used, the crystal can be removed from the circuit by opening jumpers J19 and J21 and soldering across the normally open positions. -
Page 13: Current Sensing Headers
Any current sense resistor can be bypassed by soldering the respective jumper: JMOD, or JIO. The default hardware configuration does not require any modification of the current sense headers for the EVK-NORA-W10 to perform properly. Figure 12: Current sensing header layout... -
Page 14: External Jtag Debug Interface
EVK-NORA-W1 - User guide 3.8 External JTAG debug interface External target hardware can be connected to J20 for firmware programming and debug. The JTAG debug interface is implemented, as shown in Figure J20 is implemented with a 2x5, header with 1.27 mm pitch. Figure 13: External J-Link debug interface UBX-22002764 - R01 Hardware description... -
Page 15: Qspi
EVK-NORA-W1 - User guide 3.9 QSPI EVK-NORA-W10 can be populated with a Quad SPI FLASH and a Quad SPI PSRAM. These can be supplied via +3V3 or NORA-W10 module internal VDD-SPI supply. The selection between the two are made by populating either R11 or R69 (U1) and R70 or R71 (U2). -
Page 16: Gpio Jumpers
GPIO nets thus eliminate interference with external circuitry added on the I/O sockets (female). The GPIO jumpers and associated functions are shown on the bottom of the EVK-NORA-W10 PCB. Figure 15: Legend for GPIO jumpers... -
Page 17: Header Pin-Out
Figure 16: EVK-NORA-W10 IO connectors pin-out, buttons and LEDs ⚠ To enable the EVK-NORA-W10 I/O pins to handle 5 V signals the level shifters (U102 – U104, TI TXS0108EPWR) must be populated and IOREF must be supplied with +5 V. If using 3.3 V on the EVK-NORA-W1 I/O pins, the Arduino Uno®... - Page 18 EVK-NORA-W1 - User guide Table 7: Header J1Table 7 Table 12 show the pin assignments of each header. Pin name NORA-W1 pin Function No connection IOREF Level shifter supply voltage RESET ESP-GPIO/AIN6 +3V3 – Supply VBUS Supply Ground Ground +Vin Supply Table 7: Header J1 Pin name...
- Page 19 EVK-NORA-W1 - User guide Pin name NORA-W1 pin Function GPIO0 BOOTn GPIO21 GPIO21 – – GPIO36 FSPI-CLK GPIO37 FSPI-Q GPIO35 FSPI-D GPIO34 FSPI-CS0 GPIO38 FSPI-WP GPIO33 FSPIHD Table 10: Header J4 Pin name NORA-W1 pin Function GPIO45 GPIO6 GPIO1 GPIO7 GPIO47 SPICLK_P GPIO48...
-
Page 20: Appendix
EVK-NORA-W1 - User guide Appendix A Glossary Abbreviation Definition Arm (Advanced RISC Machines) Holdings Central Processing Unit Clear To Send Direct Current DC-DC DC to DC converter Device Firmware Update Evaluation Kit FICR Factory Information Configuration Register GPIO General Purpose Input / Output Low Drop-Out voltage regulator Low Energy Light Emitting Diode... -
Page 21: Related Documentation
EVK-NORA-W1 - User guide Related documentation NORA-W10 data sheet, UBX-21036702 NORA-W10 system integration manual, UBX-22005601 FTDI FT231XQ-R Datasheet, FT231X (ftdichip.com) ☞ For product change notifications and regular updates of u-blox documentation, register on our website, www.u-blox.com. Revision history Revision Date Name Comments 29-04-2022... -
Page 22: Contact
EVK-NORA-W1 - User guide Contact For complete contact information, visit us at www.u-blox.com. u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180 Phone: +65 6734 3811 E-mail:...
