- Page 1 EVK-N2 SARA-N2 series cellular evaluation kits User guide Abstract This guide explains how to set up the EVK-N2 evaluation kits to begin evaluating u-blox SARA-N2 series cellular modules supporting LTE Cat NB1 radio access technology. www.u-blox.com UBX-17005115 - R05...
-
Page 2: Document Information
EVK-N2 - User guide Document information Title EVK-N2 Subtitle SARA-N2 series cellular evaluation kits Document type User guide Document number UBX-17005115 Revision and date 04-Nov-2019 Disclosure restriction This document applies to the following products: Product status Product name Type number Modem version Application version PCN reference... -
Page 3: Table Of Contents
EVK-N2 - User guide Contents Document information ..........................2 Contents ................................3 Starting up ............................... 4 EVK-N2 overview ............................4 1.2 EVK-N2 block diagram ..........................5 1.3 Switches, jumpers and buttons ....................... 6 1.4 LEDs ................................7 1.5 Connectors ..............................8 1.6 EVK-N2 pin out ............................ -
Page 4: Starting Up

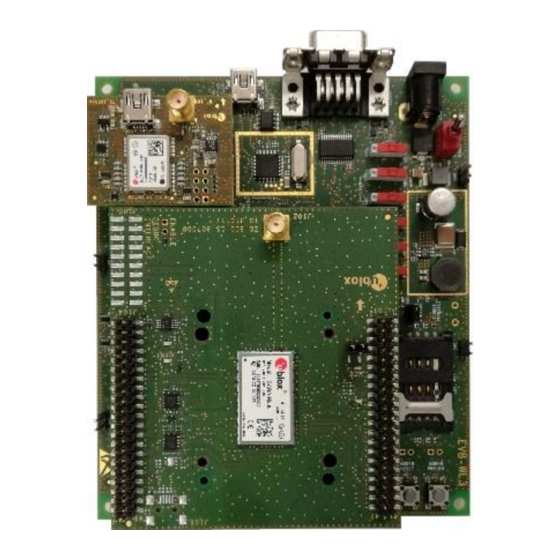

EVK-N2 - User guide Starting up EVK-N2 overview The EVK-N2 evaluation kits are powerful and easy-to-use tools that simplify the evaluation of u-blox SARA-N2 series Narrow Band Internet of Things (NB-IoT) modules. The following evaluation kits are available with u-blox SARA-N2 cellular modules: ... -
Page 5: Evk-N2 Block Diagram
EVK-N2 - User guide EVK-N2 block diagram Figure 2 shows the main interfaces and internal connections of the EVK-N2 evaluation kit: MiniUSB/DB9 On-Board/B2B Cellular RS232 RS232 switch switch (UART) UART Headset jack UART 1.8V / VCC (J500) converter (J303) Level Translator (SW403) (SW401) Cellular USB... -
Page 6: Switches, Jumpers And Buttons
EVK-N2 - User guide 1.3 Switches, jumpers and buttons Function Description Name Board Main Power Switch Power on / off of the whole evaluation kit SW400 EVB-WL3 Cellular VCC Jumper Jumper socket to provide the 3.8 V supply to the cellular module VCC input J404 EVB-WL3 J103 ADP-N2... -
Page 7: Leds
EVK-N2 - User guide 1.4 LEDs Function Description LED # Board Color Main Power Power supply plugged in the 9 - 18 V Power Input DL401 EVB-WL3 Cellular VCC Cellular module supplied. Main Power Switch must be switched on DL400 EVB-WL3 DS147 ADP-N2... -
Page 8: Connectors
EVK-N2 - User guide 1.5 Connectors Function Description Name Board 9 - 18 V Power Input Connector for the AC / DC power adapter of the EVK IEC 60417-5172 J400 EVB-WL3 AC: 100-240 V, 0.8 A, 50-60 Hz / DC: +12 V, 2.5 A Class II equipment SIM card holder SIM card holder... -
Page 9: Evk-N2 Pin Out
EVK-N2 - User guide 1.6 EVK-N2 pin out SARA-N2 module DIL B2B Connector SARA-N2 module DIL B2B Connector Pin N° Signal Name Name / Pin N° Pin N° Signal Name Name / Pin N° J104 Pins 7-10 RSVD Not present RSVD J104 Pin 3 RSVD... -
Page 10: Software Installation
EVK-N2 - User guide Dual-In-Line Board-to-Board connector J104 Dual-In-Line Board-to-Board connector J101 Signal Name Pin N° Pin N° Signal Name Signal Name Pin N° Pin N° Signal Name Not connected Not connected 2 Not connected Reserved_2 Not connected 4 Not connected Not connected Not connected Not connected 6... -
Page 11: Board Setup
EVK-N2 - User guide 1.8 Board setup 1. Insert a SIM card into the SIM card holder (J300 on the EVB). 2. Connect a cellular antenna (provided with the evaluation kit) to the Cellular antenna SMA connector on the ADP-N2 (ANT, RF input/output for transmission and reception of NB-IoT RF signals) 3. - Page 12 EVK-N2 - User guide 8. It is possible to access SARA-N2 module’s secondary / auxiliary UART for diagnostic purpose. To do so: Connect a USB cable to the mini USB connector (Cellular USB, J501 on EVB). LED DL501 lights blue. In this case, two COM ports are enabled with Windows (the numbering of the COM ports can be seen via the Windows Device Manager): SARA-N2 UART interface is available over the first COM port (for AT commands and data)
-
Page 13: Appendix
EVK-N2 - User guide Appendix A Setting up AT terminal applications for communication with EVK-N2 The u-blox m-center cellular module evaluation tool is a powerful platform for evaluating, configuring and testing u-blox cellular products. m-center includes an AT commands terminal for communication with the device and can be downloaded free-of-charge from our website (http://www.u-blox.com). -
Page 14: Bat Commands Examples
EVK-N2 - User guide B AT commands examples For the complete description and syntax of the AT commands supported by SARA-N2 series modules, see the SARA-N2 series AT commands Manual [1]. For detailed AT commands examples for network registration and configuration, context activation, data connection management, SIM management, module interfaces configurations and other settings, see the u-blox NB-IoT system User Guide [3]. -
Page 15: D Current Consumption Measurement
EVK-N2 - User guide D Current consumption measurement Current consumption of SARA-N2 series modules can be measured on the EVK-N2 evaluation kits by removing the jumper socket from the Cellular VCC supply jumper J103 available on the SARA-N2 Adapter Board, as shown in Figure Cellular VCC supply jumper socket (J103) to be removed for SARA-N2 module... -
Page 16: E Glossary
EVK-N2 - User guide E Glossary Abbreviation Definition Adapter Board AT Command Interpreter Software Subsystem, or attention Board-to-Board Connector Clear To Send Display Data Channel Dual-In-Line Evaluation Board Ground GNSS Global Navigation Satellite System GPIO General Purpose Input Output Inter-Integrated Circuit Low Drop-Out Light Emitting Diode Long Term Evolution... -
Page 17: Related Documents
EVK-N2 - User guide Related documents u-blox SARA-N2 / SARA-N3 series AT commands manual, doc. no. UBX-16014887 u-blox SARA-N2 series data sheet, doc. no. UBX-15025564 u-blox NB-IoT system user guide, doc. no. UBX-16017368 u-blox SARA-N2 series system integration manual, doc. no. UBX-17005143 ☞... -
Page 18: Contact
EVK-N2 - User guide Contact For complete contact information, visit us at www.u-blox.com. u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180 Phone: +65 6734 3811 E-mail:...
