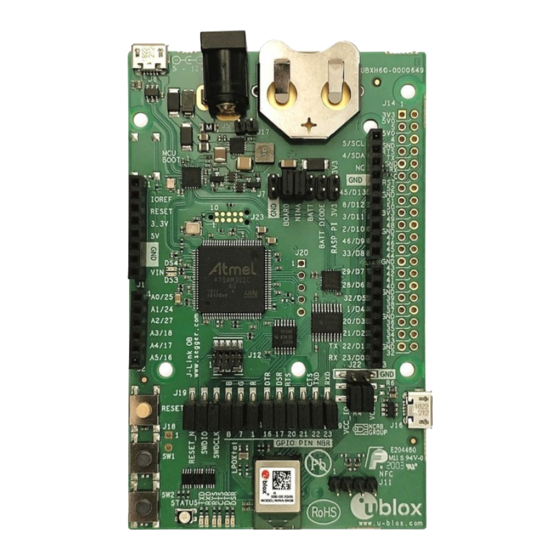

Quick Start EVK-NINA-B3

USB connector

RESET button

(SW0)

User buttons

(SW1, SW2)

Status LED

UART LEDs

UBX-18020772 - R03

U.FL

NINA-B3

connector

module

Software installation

The EVK-NINA-B3 software and docu-

mentation is available at www.u-blox.

com/evk-search. Supported Windows

operating systems are Vista, 7, 8, and 10.

1. Download latest s-center software; run

the executable following the instruc-

tions.

2. When the installation is complete, find

the s-center menu under Windows

Start button, All Programs > u-blox

3. In the s-center menu, you will find the

s-center application, user guide and

uninstall options.

Table of Contents

Do you have a question about the EVK-NINA-B3 and is the answer not in the manual?

Page 1 Quick Start EVK-NINA-B3 Software installation The EVK-NINA-B3 software and docu- mentation is available at www.u-blox. USB connector com/evk-search. Supported Windows operating systems are Vista, 7, 8, and 10. 1. Download latest s-center software; run the executable following the instruc- tions.
Page 2 Driver installation Kit includes 1. Connect the EVK-NINA-B3 board to • EVK-NINA-B3 board your PC using the included USB cable. • NFC cable 2. Verify that the USB drivers are in- • USB cable stalled successfully. • 2.4 GHz external antenna*...
