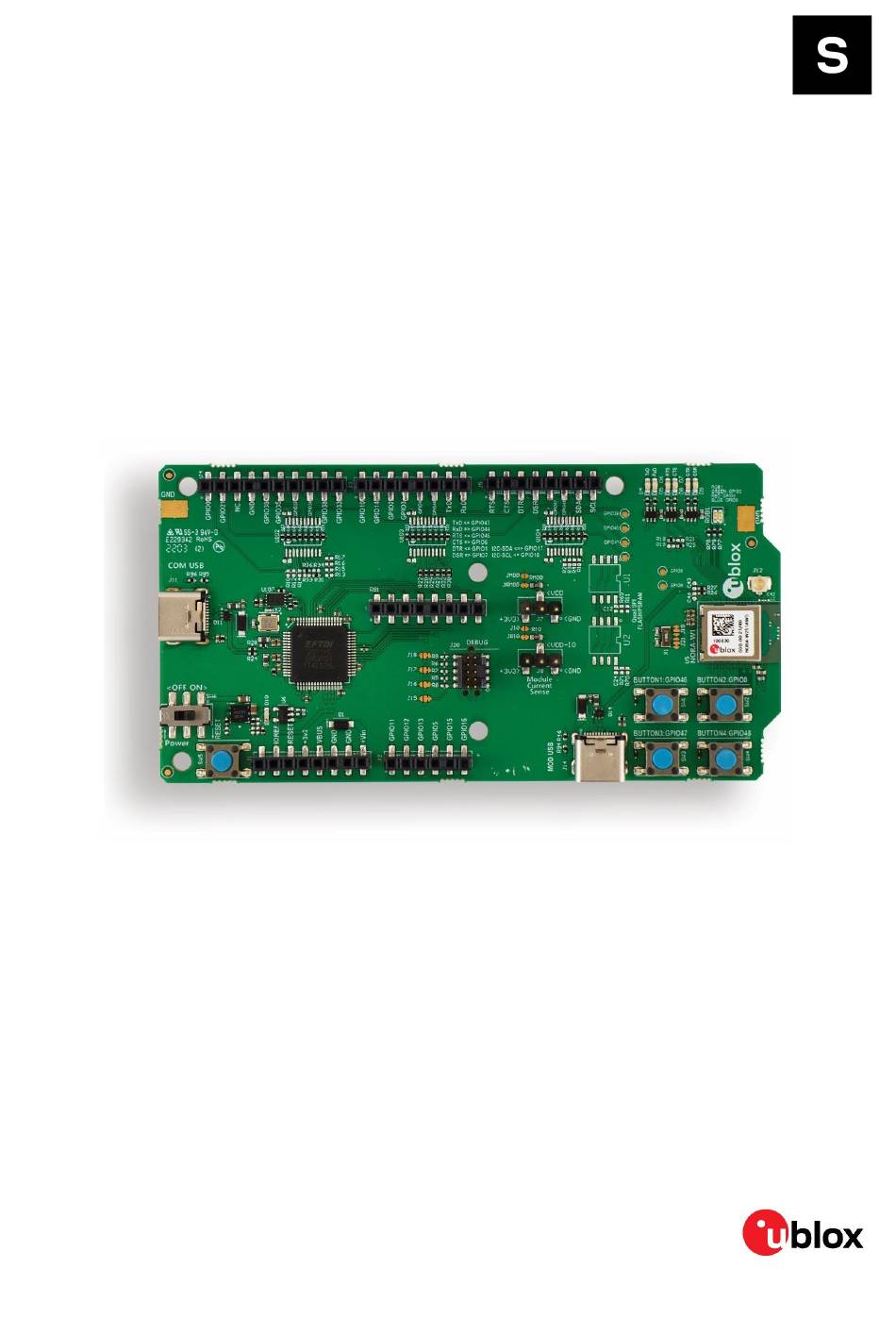

EVK-NORA-W10
Evaluation kit for NORA-W10 series modules
User guide
Abstract
The document describes how to set up and use the EVK-NORA-W101 and EVK-NORA-W106
evaluation kits for prototyping NORA-W10 open CPU, multiradio modules. It also describes the
different options for debugging and the development capabilities included in the evaluation board.
UBX-22002764 - R03
C1-Public
www.u-blox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORA-W10 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ublox NORA-W10 Series

  • Page 1 EVK-NORA-W10 Evaluation kit for NORA-W10 series modules User guide Abstract The document describes how to set up and use the EVK-NORA-W101 and EVK-NORA-W106 evaluation kits for prototyping NORA-W10 open CPU, multiradio modules. It also describes the different options for debugging and the development capabilities included in the evaluation board.
  • Page 2: Document Information

    EVK-NORA-W10 - User guide Document information Title EVK-NORA-W10 Subtitle Evaluation kit for NORA-W10 series modules Document type User guide Document number UBX-22002764 Revision and date 14-Oct-2022 Disclosure restriction C1-Public Product status Corresponding content status In development / Objective specification Target values. Revised and supplementary data will be published later.
  • Page 3: Table Of Contents

    EVK-NORA-W10 - User guide Contents Document information ..........................2 Contents ................................3 Product description ..........................4 1.1 Overview ................................ 4 1.2 Kit includes ..............................4 1.2.1 EVK-NORA-W101 ..........................4 1.2.2 EVK-NORA-W106 ..........................4 1.3 Key features ..............................5 1.4 Block diagram .............................. 5 Setting up the evaluation board .......................
  • Page 4: Product Description

    EVK-NORA-W10 board and includes setup instructions for starting development. All pins and interfaces supported on NORA-W10 series modules are conveniently accessed from the evaluation board. A simple USB connection provides the physical interface for the power, programming, and COM ports.
  • Page 5: Key Features

    EVK-NORA-W10 - User guide 1.3 Key features NORA-W10 Open modules, based on SoC Espressif ESP32-S3, 2.4GHz Wi-Fi and Bluetooth® Low Energy, provide: • IEEE 802.11 b/g/n protocol Wi-Fi subsystem • Bluetooth® LE subsystem supporting Bluetooth 5 and Bluetooth mesh • Xtensa® 32-bit LX7 dual core processor up to 240MHz operation •...
  • Page 6: Setting Up The Evaluation Board

    EVK-NORA-W10 - User guide Setting up the evaluation board The EVK-NORA-W10 is delivered without any software (open CPU) and the software must be developed by the user. The following devices are applicable: • EVK-NORA-W101 • EVK-NORA-W106 Connect the external power supply to the EVK as described in Powering the board.
  • Page 7: Hardware Description

    EVK-NORA-W10 - User guide Hardware description ☞ Design files for the EVK-NORA-W10 PCB are available from your local u-blox support team. 3.1 Overview Figure 3 shows the physical location of the power switch, supported IO signals, LEDs, buttons, and connectors on the EVK-NORA-W10 board.
  • Page 8: Powering The Board

    EVK-NORA-W10 - User guide ⚠ Only if the power protection circuits are left intact can the USB be safely connected at the same time as external power. This makes programming of the module easier. ⚠ The EVK USB type C connectors are only capable of handling 5 V input, 12 V is not allowed. 3.2.1 Powering the board Set the power switch (SW6) “ON”...
  • Page 9: Reset

    EVK-NORA-W10 - User guide 3.3 Reset EVK-NORA-W10 provides a hardware reset to the NORA-W10 module. The Reset button (SW5) is connected to the module RESETn signal. To enter bootloader mode, hold down the Boot button (SW2) during the USB power on. To enter the programming mode, assert a reset in bootloader mode.
  • Page 10 EVK-NORA-W10 - User guide Figure 7: EVK schematic - user buttons Table 1 describes the various user buttons and their relationship with the corresponding GPIO signals and protection diodes shown in Figure 7. For proper operation, the internal pull-up resistor of each NORA-W10 GPIO pin must be enabled.
  • Page 11: Leds

    EVK-NORA-W10 - User guide 3.5 LEDs EVK-NORA-W10 supports eight LEDs: • Power status (D10): Indicates power on the board when lit (green) • UART0 status (D4–D9): Indicates UART0 signal status under GPIO control, as shown in Table • System status (RGB1): Powered by +3V3 and turned on by pulling the associated GPIO low. Disconnect each LED from the GPIO by removing resistors R78–R79, as shown in Table Table 2...
  • Page 12: Serial Communication

    EVK-NORA-W10 - User guide 3.6 Serial communication The COM port is connected to module UART0 through 1 kΩ resistors, which means that multiple UART0 signals can be connected to pin sockets J3 and J5 at the same time. Table 4 shows the function and COM port connections for each module pin.
  • Page 13: Khz Low Frequency Clock

    EVK-NORA-W10 - User guide For easy serial communication with the NORA-W10 module, a computer can connect to the evaluation board to provide a single COM port through a single FTDI, USB-to-UART IC, as shown in Figure 11. The CBUS block is not used. Figure 11: FTDI schematic, 1 port default 3.7 32.768 kHz low frequency clock The evaluation board has a 32.768 kHz crystal connected to the NORA-W10 module that allows use...
  • Page 14: Jtag Debug Interface

    EVK-NORA-W10 - User guide ⚠ Pin 1 of J7 and J8 is connected to GND. To bypass the current sense resistors, RMOD and RIO, solder the respective jumpers JMOD and JRIO. The default hardware configuration does not require any modification of the current-sense headers for the EVK-NORA-W10 to perform properly.
  • Page 15: Qspi Memory

    EVK-NORA-W10 - User guide Figure 15 shows a schematic diagram of the JTAG debug interface. Figure 15: External JTAG debug interface 3.10 QSPI memory A Quad SPI PSRAM can be optionally mounted on EVK board at U2. The current configuration of NORA-W1 already includes an internal flash memory, so U1 should be left unmounted.
  • Page 16: Jumpers

    EVK-NORA-W10 - User guide 3.11 Jumpers The EVK-NORA-W10 printed circuit board (PCB) supports several solder-bridge jumpers for configuring GPIO functions. Most jumpers disconnect on-board components from the GPIO nets and subsequently eliminate interference generated by any external circuits attached to the (female) I/O sockets.
  • Page 17 EVK-NORA-W10 - User guide Table 6 shows the default configuration of “solder-bridge" jumpers. Choose alternative configurations by cutting the bridge and soldering the jumpers in the default positions. Jumper Jumper type Default function Alternate function Solder-bridge Connected to J20 debug connector, JTAG-TMS Cut and close to Test Point GPIO42 Solder-bridge Connected to J20 debug connector, JTAG-TCK Cut and close to Test Point GPIO39 Solder-bridge...
  • Page 18: Header Pin-Out

    EVK-NORA-W10 - User guide 3.12 Header pin-out Figure 14 shows the 2.54 mm pitch sockets exposing the IO signals on the NORA-W10 module. GPIO39 GPIO40 GPIO41 GPIO42 GPIO8 GPIO9 Color code Headers Pin-1 indicator IO-signals Supply voltage Ground connection Figure 19: EVK-NORA-W10 headers ⚠...
  • Page 19 EVK-NORA-W10 - User guide Pin name NORA-W1 pin PT1/PT2 Function GPIO11 GPIO ADC2-CH0 GPIO12 GPIO ADC2-CH1 GPIO13 GPIO ADC2-CH2 GPIO5 GPIO ADC1-CH4 GPIO15 GPIO ADC2-CH4, XTAL-32K-P GPIO16 GPIO ADC2-CH5, XTAL-32K-N Table 9: Header J2, analog IO Pin name NORA-W1 pin Function GPIO10 FSPI-IO4...
  • Page 20 EVK-NORA-W10 - User guide Pin name NORA-W1 pin Function +3V3 Supply JTAG-TMS GPIO42 if J15 is changed Ground JTAG-TCK GPIO-39 if J16 is changed Ground JTAG-TDO GPIO40 if J17 is changed No connection JTAG-TDI GPIO41 if J18 is changed Ground RESET Module reset Table 13: Header J20, External JTAG debug port...
  • Page 21: Appendix

    EVK-NORA-W10 - User guide Appendix A Glossary Abbreviation Definition Central Processing Unit Clear To Send Direct Current DC-DC DC to DC converter Device Firmware Update Evaluation Kit FICR Factory Information Configuration Register GPIO General Purpose Input / Output Low Drop-Out voltage regulator Low Energy Light Emitting Diode Low Frequency...
  • Page 22: Related Documentation

    EVK-NORA-W10 - User guide Related documentation NORA-W10 data sheet, UBX-21036702 NORA-W10 system integration manual, UBX-22005601 FTDI FT231XQ-R Datasheet, FT231X (ftdichip.com) Arduino website, https://www.arduino.cc https://github.com/espressif/esptool ☞ For product change notifications and regular updates of u-blox documentation, register on our website, www.u-blox.com. Revision history Revision Date...
