Summary of Contents for Supero BPN-SAS2-847DR Backplane
Page 1

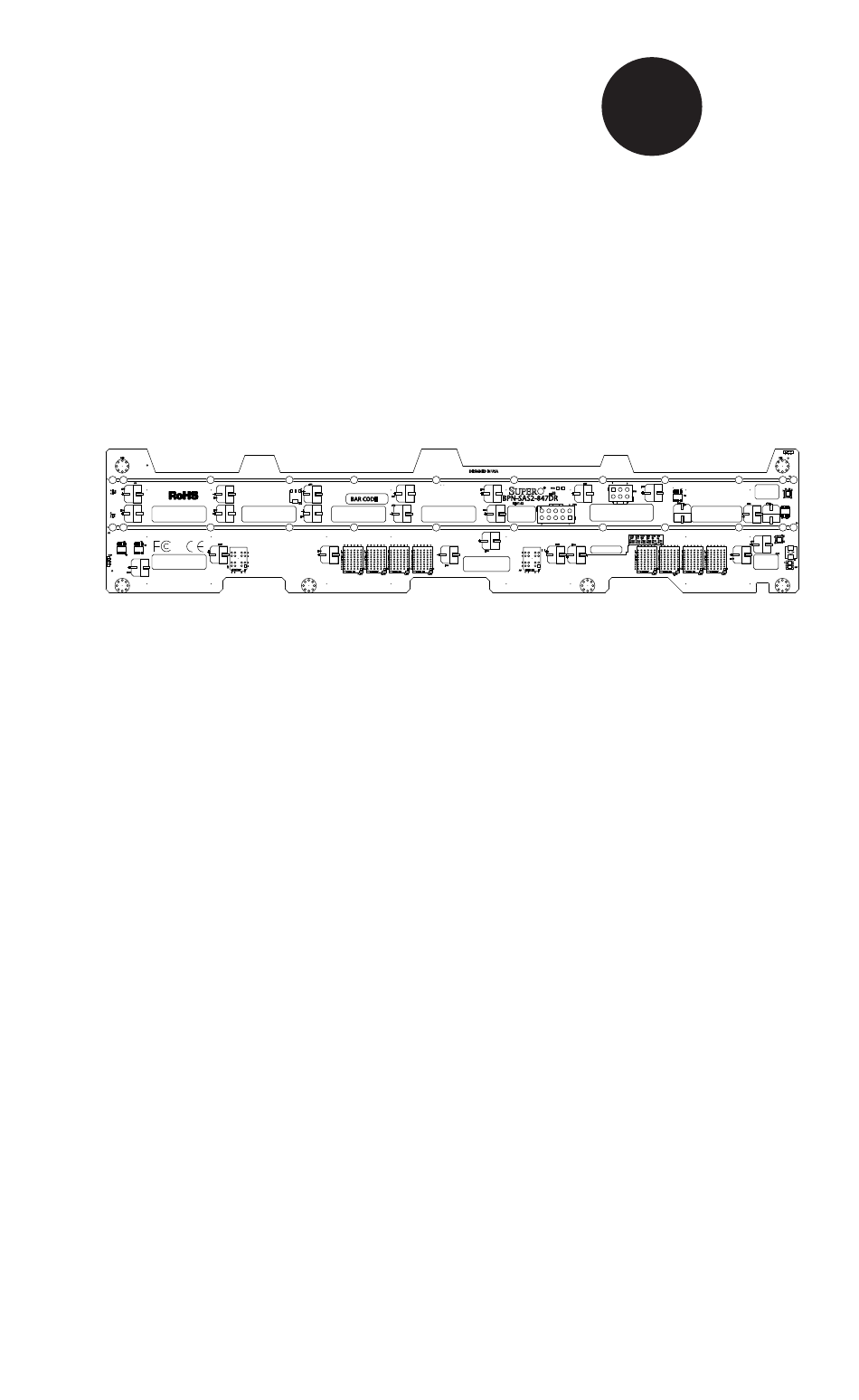

EC46 C195 C191 EC42 EC45 PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT EC48 P_M4 P_M3 P_M2 P_M1 S_M4 S_M3 S_M2 S_M1 BPN-SAS2-847DR Backplane USER'S GUIDE Rev. 1.0...
Page 2
BPN-SAS2-847DR Backplane User’s Guide The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
ESD Safety Guidelines ................... 1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-2 Introduction to the BPN-SAS2-847DR Backplane .......... 1-2 Chapter 2 Connectors, Jumpers and LEDs Overview of the SC847D Chassis Configuration ..........2-1 BPN-SAS2-847DR Backplane Front Connectors ........... 2-2...
Preface Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
Disconnect the power cable before installing or removing any cables from the BPN-SAS2-847DR backplane. • Make sure that the BPN-SAS2-847DR backplane is securely and properly installed on the motherboard to prevent damage to the system due to a power shortage.
Introduction to the BPN-SAS2-847DR Backplane The BPN-SAS2-847DR backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects BPN-SAS2-847DR Revision 1.02, the most current releases available at the time of publication.
Chapter 2: Connectors, Jumpers and LEDs Chapter 2 Connectors, Jumpers and LEDs Overview of the SC847D Chassis Configuration The SC847D chassis configuration consists of the following components: One BPN-SAS2-847DF front backplane, one BPN-SAS2-847DR rear backplane, one or two BPN-EXP-847DF2EL1 front expander card(s), one or two BPN-EXP- 847DR1EL1 rear expander card(s), and a total of thirty-six MCP-280-00024-0N adapter cards in double-depth hard drive carriers.
P_M4 P_M3 P_M2 P_M1 S_M4 S_M3 S_M2 S_M1 Figure 2-2: BPN-SAS2-847DR Backplane Front Connectors Front Connectors 4. Primary Airmax Connectors: P_M1 to P_M4 1. Main Power Connector: JPW1 5. Secondary Expander Power 2. Main Power Connector: JPW2 Connector: J27 3. Primary Expander Power 6.
Page 11
Chapter 2: Connectors, Jumpers and LEDs 1. - 2. Power Connectors These connectors, designated JPW1 and- JPW2 supply power to the backplane. 3. Primary Expander Power Connector Supplies power to the primary expander board. This connector is designated J26. 4. Primary Airmax Connectors These connectors are SAS2 signal con- nectors that connect the backplane and the primary expander board.
Page 13
Chapter 2: Connectors, Jumpers and LEDs Notes...
Page 14
BPN-SAS2-847DR Backplane User's Guide Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
