S
UPER

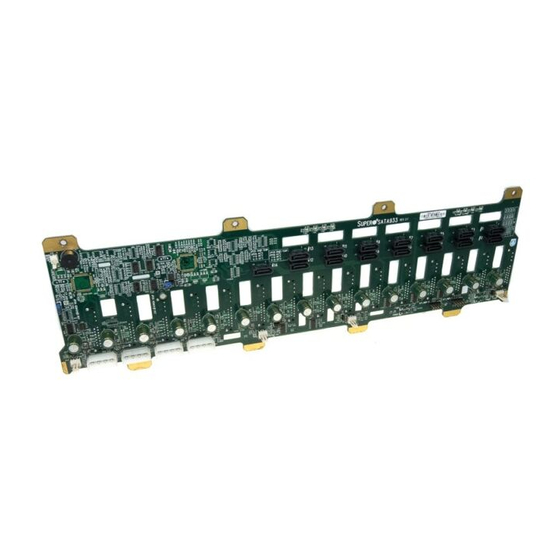

BPN-SATA-933 BACKPLANE
USER'S GUIDE
S S
R R
UPER
UPER
SATA933
SATA933
Rev. 1.0
®
REV 3.00
REV 3.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supero BPN-SATA-933 BACKPLANE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Supero Supero BPN-SATA-933 BACKPLANE

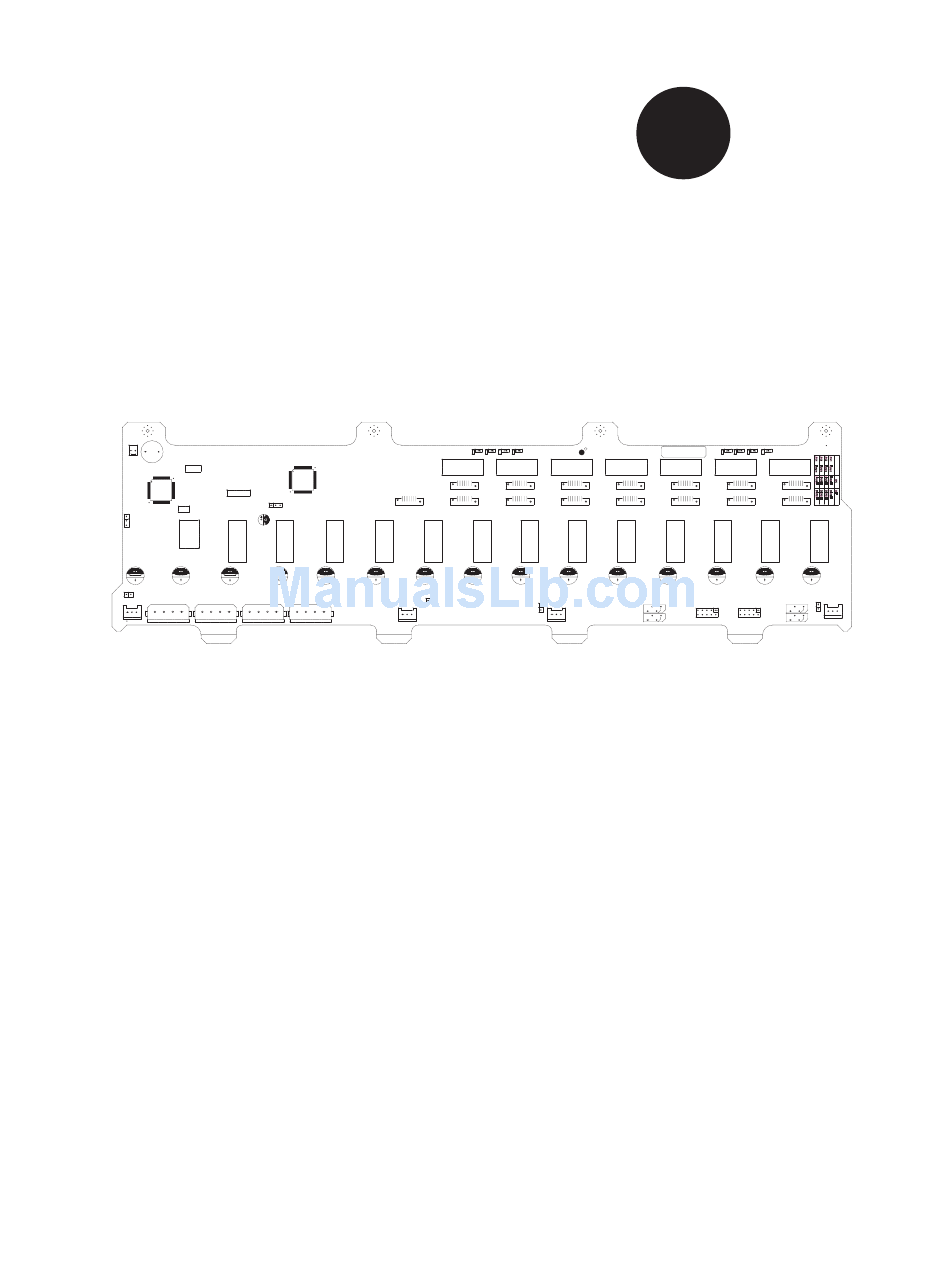

  • Page 1 UPER ® UPER UPER SATA933 SATA933 REV 3.00 REV 3.00 BPN-SATA-933 BACKPLANE USER'S GUIDE Rev. 1.0...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3: Table Of Contents

    Safety Information and Technical Specifi cations Table of Contents Chapter 1 Safety Guidelines ESD Safety Guidelines ................... 1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-2 Chapter 2 Jumper Settings and Pin Defi nitions 2-1 Front Connectors and Jumpers ................2-1 Front Connectors ....................
  • Page 4: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 5: Chapter 1 Safety Guidelines

    Safety Information and Technical Specifi cations Chapter 1 Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 6: An Important Note To Users

    BPN-SATA-933 Backplane User's Guide An Important Note to Users • All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.
  • Page 7: 2-1 Front Connectors And Jumpers

    Safety Information and Technical Specifi cations Chapter 2 Jumper Settings and Pin Defi nitions 2-1 Front Connectors and Jumpers UPER UPER SATA933 SATA933 REV 3.00 REV 3.00 Front Connectors OH#1: JP25 OH#2: JP45 Power Connectors (4-pin): JP10, JP13, JP46 and JP48 Fan Connectors: JP54, JP56, JP58 and JP60 ACT_IN#0-7: JP26 and ACT_IN#8-14: JP47 SATA Port #0: J5...
  • Page 8 BPN-SATA-933 Backplane User's Guide UPER UPER SATA933 SATA933 REV 3.00 REV 3.00 SATA Port #5: J12 SATA Port #6: J14 SATA Port #7: J16 SATA Port #8: J22 SATA Port #9: J23 SATA Port #10: J24 SATA Port #11: J25 SATA Port #12: J26 SATA Port #13: J29 SATA Port #14: J30...
  • Page 9: Front Connector And Pin Defi Nitions

    Safety Information and Technical Specifi cations Front Connector and Pin Defi nitions 1. OH Temperature Connector OH#1: JP25 and OH#2: JP45 Open: 45 degrees Celcius 1-2: 50 degrees Celcius 2-3: 55 degrees Celcius 2. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors designated JP10, 4-Pin Connector (JP10, JP13,...
  • Page 10: Front Jumper Locations And Pin Defi Nitions

    BPN-SATA-933 Backplane User's Guide Front Jumper Locations and Pin Defi nitions JP18 UPER UPER SATA933 SATA933 REV 3.00 REV 3.00 JP61 JP62 JP63 JP64 Socket Settings Socket Socket Setting Note Buzzer Reset JP18 Connected to front panel Press once to disable buzzer; Press twice to enable buzzer Fan Jumper Settings This backplane supports up to four fans.
  • Page 11: Front Led Indicators

    Safety Information and Technical Specifi cations Front LED Indicators FAN FAIL #1 #2 #3 ALARM +12V LEDs LEDs UPER SATA933 UPER SATA933 REV 3.00 REV 3.00 UPER UPER SATA933 SATA933 REV 3.00 REV 3.00 Front Panel LEDs Normal State Specifi cation Fan #1 Fail Failure in Fan #1 Fan #2 Fail...
  • Page 12: Rear Connectors And Led Indicators

    BPN-SATA-933 Backplane User's Guide Rear Connectors and LED Indicators SATA#2 SATA#4 SATA#0 SATA#6 SATA#10 SATA#8 SATA#14 SATA#12 SATA#7 SATA#9 SATA#11 SATA#5 SATA#1 SATA#3 SATA#13 Rear SATA Connectors Rear SATA Drive Connector Number SATA #0 SATA HDD #0 SATA #1 SATA HDD #1 SATA #2 SATA HDD #2 SATA #3...
  • Page 13 Safety Information and Technical Specifi cations FAIL #2 FAIL #4 FAIL #0 FAIL #6 FAIL #10 FAIL #8 FAIL #14 FAIL #12 D14/D7 D18/D19 D12/D5 D22/D23 D27/D32 D25/D30 D42/D39 D40/D37 FAIL #7 FAIL #9 SATA#11 FAIL #5 SATA#13 FAIL #1 FAIL #3 D24/D29 D21/D20...
  • Page 14 BPN-SATA-933 Backplane User's Guide Notes...
